VIPA SPEED7 CPU 313SCDPM - Access to the I;O Area

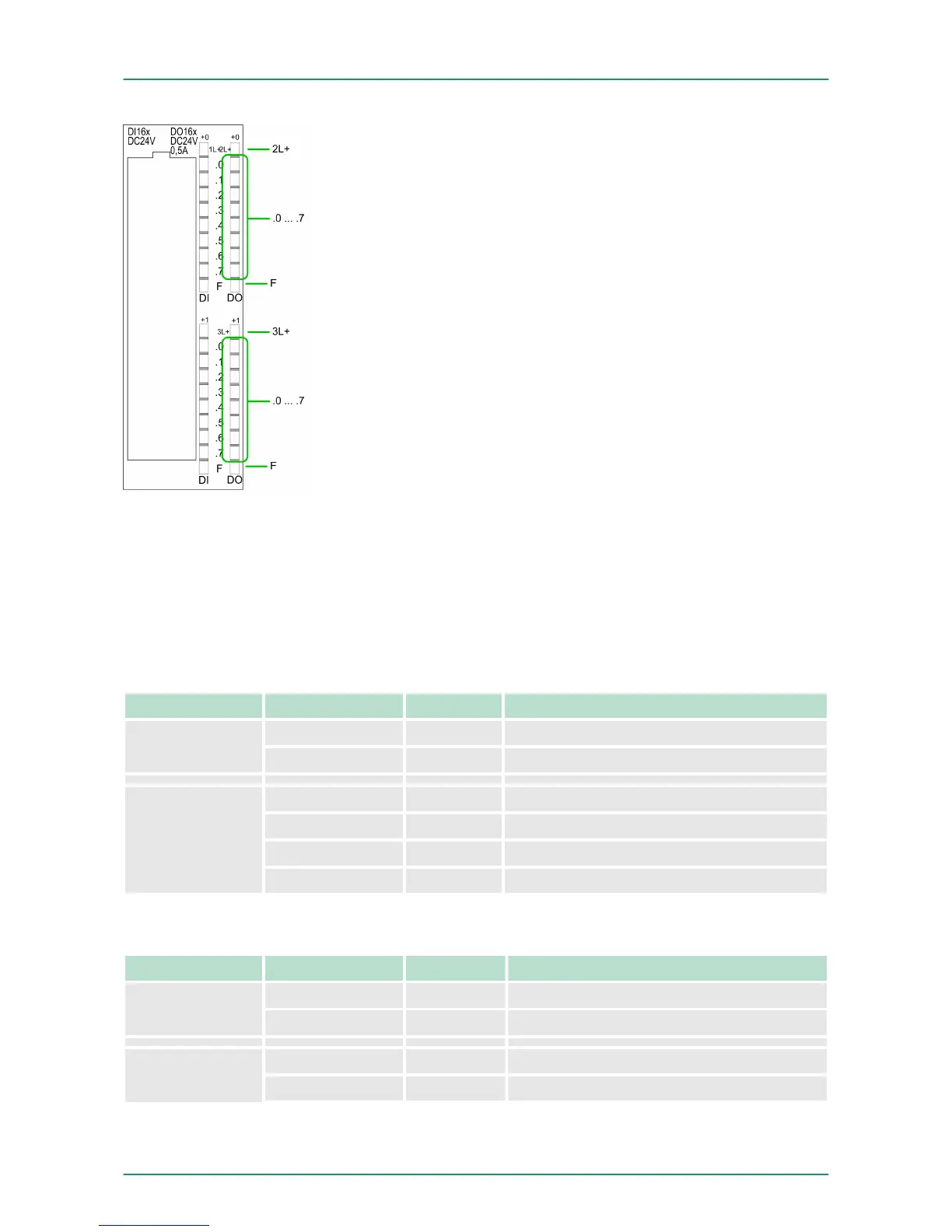

Status indication X11: DO
n 2L+, 3L+
–
LED (green)
Supply voltage available for DO
n .0 ... .7
– LEDs (green)
Q+0.0 ... Q+0.7
Q+1.0 ... Q+1.7
The according LED is on at active output
n F
– LED (red)
Overload or short circuit error
6.4.1 Access to the I/O area
The 313-6CF13 creates in its peripheral area an area for input
respectively output data. Without a hardware configuration the in the
following specified default addresses are used.
6.4.1.1 Address assignment
Sub module Default address Access Assignment
DI16/DO16 124 Byte Digital Input I+0.0 ... I+0.7
125 Byte Digital Input I+1.0 ... I+1.7
Counter 768 DInt Channel 0: Count value / Frequency value
772 DInt Channel 1: Count value / Frequency value
776 DInt Channel 2: Count value / Frequency value
780 DInt reserved
Sub module Default address Access Assignment
DI16/DO16 124 Byte Digital Output Q+0.0 ... Q+0.7
125 Byte Digital Output Q+1.0 ... Q+1.7
Counter 768 DWort reserved
772 DWort reserved
Input range
Output range
VIPA System 300S Deployment I/O periphery
Digital part > Access to the I/O area
