5.11 Access to the internal Web page
The Ethernet PG/OP channel provides a web page that you may
access via an Internet browser by its IP address. The web page con-
tains information about firmware versions, current cycle times etc.
The current content of the web page is stored on MMC by means of
the MMC-Cmd WEBPAGE.
Ä
Chapter 5.19 ‘MMC-Cmd - Auto com-
mands’ on page 77
A PG/OP channel connection should be established between PC with
Internet browser and CPU 313-6CF13. This may be tested by Ping to
the IP address of the PG/OP channel.
The access takes place via the IP address of the Ethernet PG/OP
channel. The web page only serves for information output. The moni-
tored values are not alterable.

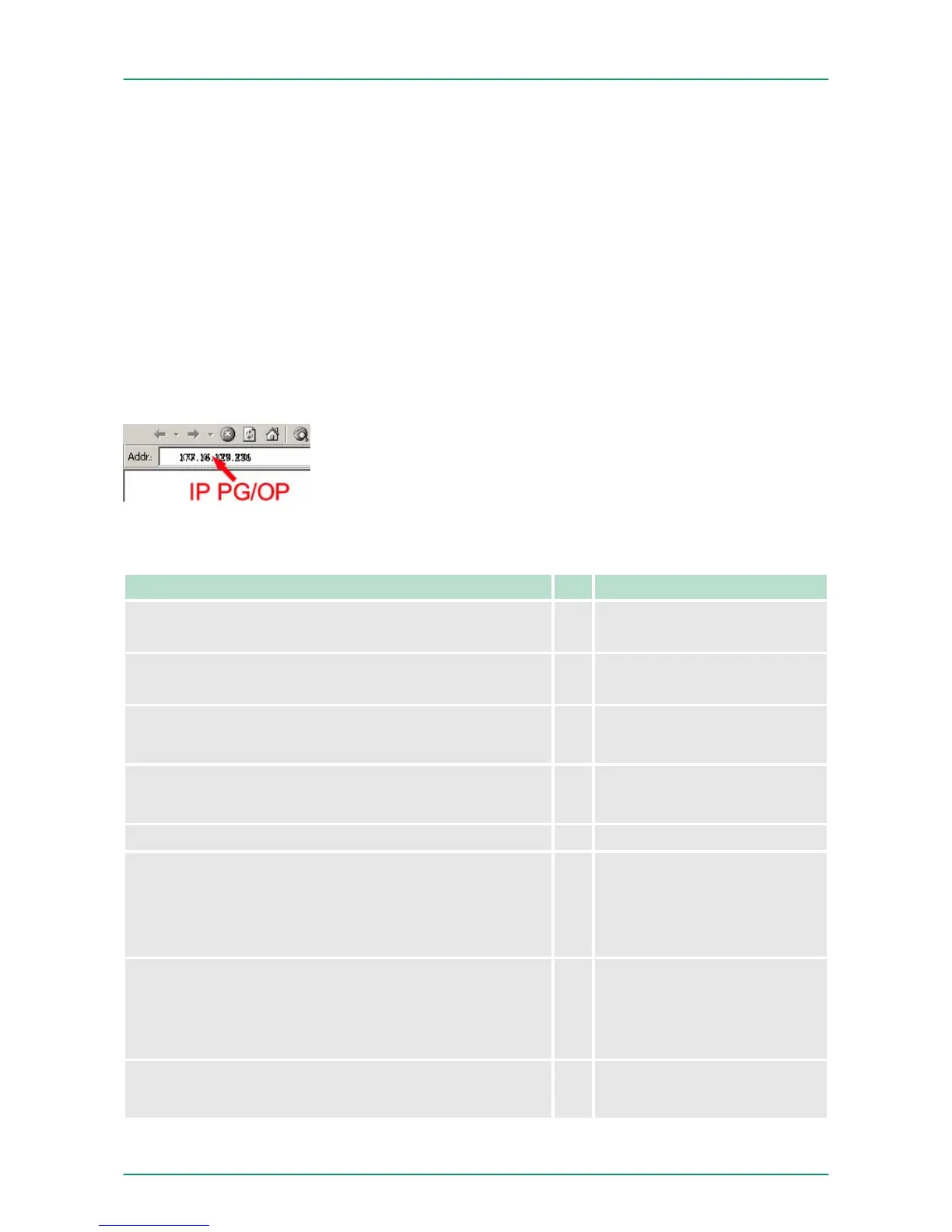

CPU with Ethernet-PG/OP
Slot 100
VIPA 313-6CF13 V.... Px000137.pkg,
SERIALNUMBER 02119
Order no., firmware vers.,
package, serial no.
SUPPORTDATA :
PRODUCT V3118, HARDWARE ...
Information for support
Memorysizes (Bytes) : LoadMem : 524288, Work-Mem-
Code : 248968, WorkMemData : 248968
Information about memory con-
figuration, load memory, work
memory (code/data)
OnBoardEthernet : MacAddress : 0020D50144C1, IP-
Address : 172.20.120.62, SubnetMask : 255.255.255.0,
Gateway : 172.20.120.62
Ethernet PG/OP: Addresses
Cpu state : Run CPU state
FunctionRS485 X2/COM1: MPI
FunctionRS485 X3/COM2: DPM-async
Operating mode RS485
n MPI: MPI operation
n DPM: DP master operation
or
PtP: point to point operation
Cycletime [microseconds] : min=0 cur=770 ave=750
max=878
CPU cycle time:
min = minimal
cur = current
max = maximal
MCC-Trial-Time: 70:23 Remaining time in hh:mm for
deactivation of the expansion
memory if MCC is removed.
Access to the web page
Requirements
Web page
VIPA System 300SDeployment CPU 313-6CF13
Access to the internal Web page
HB140 | CPU-SC | 313-6CF13 | GB | 15-50 64
