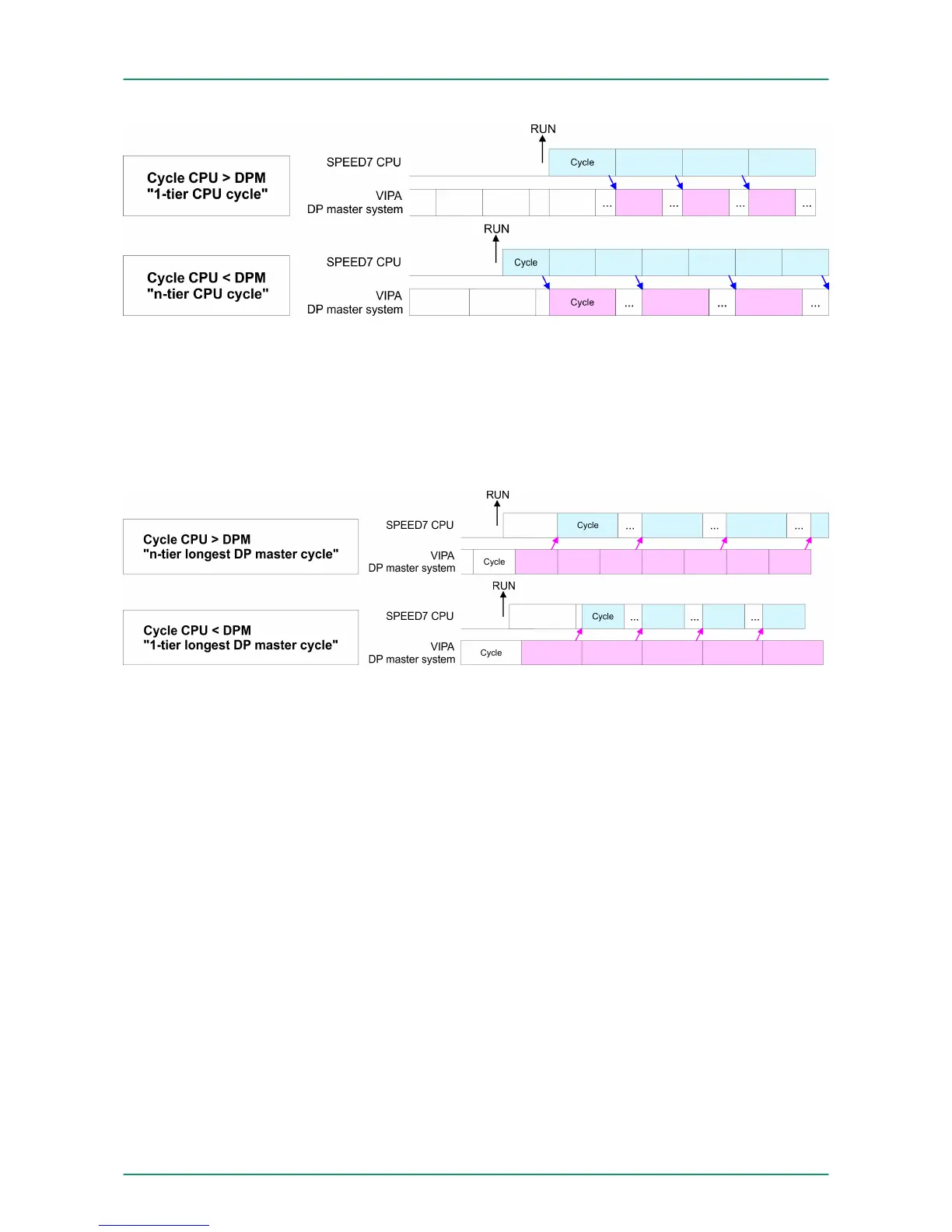

In the operating mode PROFIBUS DP SyncIn the CPU cycle is
synchronized to the cycle of the VIPA PROFIBUS DP master system.
Here the CPU cycle depends on the VIPA DP master with the longest
cycle time. If the CPU gets into RUN it is synchronized with each
PROFIBUS DP master. As soon as the CPU cycle is passed, it waits
for the next synchronization impulse with input data of the DP master
system. If necessary the Scan Cycle Monitoring Time of the CPU
should be increased.
5.9.2.2 Token Watch
By presetting the PROFIBUS bus parameters within the hardware
configuration a token time for the PROFIBUS results. The token time
defines the duration until the token reaches the DP master again. Per
default this time is supervised. Due to this monitoring disturbances on
the bus can affect a reboot of the DP master. Here with the parameter
Token Watch the monitoring of the token time can be switched off
respectively on.
Default: On
5.10
Project transfer
There are the following possibilities for project transfer into the CPU:
n Transfer via MPI/PROFIBUS
n Transfer via Ethernet
n Transfer via MMC
5.10.1 Transfer via MPI/PROFIBUS
For transfer via MPI/PROFIBUS there is the following interface:
PROFIBUS-DP SyncIn
Overview
General
VIPA System 300SDeployment CPU 313-6CF13
Project transfer > Transfer via MPI/PROFIBUS
HB140 | CPU-SC | 313-6CF13 | GB | 15-50 60
