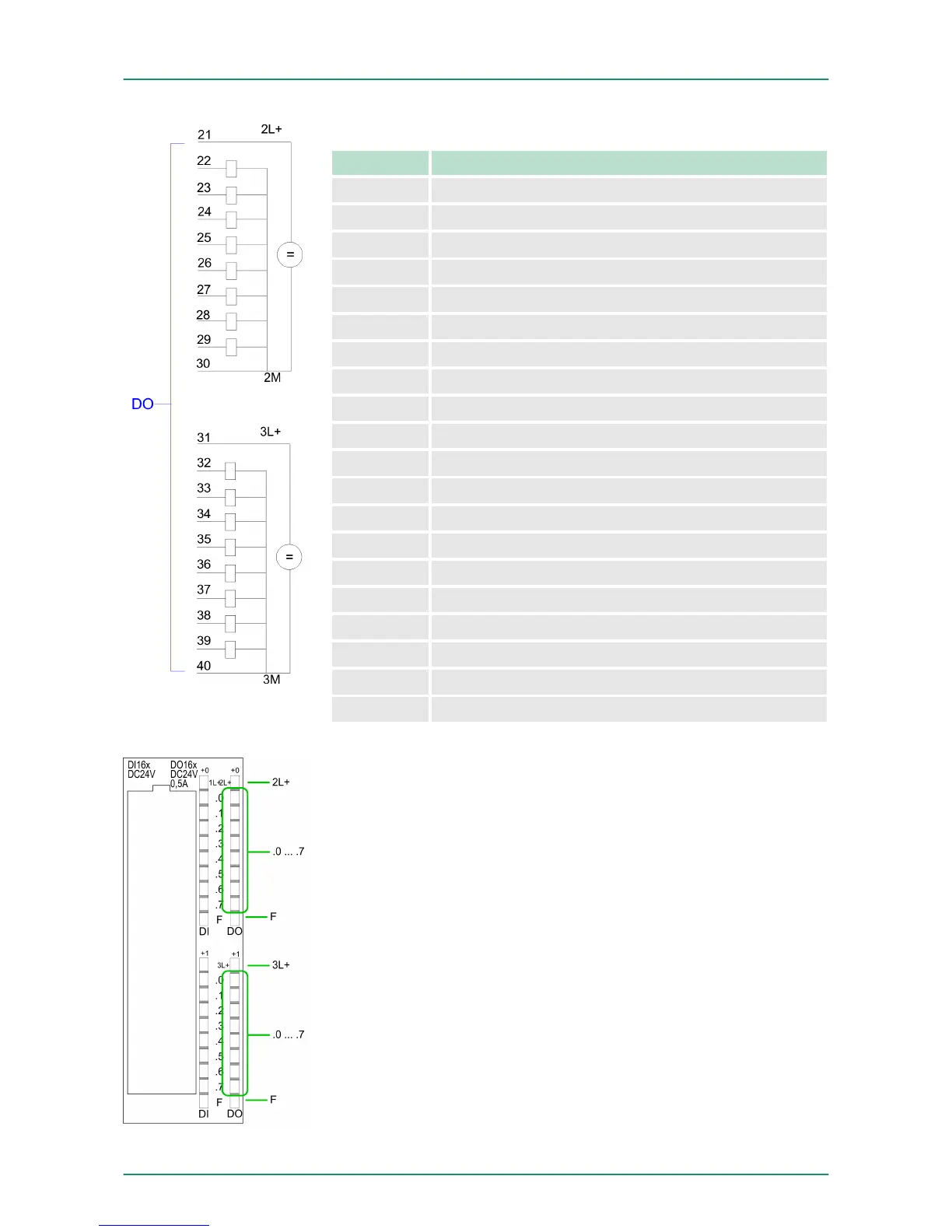

Pin assignment X11: DO
Pin Assignment
21 2L+ Power supply +DC 24V
22 O+0.0 / Channel 0 Output
23 O+0.1 / Channel 1 Output
24 Q+0.2 / Channel 2 Output
25 Q+0.3
26 Q+0.4
27 Q+0.5
28 Q+0.6
29 Q+0.7
30 Ground 2M DO
31 3L+ Power supply +DC 24V
32 Q+1.0
33 Q+1.1
34 Q+1.2
35 Q+1.3
36 Q+1.4
37 Q+1.5
38 Q+1.6
39 Q+1.7
40 Ground 3M DO
Status indication X11: DO
n 2L+, 3L+
–
LED (green)
Supply voltage available for DO
n .0 ... .7
– LEDs (green)
Q+0.0 ... Q+0.7
Q+1.0 ... Q+1.7
The according LED is on at active output
n F
– LED (red)
Overload or short circuit error
