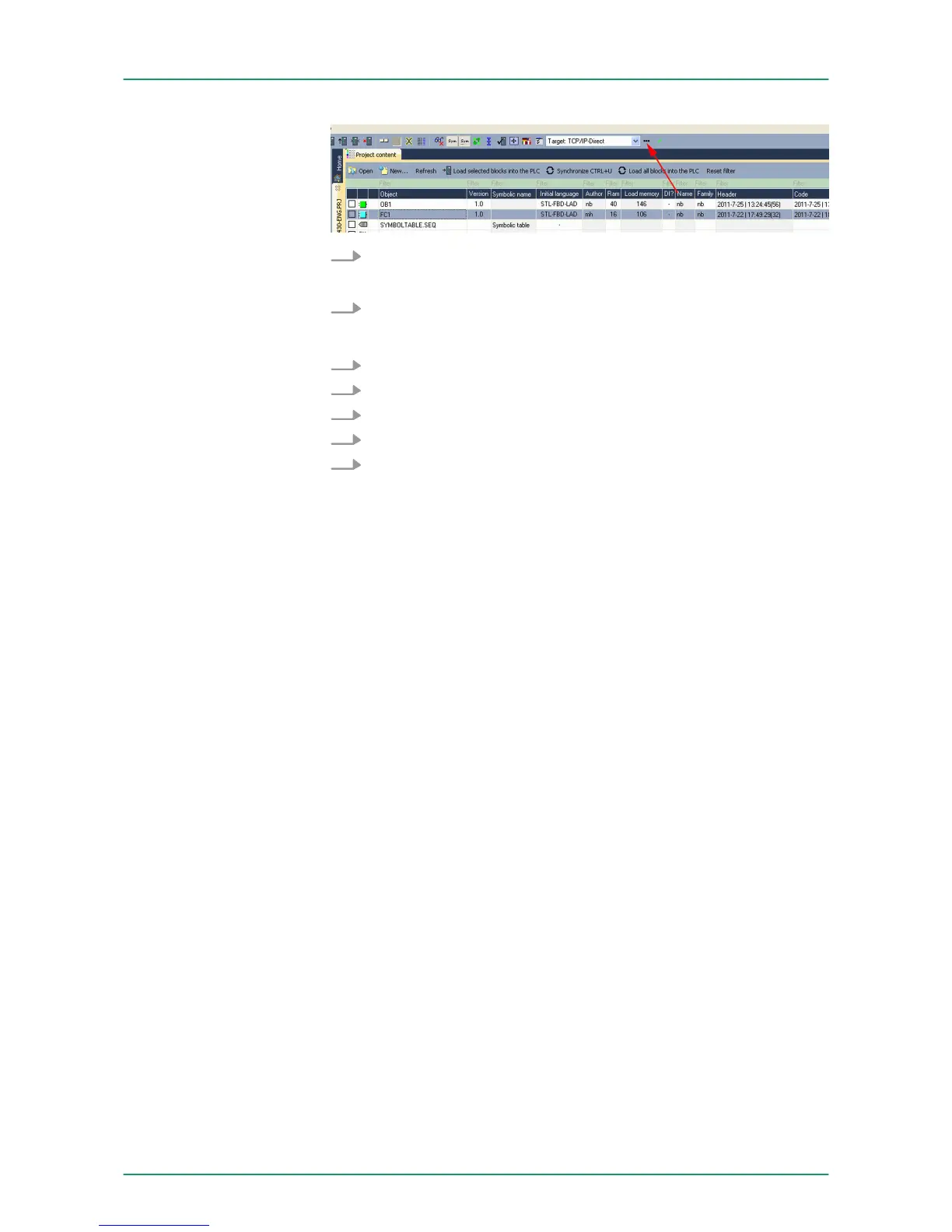

4. Click at [Determining accessible nodes].
ð
After a waiting time every accessible station is listed.
5. Choose your CPU, which was provided with TCP/IP address
parameters during the hardware configuration and click to [Con-
firm].
6. Close the dialog ‘Ethernet properties’ with [OK].
7.
Transfer your project to your CPU with ‘PLC è Send all blocks
’.
8. Switch your CPU to RUN state.
9. Open the OB 1 by double click.
10. Change the value of one variable, save the OB 1 and transfer it
to the CPU.
ð
According to your settings the process image changes
immediately. The status of your blocks may be displayed
with ‘Block è Monitoring On/Off’.
VIPA System 300SWinPLC7
Example project engineering > Transfer PLC program to CPU and its execution
HB140 | CPU-SC | 313-6CF13 | GB | 15-50 196
