Item 3 Physical Port Prioritization

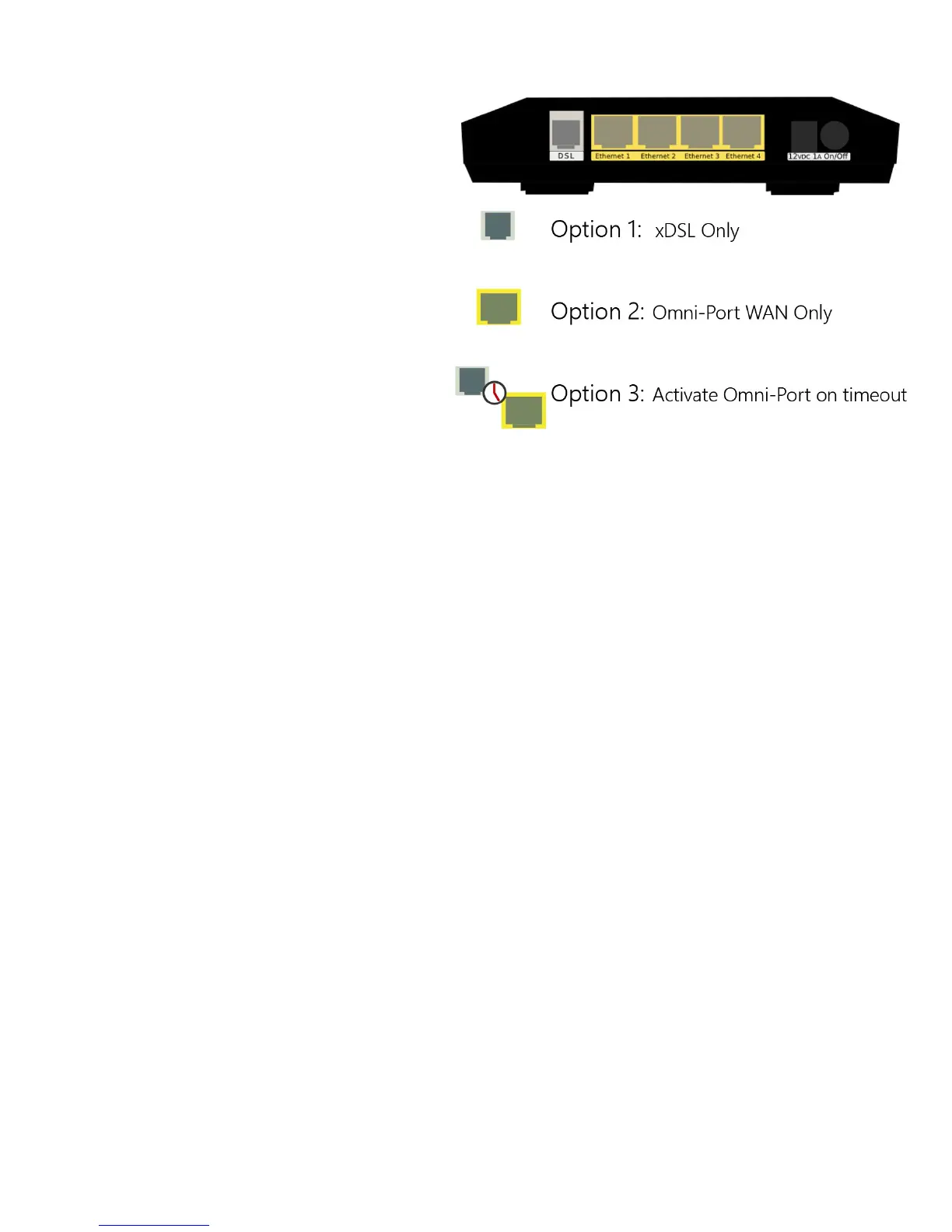

3.1 There are three Physical WAN Options
xDSL Operation
This operation only allows the xDSL port
to be used for WAN operation.
This will not convert the “Omni-Port” to
LAN mode if an “ETH” Interface is enabled
Omni-Port WAN Operation
This operation only allows WAN Service
through the Omni-Port.
This will not remove created xDSL
Services
WAN Time-out Operation
If xDSL signal is not detected, within a
specified amount of time (default 120
seconds), the created Omni-Port WAN
Interface will be activated.
VisionNet M504 / M505N R3 Page 13 of 62 User Manual Rev 0.1c
