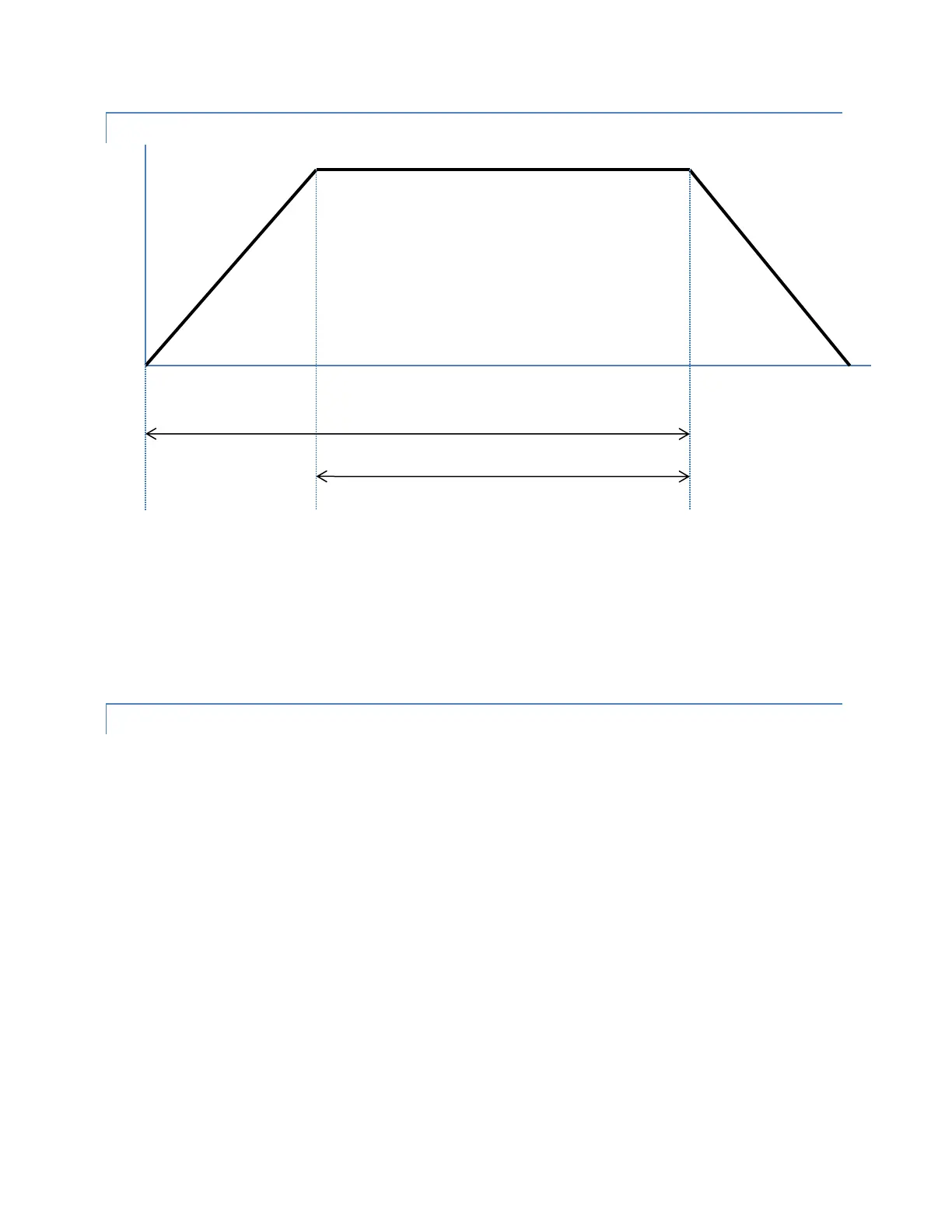

ACTIONS WHILE RUNNING
• On any failure the step is immediately aborted, and optionally the entire test sequence may be aborted.
• For the ACez type, the discharge period is of zero length, arc detection is not enabled and only RMS
leakage limits may be specified.
• If the step is the MANUAL sequence, then the user may manually change the voltage and/or frequency
during the dwell period.
• For the ACW or ACCAP type, the discharge period can be programmed to be skipped and the next step
started at this steps’ dwell voltage level if the next step is an ACez, ACW or ACCAP type.
CONFIGURING
An example ACez type menu is as follows –
Seq 1 Step 1 ACez
LEVEL:1500.0V 60.0Hz
SOURCE: INT
RAMP: 1.00sec
DWELL: 30.0sec
Lim: 0n-35.00mA
ON FAIL: ABORT SEQ
An example ACW type menu is as follows –
Seq 1 Step 1 ACW
LEVEL:1500.0V 60.0Hz
SOURCE: INT
BREAKDOWN: 49.50mApk
RAMP: 1.00sec
DWELL: 30.0sec
Test 1: RMS
Lim: 0n-35.00mA
Test 2: INPHS
Lim: 0n-5.000mA
ARC DETECT:4us 10mA
To Next Page
