— 16 —

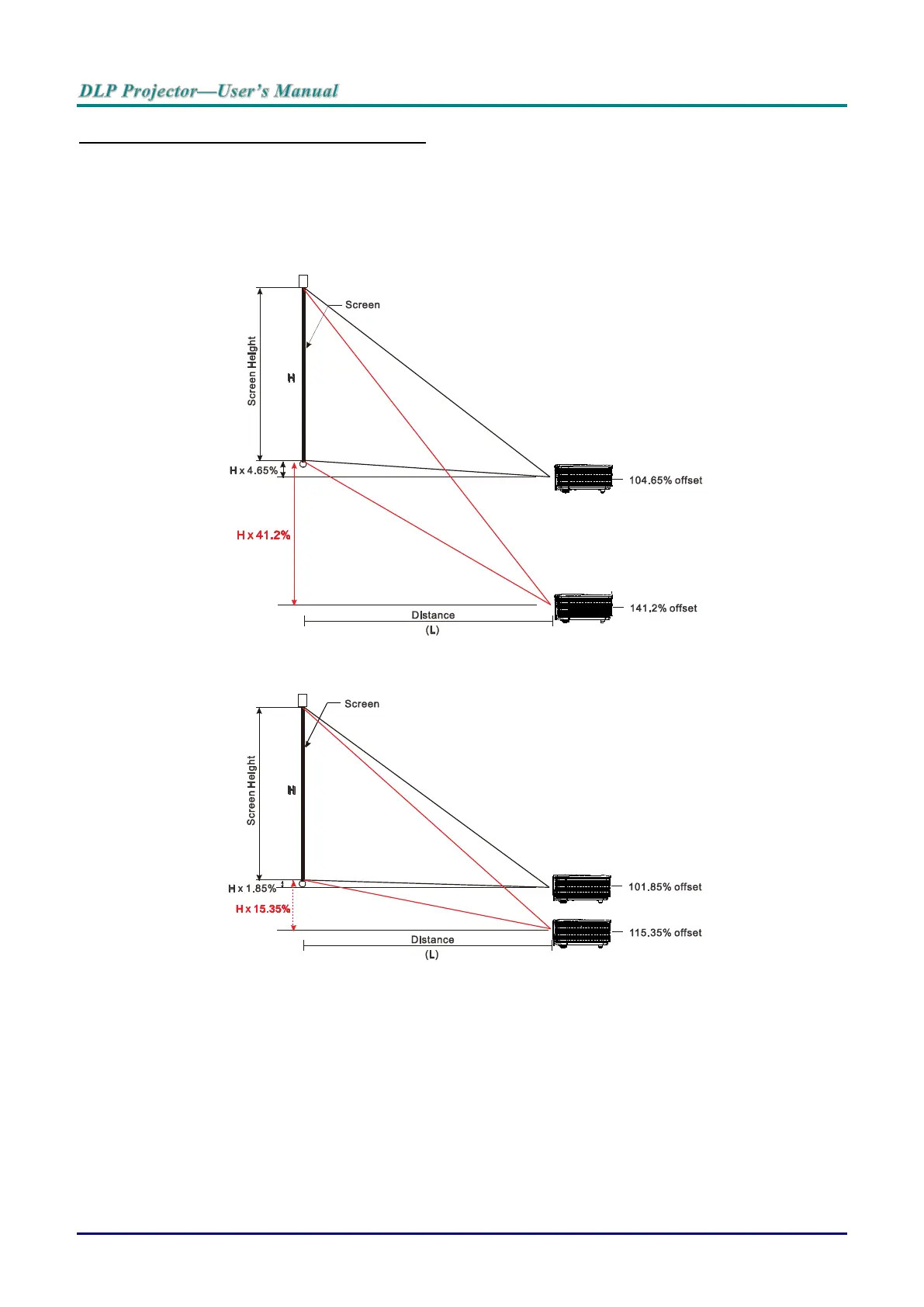

Adjusting the vertical image position
The vertical image height can be adjusted between 141.2% and 104.65% for WXGA, 115.35% and
101.85% for XGA of image height. Note that the maximum vertical image height adjustment can be limited
by the horizontal image position. For example it is not possible to achieve the maximum vertical image
position height detailed above if the horizontal image position is at maximum.
WXGA
XGA
