Vivitek DW3321 - Horizontal Image Position Adjustment

– 17 –

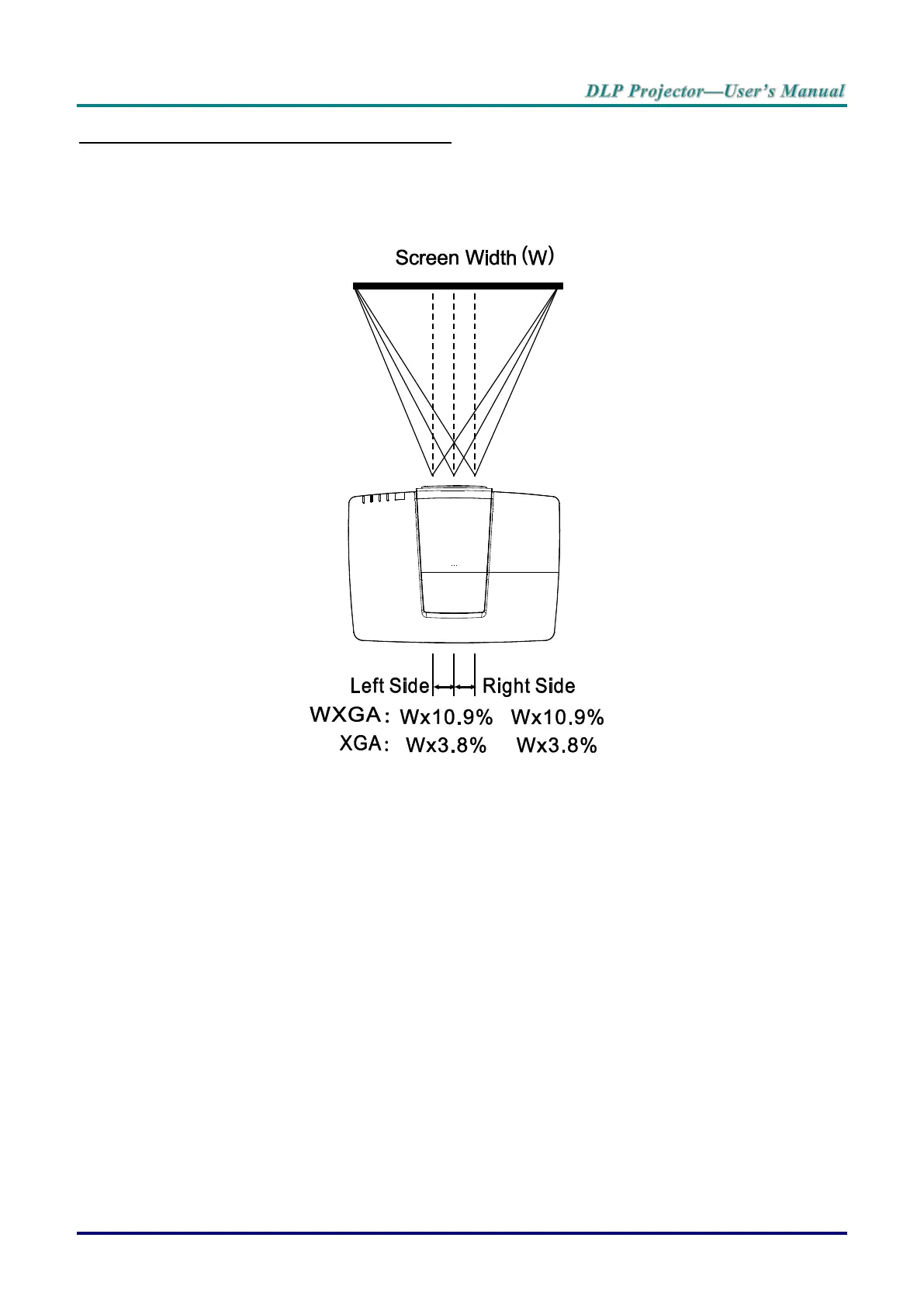

Adjusting the horizontal image position
With the lens in the center position the horizontal image position can be adjusted to the left or right by up
to a maximum of 10.9% for WXGA, 3.8% for XGA of the image width. Note that the maximum horizontal
image height adjustment can be limited by the vertical image position. For example it is not possible to
achieve the maximum horizontal image position if the vertical image position is at maximum.
