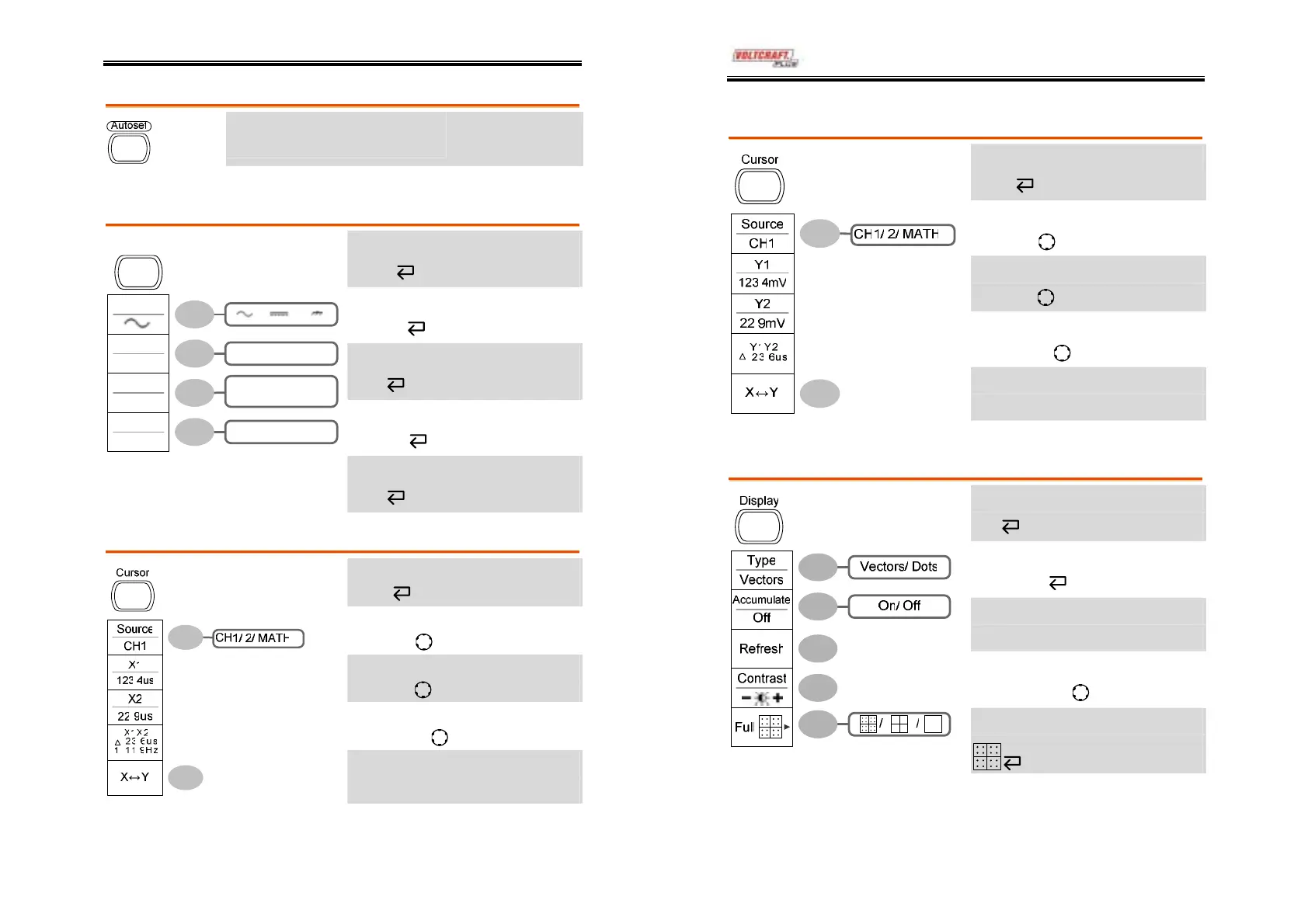

VOLTCRAFT PLUS DSO 4022 - Autoset Key; CH1;2 Key; Cursor Key 1;2; Display Key

19
Autoset key
Automatically find signal
and set scale
Autoset
CH1/2 key
Turn channel on/off
CH 1/2
Select coupling mode
Coupling
Invert waveform
Invert
Turn bandwidth limit on/off
BW Limit
Select probe attenuation factor
On/ Off
/ /
On/ Off
(GDS-1102/1062)
x1/ x10/ x100
Coupling
Invert
Off
BW Limit
Off
Probe
x1
CH 1
Probe
Cursor key 1/2
Turn cursor on/off
Cursor
Move X1 cursor
X1→ VAR
Move X2 cursor
X2→ VAR
Move both X1 and X2 cursor
X1X2→ VAR
Switch to Y cursor
X↔Y
DSO-4000 User Manual
20
Cursor key 2/2
Turn cursor on/off
Cursor
Move Y1 cursor
Y1→ VAR
Move Y2 cursor
Y2→ VAR
Move both Y1 and Y2 cursor
Y1Y2→ VAR
Switch to X cursor
X↔Y
Display key
Select waveform type
Type
Waveform accumulate On/Off
Accumulate
Refresh accumulation
Refresh
Set display contrast
Contrast→VAR
Select display grid
