VOLTCRAFT PLUS DSO 4022 - Saving the Display Image; Saving All (Panel Settings, Display Image, Waveform)

81
Ref
Internal reference waveform, A/B
6. Press Save to confirm
saving. When completed, a
message appears at the
bottom of the display.
Save
Note
The file will not be saved if the
power is turned off or the SD card is
disconnected before completion.
File utilities
To edit SD card contents
(create/ delete/ rename files
and folders), press File Utilities.
For details, see page74.

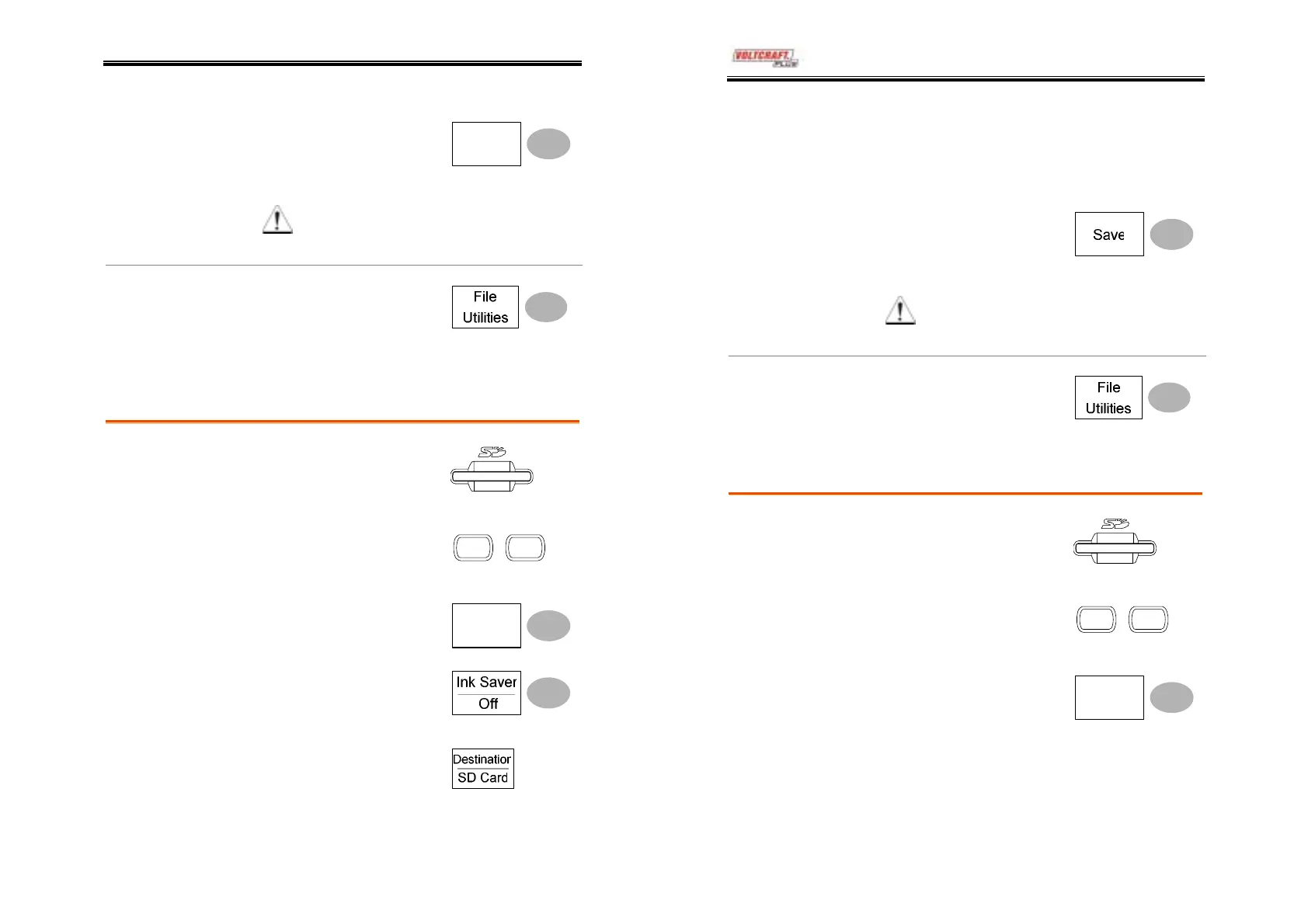

Saving the display image
Procedure
1. (For saving to an external
SD card) Insert the card into
the slot.
2. Press the Save/Recall key
twice to recall the Save
menu.
Save/Recal
l
Save/Recal
l
3. Press Save Image.
Save
4. Press Ink Saver repeatedly to
invert the background color
(on) or not (off).
5. Press Destination.
DSO-4000 User Manual
82
SD card
External card, no practical
limitation on the amount of file.
When saved, the image file will be
placed in the root directory.
6. Press Save to confirm
saving. When completed, a
message appears at the
bottom of the display.
Note
The file will not be saved if the
power is turned off or SD card is
disconnected before completion.
File utilities
To edit SD card contents
(create/ delete/ rename files
and folders), press File Utilities.
For details, see page74.
Saving all (panel settings, display image, waveform)
Procedure
1. (For saving to an external
SD card) Insert the card into
the slot.
2. Press the Save/Recall key
twice to recall the Save
menu.
Save/Recal
l
Save/Recal
l
3. Press Save All. The following
information will be saved.
Save
All
Setup file
(Axxxx.set)
Two types of setups are saved:
the current panel setting and
the last internally saved
settings (one of S1 ~ S15).
