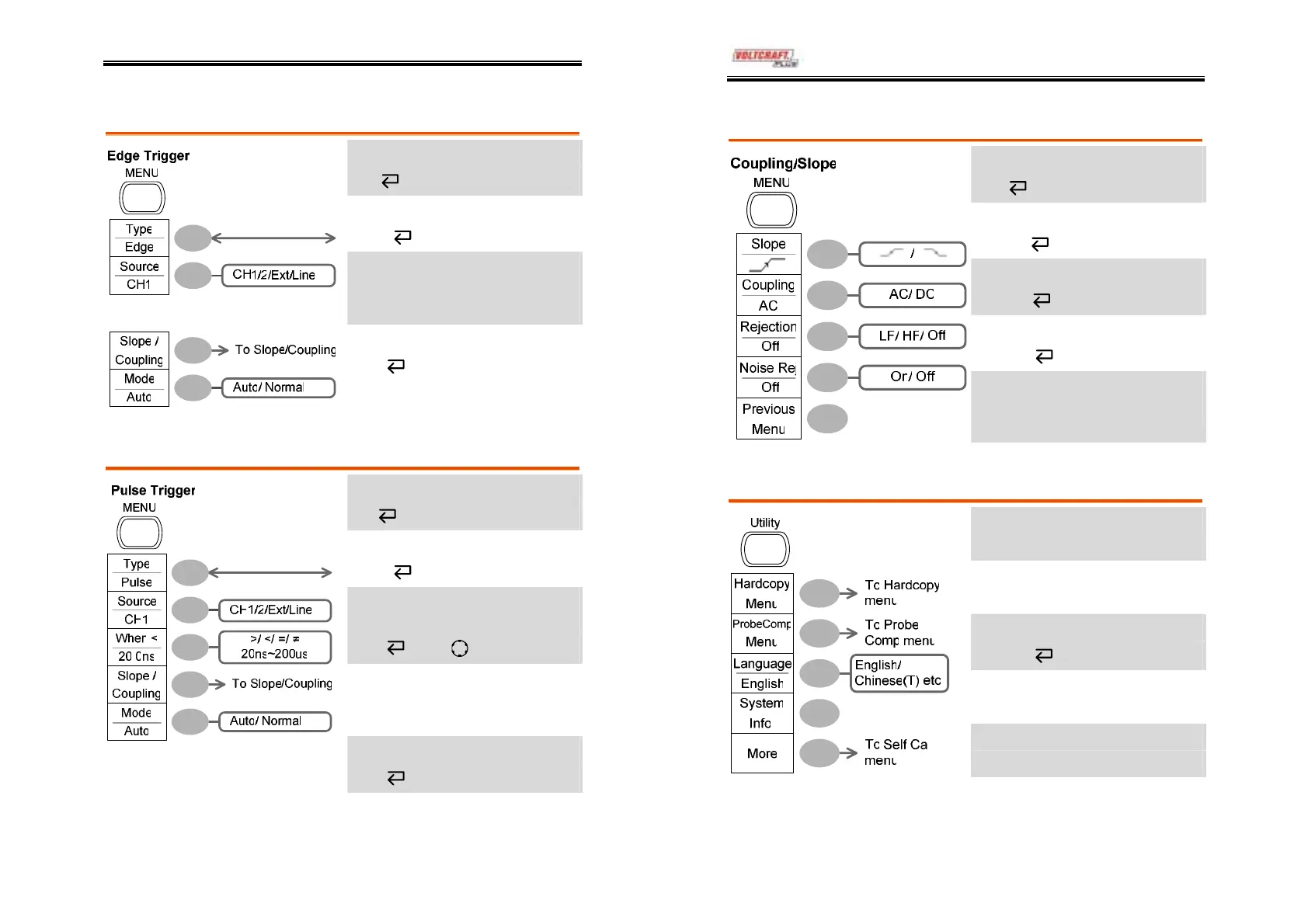

VOLTCRAFT PLUS DSO 4022 - Trigger Key 2;4; Trigger Key 3;4; Trigger Key 4;4

29
Trigger key 2/4
Select edge trigger type
Edge
Select trigger source
Source
Go to slope/coupling menu
(page30)
Slope/Coupling
Select trigger mode
Mode
Trigger key 3/4
Select pulse trigger type
Type
Select trigger source
Source
Select pulse tri
gg
er condition and
pulse width
When →VAR
Go to slope/coupling menu
(page30)
Slope/Coupling
Select trigger mode
Mode
DSO-4000 User Manual
30
Trigger key 4/4
Select trigger slope type
Slope
Select trigger coupling mode
Coupling
Select frequency rejection
Rejection
Turn noise rejection on/off
Noise Rej
Go back to previous menu
Previous Menu
Utility key 1/4
Go to hardcopy menu
Hardcopy
Go to probe compensation menu
ProbeComp
Select language
Language
Show system information
System Info.
Go to self calibration menu
More
