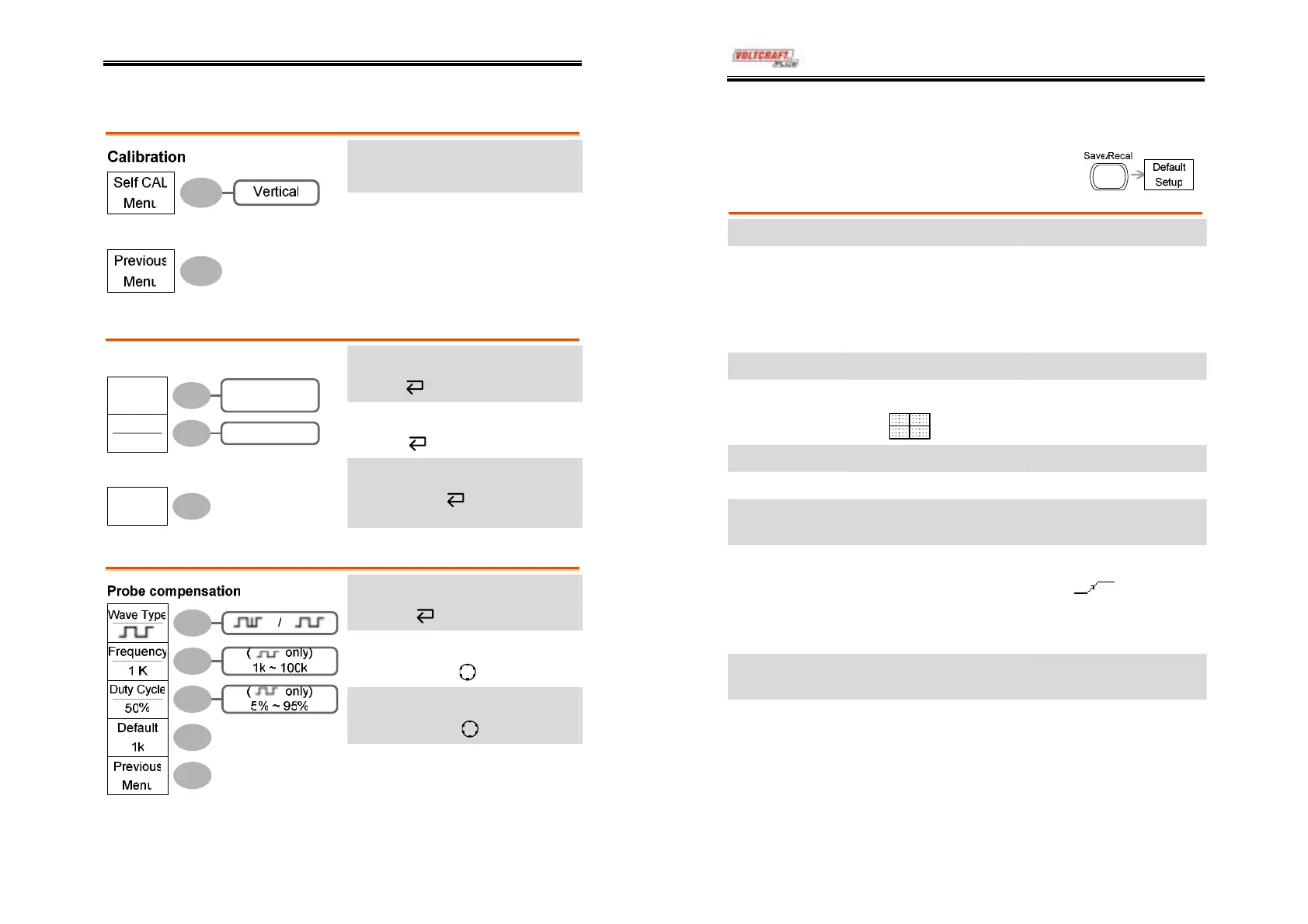

Utility key 2/4
Enter self calibration
Self CAL
Go to previous menu
Previous Menu
Utility key 3/4
Select Hardcopy function
Function
Turn on/off inksaver
Ink Saver
Go to previous menu
Function
Save All
SaveImage/
SaveAll
Previous
Menu
On/ Off
Ink Saver
Off
Hardcopy
Previous Menu
Utility key 4/4
Select probe compensation signal
Wave Type
Set frequency for square wave
Frequency→VAR
Set duty cycle for square wave
Duty Cycle→VAR
Go to previous menu
Previous Menu
DSO-4000 User Manual
32
Default Settings
Here are the factory installed panel settings which
appear when pressing the Save/Recall key→
Default Setup.
Acquisition
Mode: Normal
Channel
Scale: 2V/Div Invert: Off
Coupling: DC Probe attenuation: x1
BW limit: Off
(DSO-4102, DSO-4062)
Channel 1 & 2: On
Cursor
Source: CH1 Cursor: Off
Display
Type: Vectors Accumulate: Off
Grid:
Horizontal
Scale: 2.5us/Div Mode: Main Timebase
Math
Type: + (Add) Position: 0.00 Div
Measure
Item: Vpp, Vavg, Frequency, Duty Cycle, Rise
Time
Trigger
Type: Edge Source: Channel1
Mode: Auto Slope:
Coupling: DC Rejection: Off
Noise Rejection: Off
Utility
Hardcopy: SaveImage,
InkSaver Off
ProbeComp: Square
wave, 1k, 50% duty cycle
