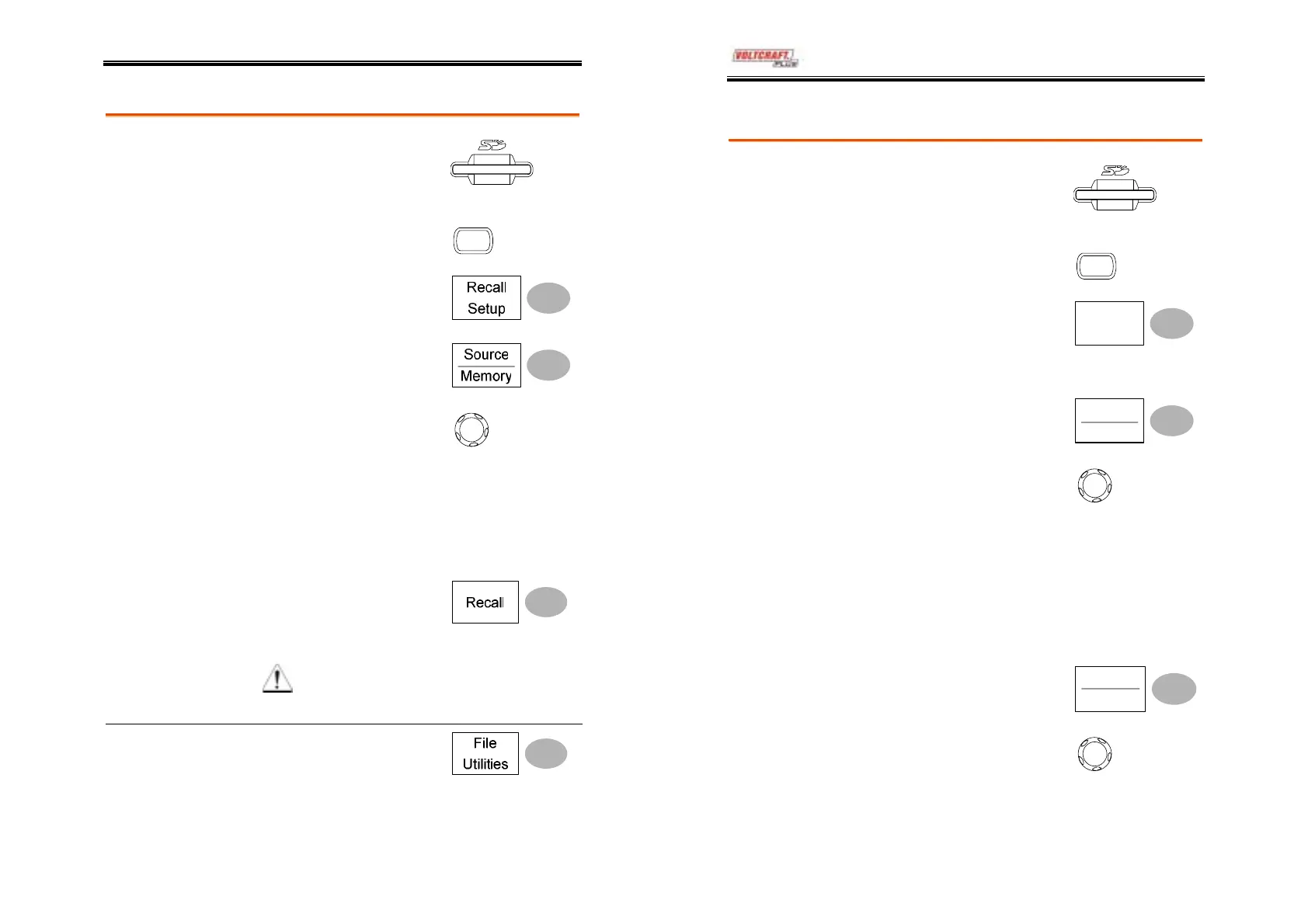

Recalling panel settings
Procedure
1. (For recalling from an
external SD card) Insert the
card into the slot.
2. Press the Save/Recall key.
Save/Recal
l
3. Press Recall Setup.
4. Press Source repeatedly to
select the file source,
internal or external
memory. Use the Variable
knob to change the memory.
V
A
RIABL
E
Memory
Internal memory, S1 ~ S15
SD card
External card, no practical
limitation on the amount of file. The
setup file must be placed in the root
directory to be recognized.
5. Press Recall to confirm
recalling. When completed,
a message appears at the
bottom of the display.
Note
The file will not be saved if the
power is turned Off or SD card is
disconnected before completion.
File utilities
To edit SD card contents
(create/ delete/ rename files
and folders), press File Utilities.
For details, see page74.
DSO-4000 User Manual
88
Recalling a waveform
Procedure
1. (For recalling from an
external SD card) Insert the
card into the slot.
2. Press the Save/Recall key.
Save/Recal
l
3. Press Recall Waveform. The
display shows the available
source and destination
options.
Recall
Waveform
4. Press Source repeatedly to
select the file source,
internal memory or external
SD card. Use the Variable
knob to change the memory
location (W1 ~ W15).
Source
Memory
V
A
RIABL
E
Memory
Internal memory, W1 ~ W15
SD card
External flash drive, no
practical limitation on the
amount of file. The waveform
file must be placed in the root
directory to be recognized.
5. Press Destination. Use the
Variable knob to select the
memory location.
Destination
RefA
V
A
RIABL
E
RefA, B
Internally stored reference
waveforms A, B
