SHB 28Z3 EN – Edition 2.0 * 28z3s612.fm 6-19
Electrical system

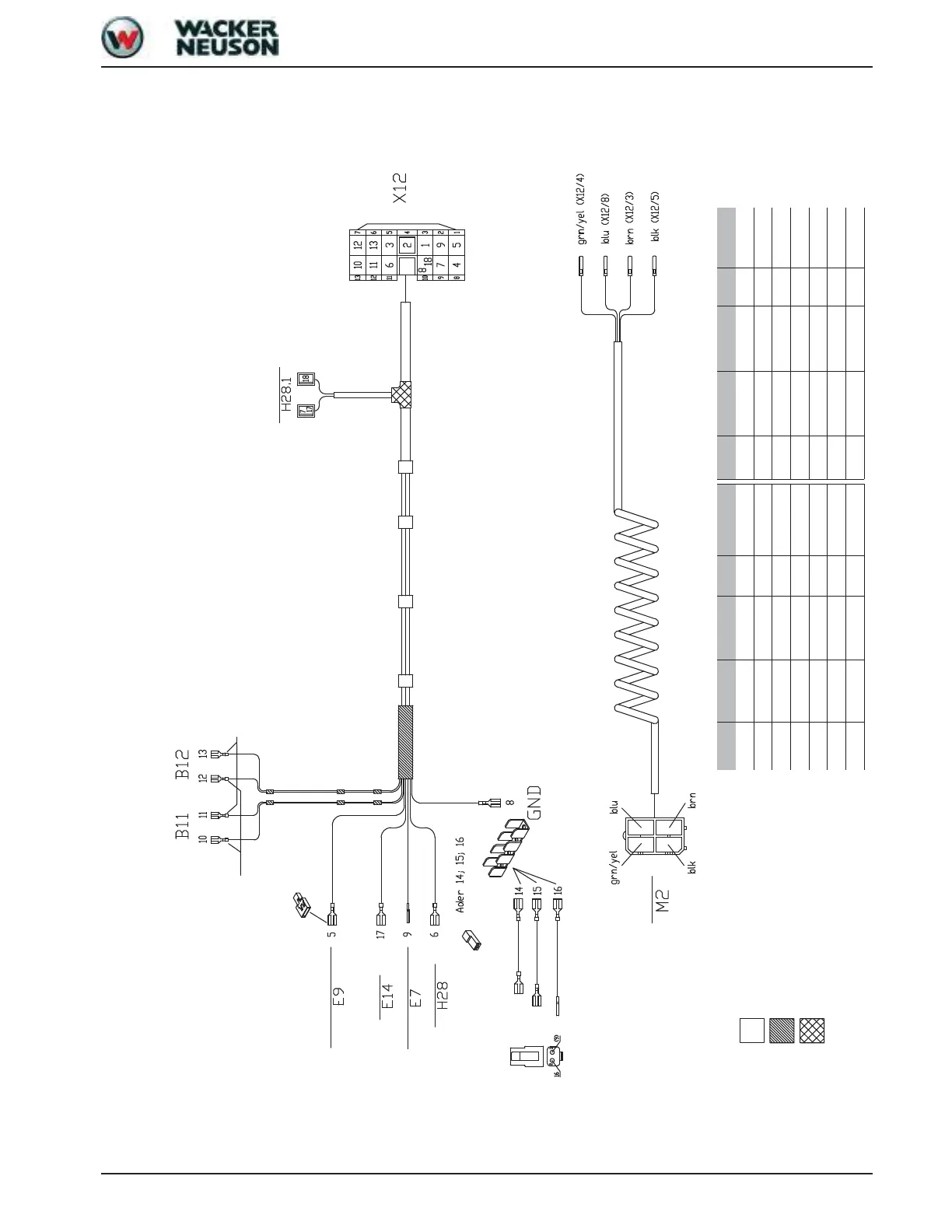

6.21 Cab wiring harness
Connect to earth rail
Front roof lights
Interior light
Rear roof light
Rotating beacon
Wiper
Corrugated pipe PP
Temperature range -30 °C to +100 °C (-22 °F to + 212 °F)
Insulating hose B no fabric, soft PVC,
DIN 40621, temperature range -25 °C to +90 °C (-13 °F to + 194 °F)
Shrink hose
Strand From Up to mm² Colour Strand From Up to mm² Colour
5 X12/1 E9 1 grn/red 12 X12/7 B12 0.5 wht/blk
6 X12/11 H28 1 vio 13 X12/6 B12 0.5 wht
7 X12/9 H28.1 1 blu 14 1 blk
8 X12/10 GND 2.5 blk 15 1 blk
9 X12/2 E7 1 grn/blu 16 1 blk
10 X12/13 B11 1 wht/blk 17 H28.1 E14 1 vio
11 X12/12 B11 1 wht 18 H28.1 X12/10 1 blk
Rotating beacon
