Electrical system

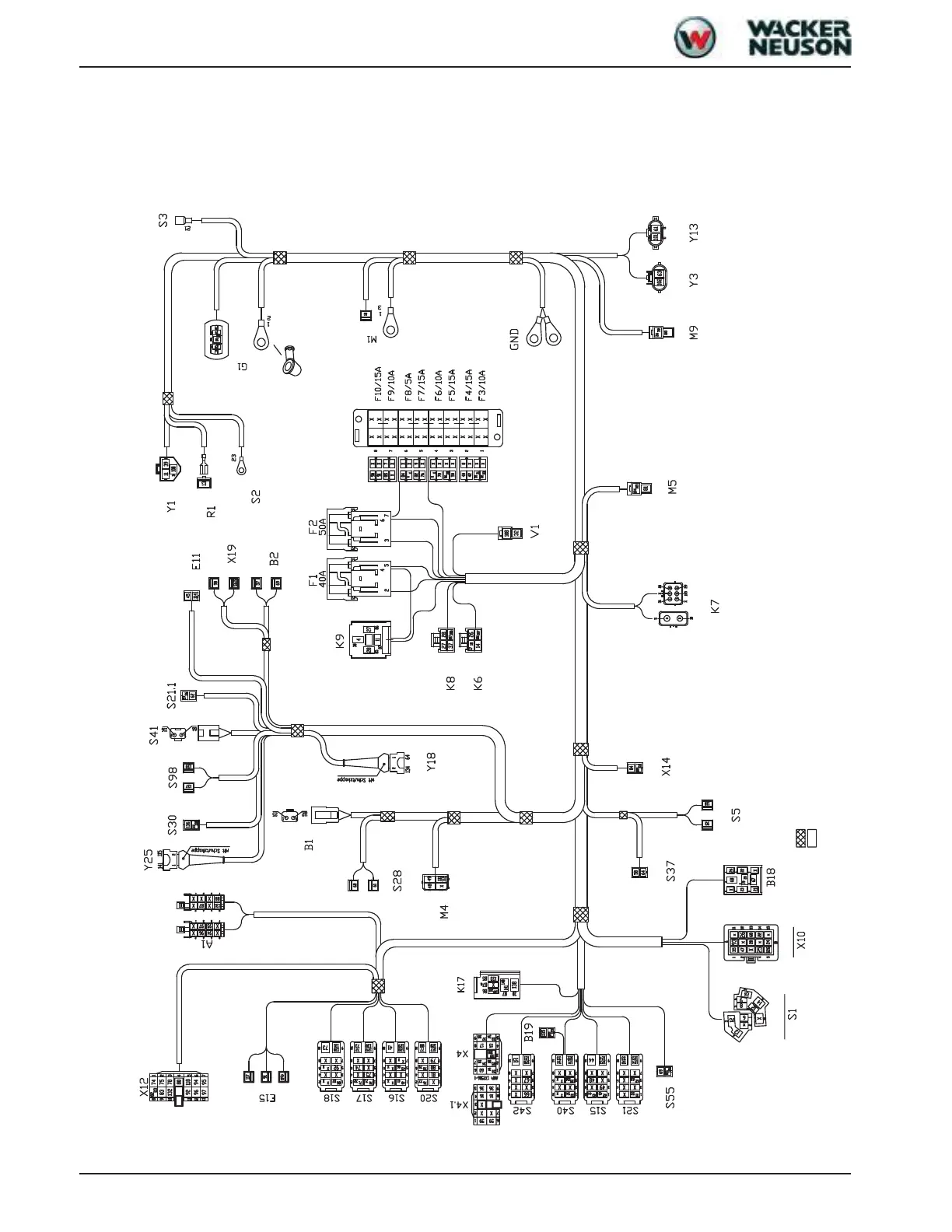

6.20 Chassis/engine wiring harness
Radio
Tank
Quickhitch
Overload
2nd speed
Boom light
Socket
Horn
Cutoff so- lenoid
Preheating
Oil pressure
Engine temperature
Alternator Starter
Safety valve
2nd speed
Fuel pump
Washer pump
Starting relay
Cutoff solenoid timer
Preheating timer
Cutoff solenoid
Safety switch
Heating
Cigarette lighter
Rotating bea- con
Cab light Boom light
Wiper
Overload
Quickhitch
Fan
2nd speed
Horn
Oil filter
Proportional controls
Indicator
Ignition lock
Quickhitch tip switch
Quickhitch pressure switch
VDS
VDS
*) Length indications include connectors, adapter sockets,... *) If technically feasible, pull protective hoses to ends of lines
30 mm (1.18”) maximum (unless otherwise specified) from end of connector to protective hose
*) Use cable ties every 70 mm (2.8”) for loose lines
*) Cable-side indication of connector assigment
(unless otherwise specified)
*) Cable type FLRY-B, DIN 72551 *) Line and connector labelling with
abbreviation (e. g.: Y9)
*) Protective hoses
Temperature range -25 °C to +90 °C (-13 °F to + 194 °F)
Corrugated pipe
Shrink hose
