Wacker Neuson 28Z3 Service Manual

SHB 28Z3 EN – Edition 2.0 * 28z3s810.fm 8-25
PowerTilt PTS06
☞ Remove the securing ring
☞ If not already fitted, fit parallel pin f for the alignment in base block 6.1 on the drive-shaft
side.
☞ Fit the standard journal coupling 6 on shaft 2 with suitable lifting gear. Align the parallel
pin of the shaft with the base block 6.1 on the drive-shaft side.
☞ Apply a waterproof lubricant to the end of shaft 2, securing ring 5 and the outside
surfaces of end cap 4.

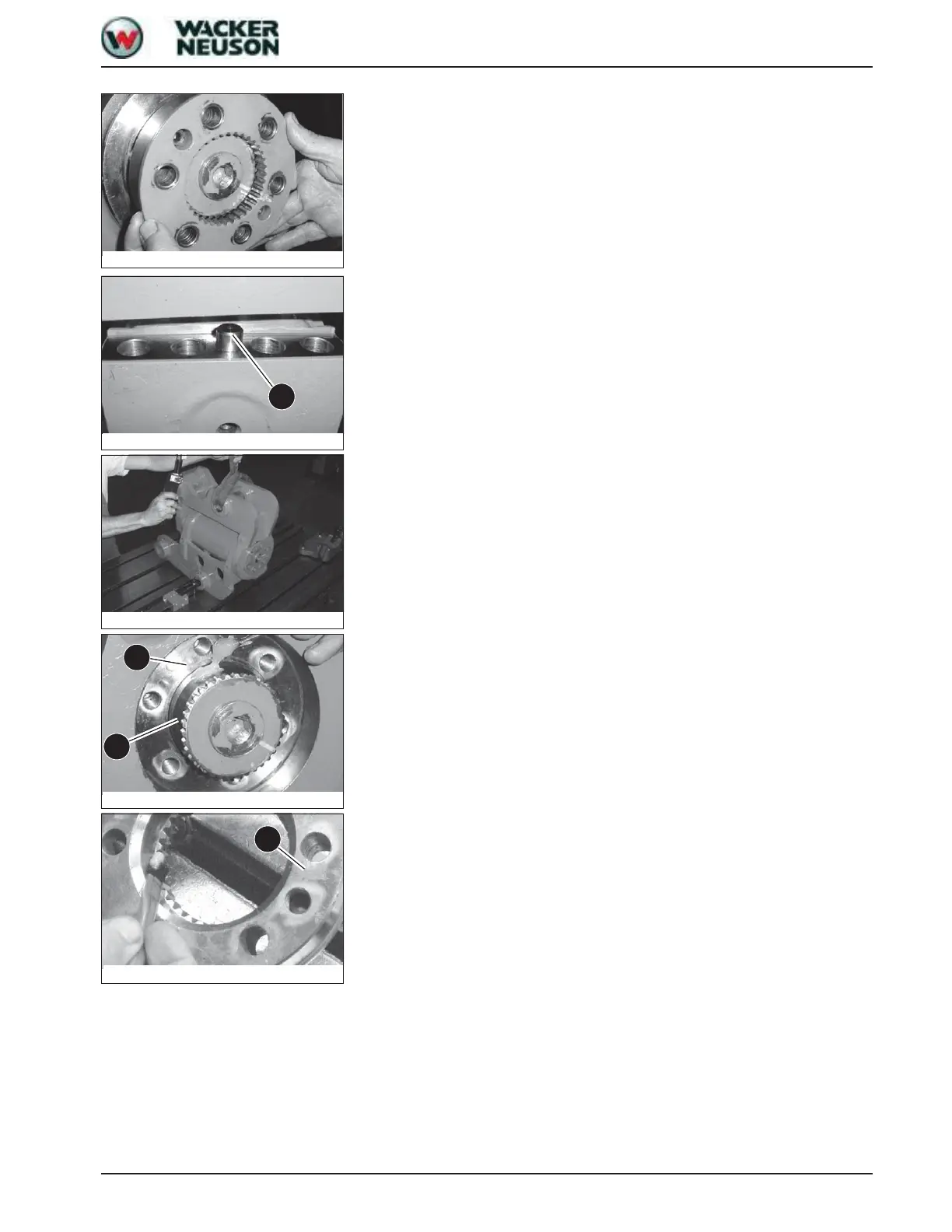

Fig. 66: Removing the securing ring
Fig. 67: Installing the parallel pin in the base block
f
Fig. 68: Fitting the standard journal coupling on the shaft
Fig. 69: Waterproof lubricant
2
4
Fig. 70: Waterproof lubricant
5
