PowerTilt PTS06
☞ Install the O-ring of circlip A10 on the shaft.
☞ Apply Loctite 242 XV to the screws of securing ring d and tighten them after fitting the
securing ring.
☞ Apply Loctite 545 XVI to both set screws of securing ring e and tighten them to 41 Nm
(30 lbs/ft).
☞ Apply Loctite 242 XV to the threads of the fastening screws of shaft a, and tighten the
screws.

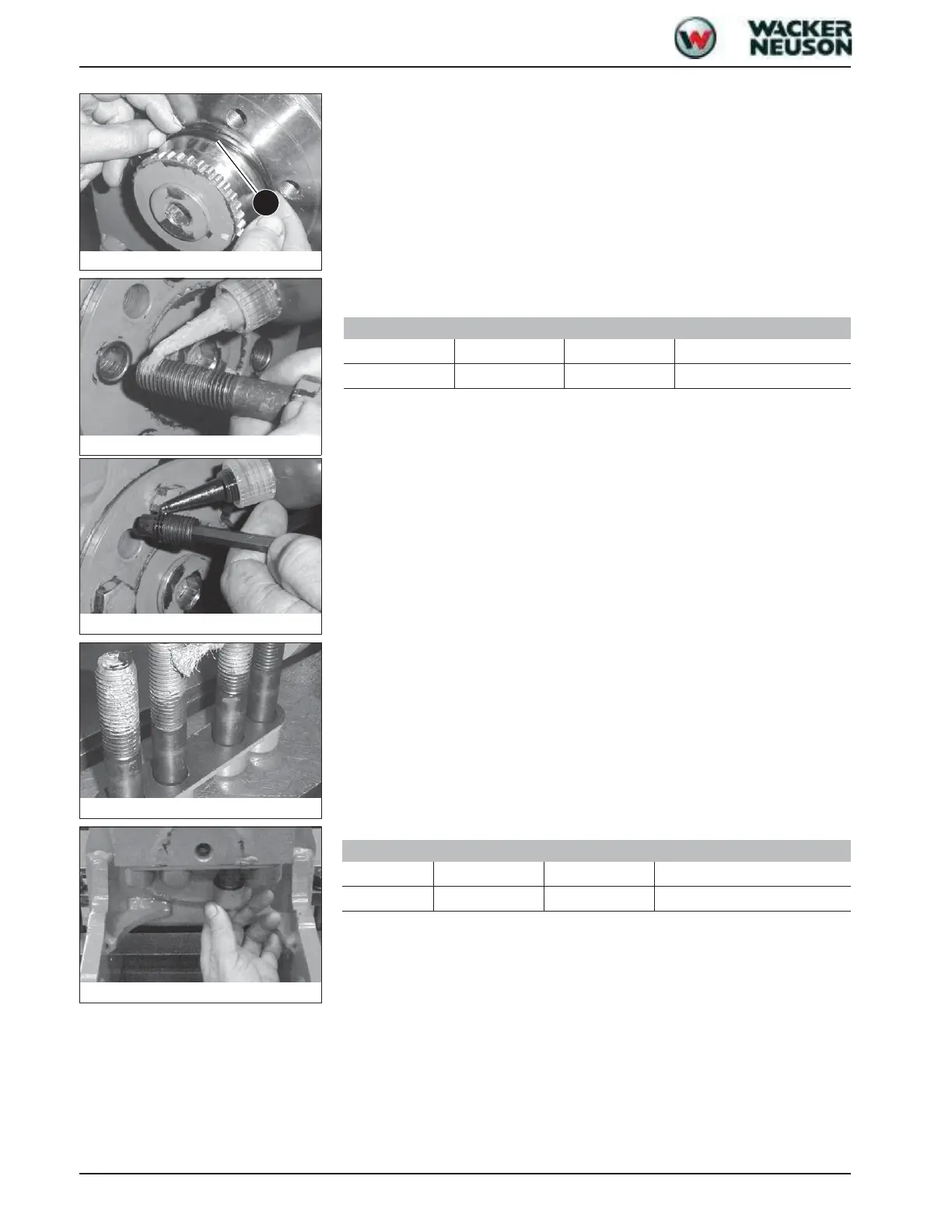

Fig. 71: O-ring for securing ring
A10
Fig. 72: Loctite 242 on securing ring screws
Torque specifications for securing ring screws in Nm (lbs/ft)
Model Size No Hexagon head screw
PTS06 M12 x 1.75 6 75 +/- 4 (55.3 +/- 3)
Fig. 73: Loctite 545 on set screws
Fig. 74: Fastening screws of shaft
Fig. 75: Fastening the shaft screws
Torque specifications for fastening screws in Nm (lbs/ft)
Model Size No Hexagon socket screw
PTS06 M16 x 2.00 4 258 +/- 7 (190 +/- 5)
