WAGNER 2K COMFORT User Manual

30
OPERATING MANUAL
VERSION 05/2017 ORDER NUMBER DOC 2357061

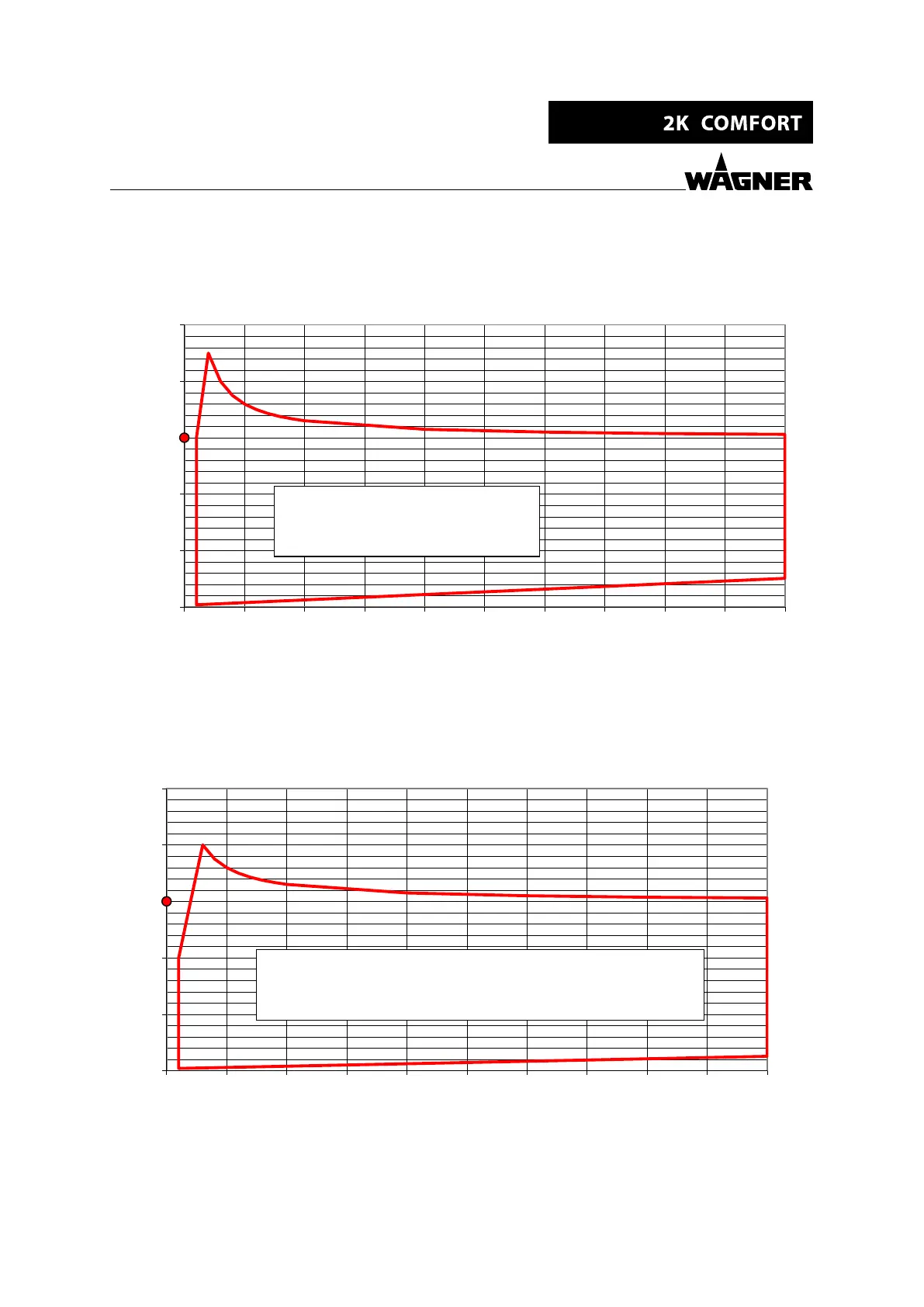

5.5.3 WORKING AREAS OF FLOW METERS
0
1
2
3
4
5
0 5 10 15 20 25 30 35 40 45 50
B_04677
Flow meters: A/B: 0.02 – 3 l/min Viscosity: A: min. 5 mPa·s
B: min. 5 mPa·s
Mixing ratio (volumetric) A:B (0 = only A)
Flow-mixed product A+B [l/min]
Working area
[5:1]
[50:1]
0
1
2
3
4
5
0 5 10 15 20 25 30 35 40 45 50
B_04678
Flow meters: A: 0.02 – 3 l/min Viscosity: A: min. 5 mPa·s
B: 0.005 – 2 l/min B: min. 5 mPa·s
Mixing ratio (volumetric) A:B (0 = only A)
Flow-mixed product A+B [l/min]
Working area
[5:1]
[50:1]
