OPERATING MANUAL
VERSION 09/2012 ORDER NUMBER DOC 2326020
5 DESCRIPTION

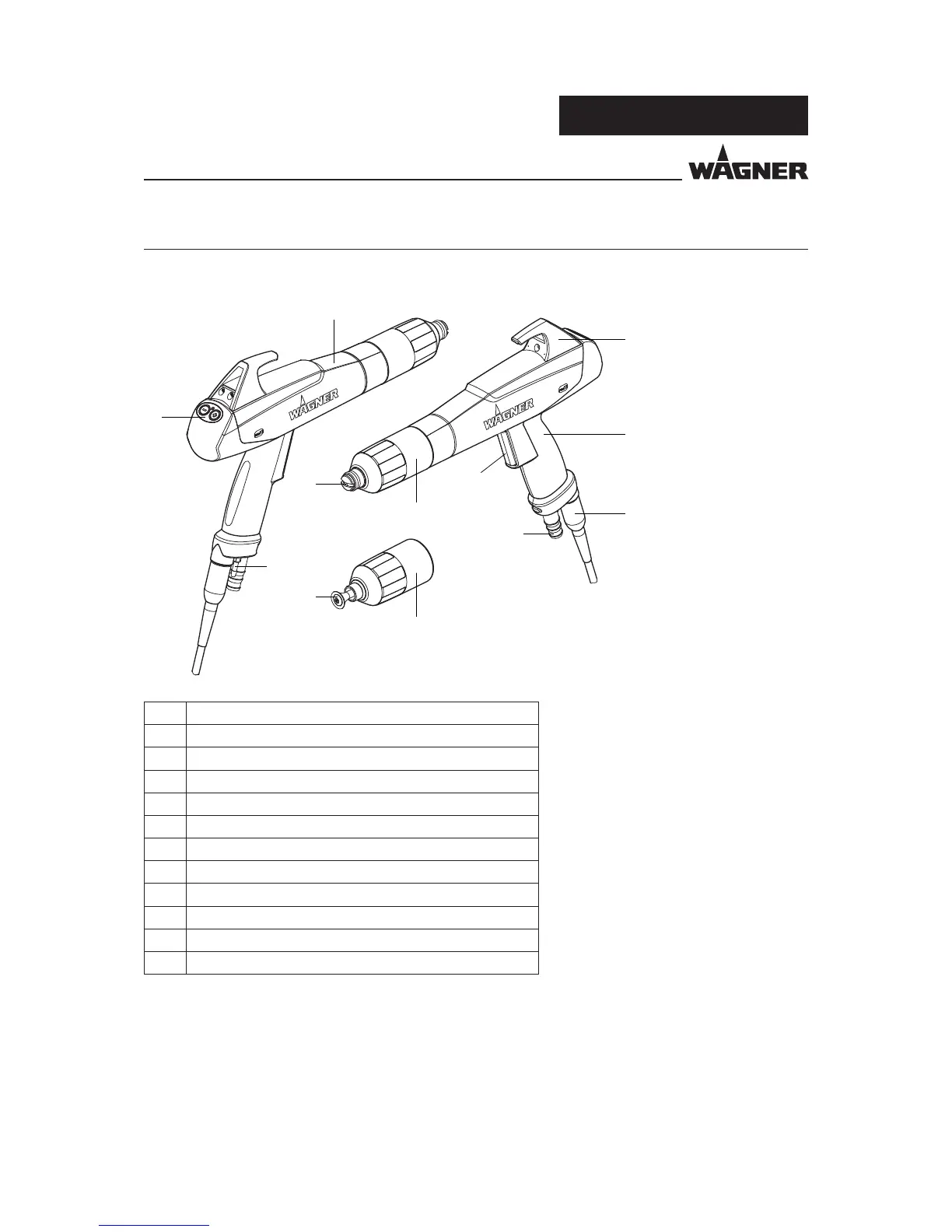

5.1 DESIGN OF THE SPRAY GUN
Designation
A Suspension hook
B Handle
C Electrical connection cable
D Powder hose connection
E Trigger lever
F Cap nut
G Round spray nozzle
H Atomizer air connection
I Flat spray nozzle
K Buttons to adjust the powder quantity
L Gun body
5.2 FUNCTIONING OF THE SPRAY GUN
High-voltage is activated in the hand gun when the trigger is actuated.
The powder supply and air supply to the gun are activated at the same time.
The control unit must be switched o in order to lock the spray gun.
To prevent electrostatic ashover, the cap nut for securing the nozzles is designed with a
labyrinth.
