OPERATING MANUAL
VERSION 09/2012 ORDER NUMBER DOC 2326020

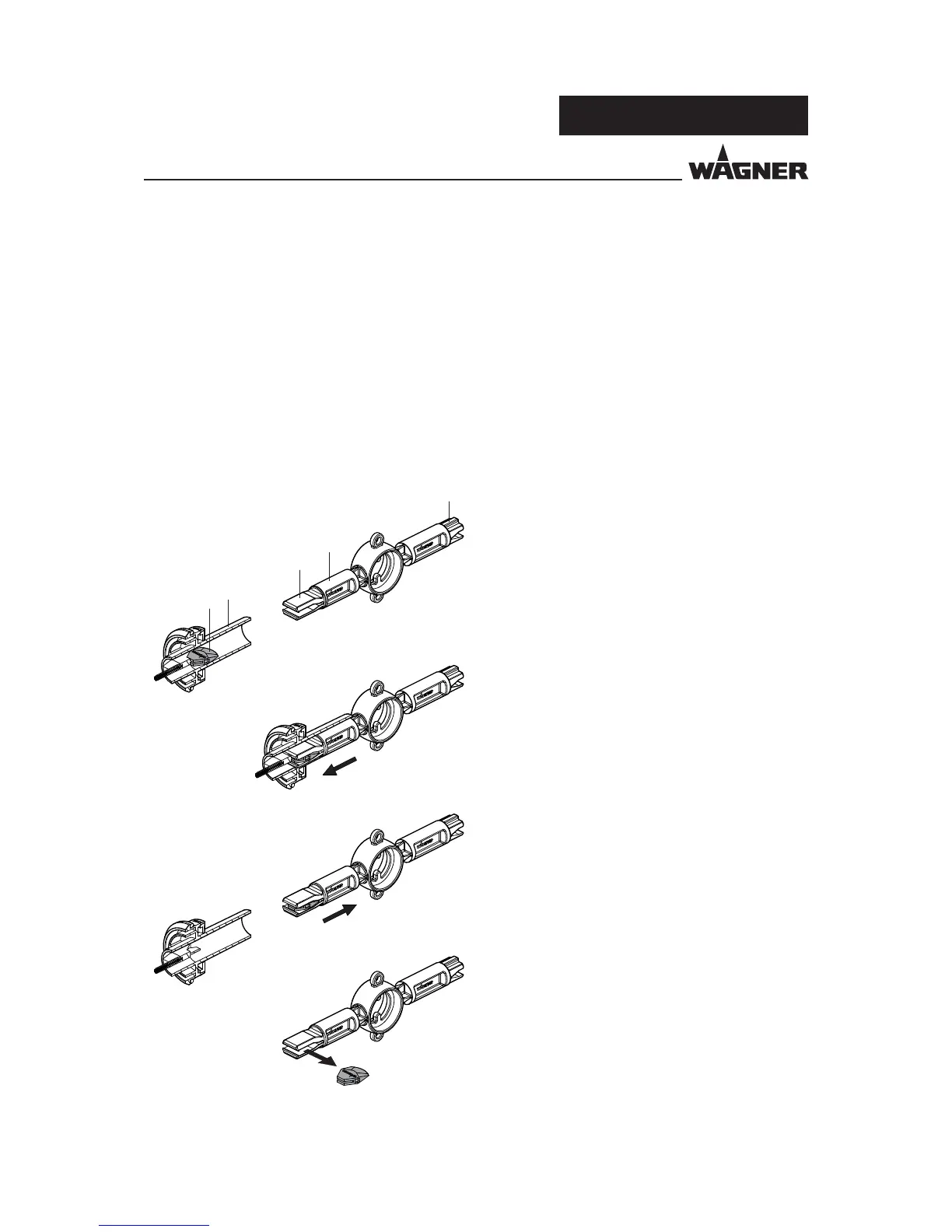

8.7 REPLACING THE PROTECTIVE WEDGE
1 Wedge tool
2 Electrode holder (shown with a cut-away
view to improve comprehension)
3 Protective wedge (when positioned)
Procedure:
1. Guide wedge tool 1 into electrode holder
2 up to stop.
3. Press manually without a tool the
protective wedge 3 sideways out of
wedge tool 1 .
Note:
A wedge tool is available to prevent the protective wedge from being damaged when
dismantling and inserting.
The wedge tool has a removal side (E) and an attachment side (A). Use the right side for the
corresponding procedure!
You will  nd the necessary wearing parts and spare parts in chapter 13 "Spare Parts" of this
operating manual.
2. Pull protective wedge 3 out of electrode
holder 2 using wedge tool 1.
