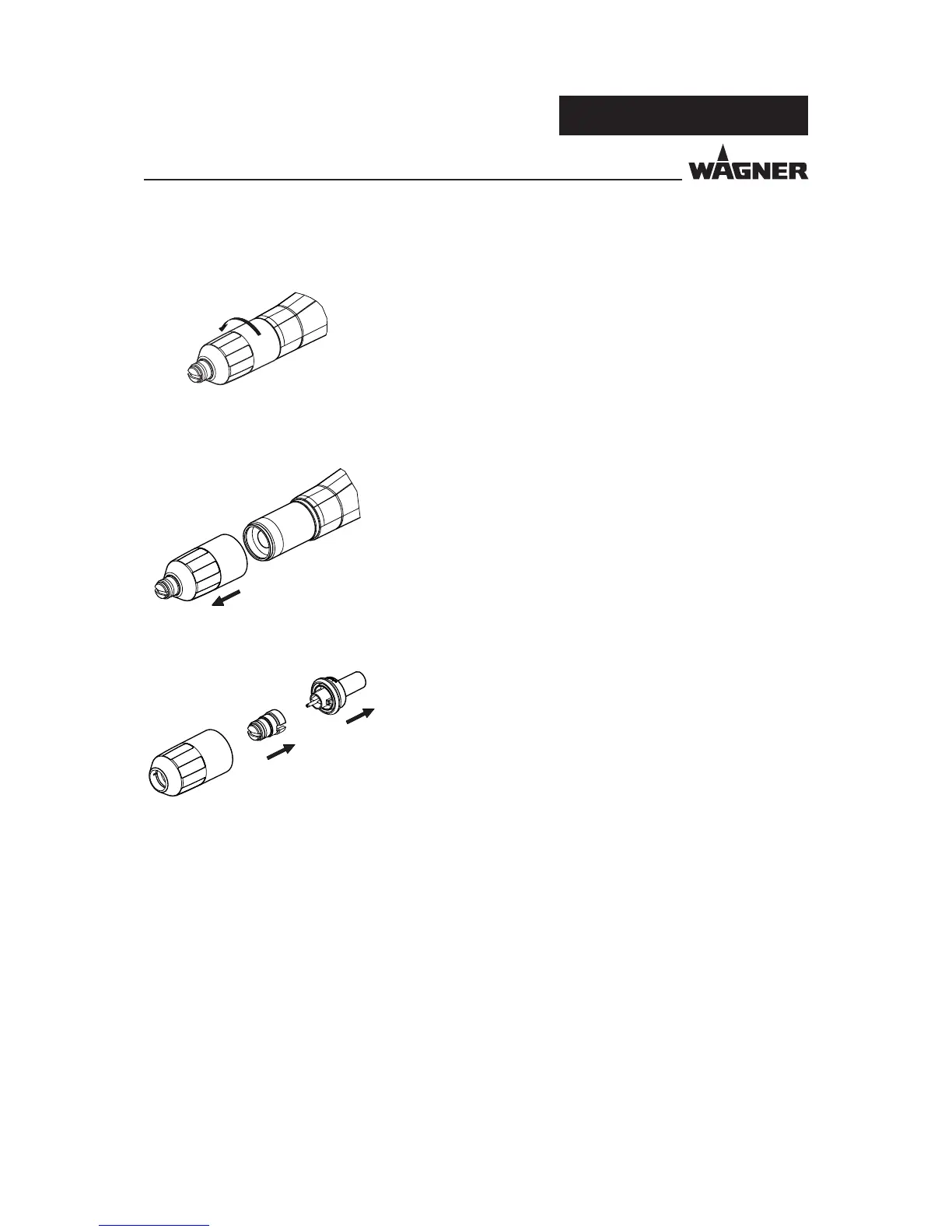

8.3 REMOVING THE FLAT SPRAY NOZZLE
3. The parts can be separated by gently pressing the sliding
ring on the at spray nozzle.
4. Remove powder residue from the parts removed and from
the spray gun.
Note:
Never place the spray gun or parts of the spray gun in cleaning
agent.
As a rule the protective wedge needs to be checked for wear and
replaced if necessary.
Procedure:
1. Unscrew cap nut from the gun housing.
2. Take cap nut with nozzle system o gun body. The nozzle
system remains inserted in the cap nut.
Note:
If the nozzle system doesn't remain inserted in the cap nut, the
nozzle system and cap nut must be replaced.
