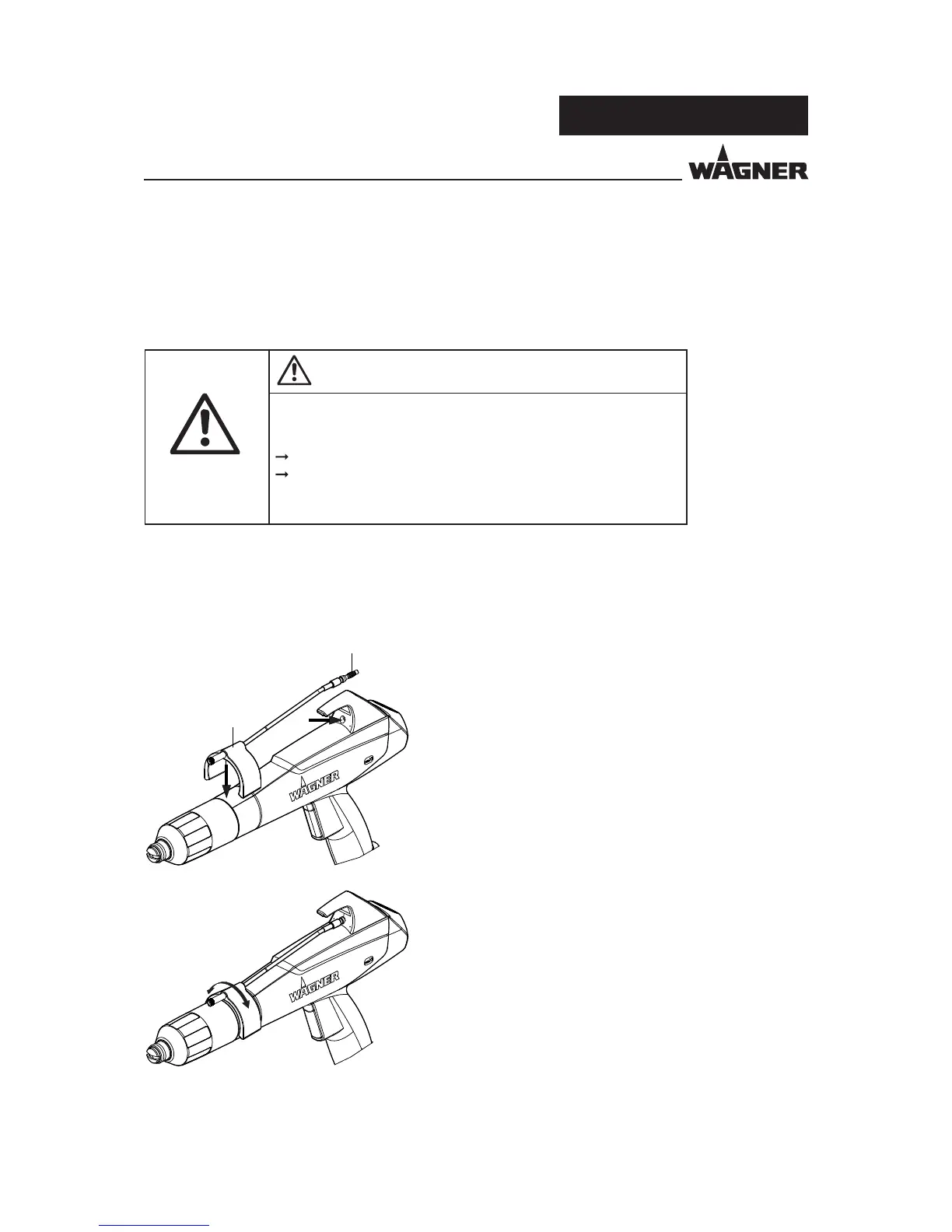

8.9 MOUNTING THE CORONASTAR
The Corona-Star is a retro t set for the spray gun, which helps to achieve a better surface
quality (e.g. reduction of "orange peel").
Procedure:
1. Guide plug-in contact 1 of Corona-Star into hole B
on hook.
2. Attach clip 2 of Corona-Star to housing.
Flexible positioning in a range of ± 90° is possible.
Danger from electric current!
Risk of injury and damage to the equipment.
Only trained personnel may modify the Corona-Star.
Prior to mounting the Corona-Star, the high-voltage and
powder feed must be switched o and secured against being
inadvertently switched on.
WARNING
