45
PEM-X1
P_01690
8.
7.
9.
6.
OPERATING MANUAL
VERSION 09/2012 ORDER NUMBER DOC 2326020
Procedure:

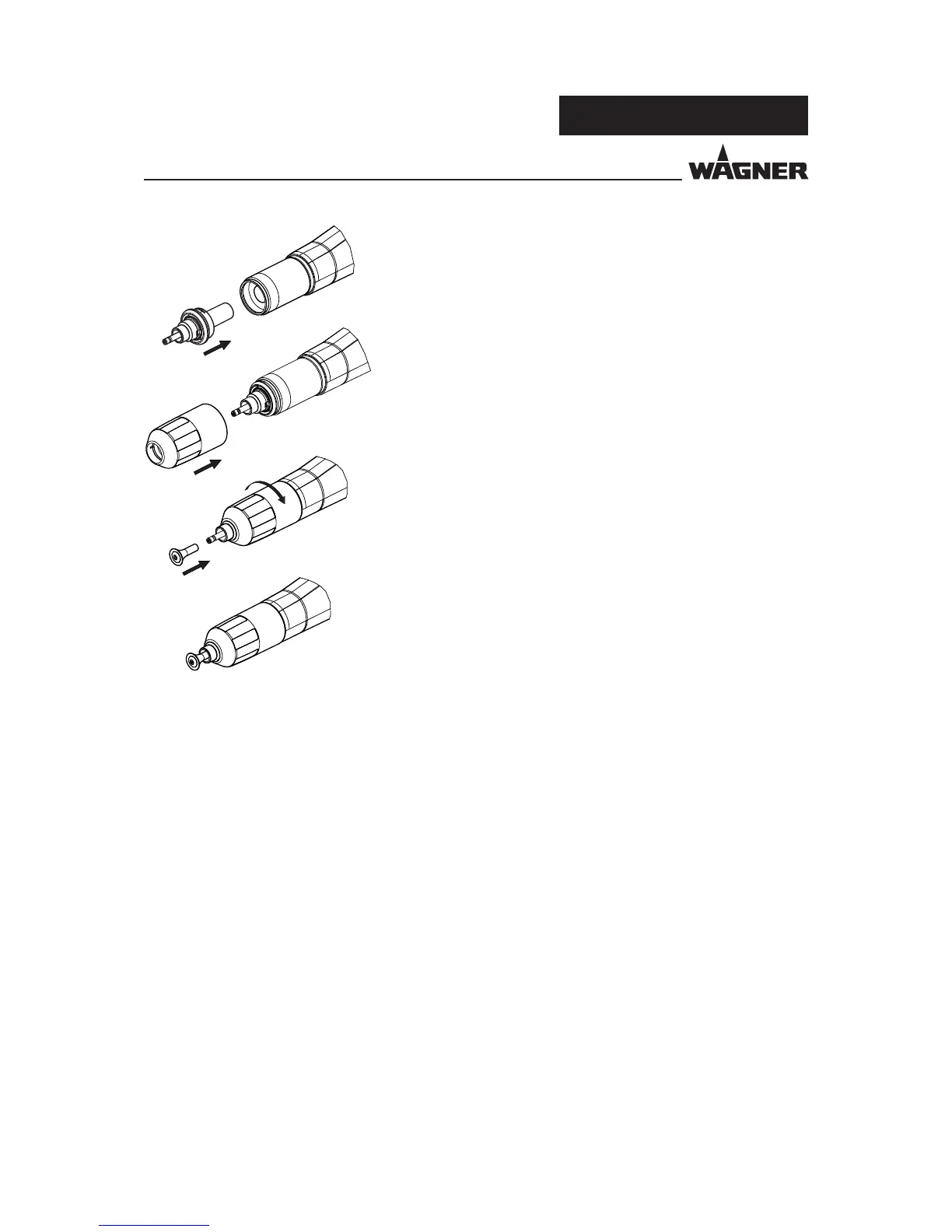

5. Before inserting the electrode holder, the spring contact of
the gun body and contact surface of the electrode holder
should be checked. The spring contact must be clean and
smooth-running, the gun body must also be clean and free
of powder deposits.
6. Insert electrode holder into gun housing.
7. Slide cap nut onto gun housing.
8. Screw cap nut onto gun housing (hand-tight).
9. Slide de ector cone over de ector cone sleeve.
