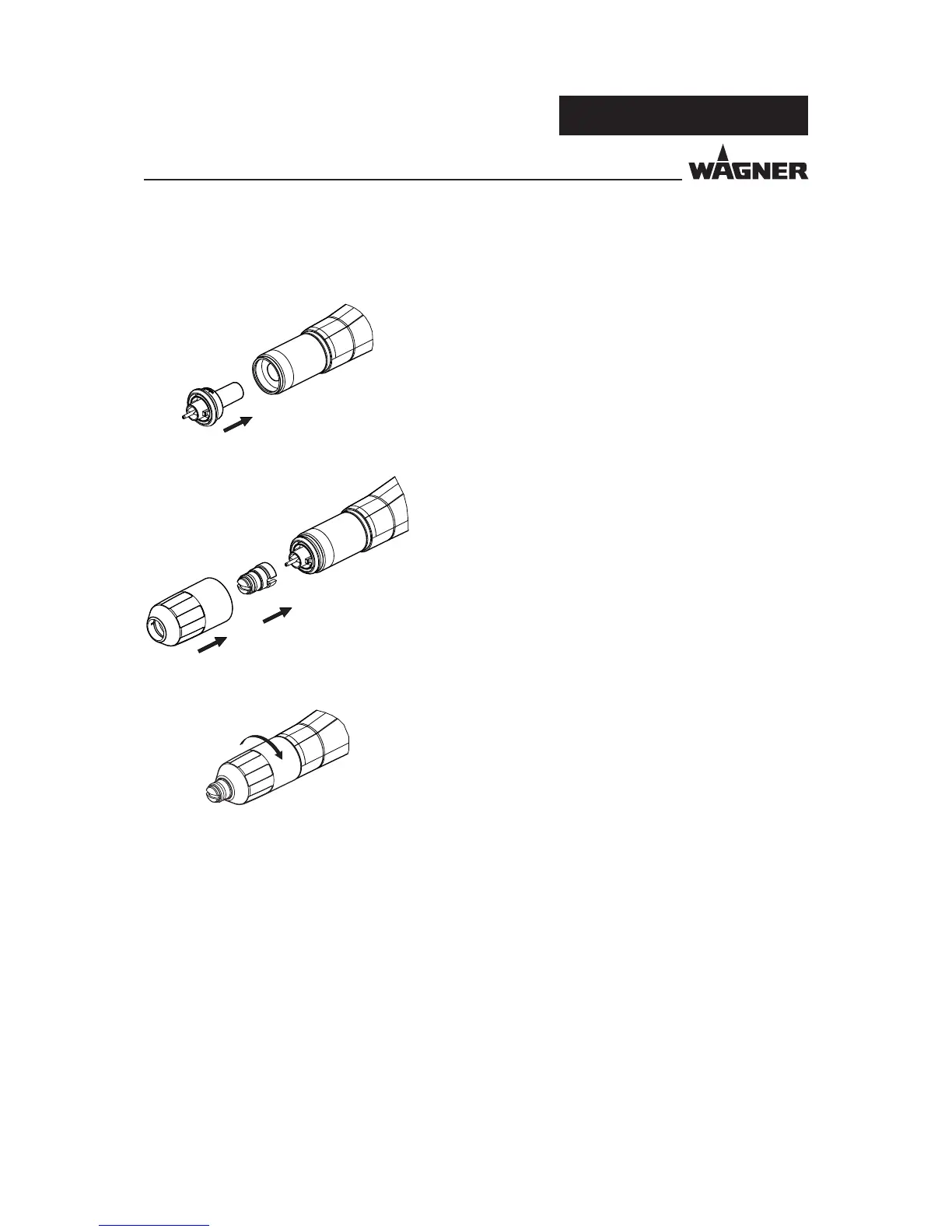

8.4 FITTING THE FLAT SPRAY NOZZLE
4. Screw cap nut onto gun housing until  at spray nozzle
can no longer be turned by hand.
Procedure:
Note:
1. Before inserting the electrode holder, the spring
contact of the gun body and contact surface of the
electrode holder should be checked. The spring
contact must be clean and smooth-running, the gun
body must also be clean and free of powder deposits.
2. Insert electrode holder into gun housing.
3. Attach  at spray nozzle to electrode holder and attach
cap nut.
