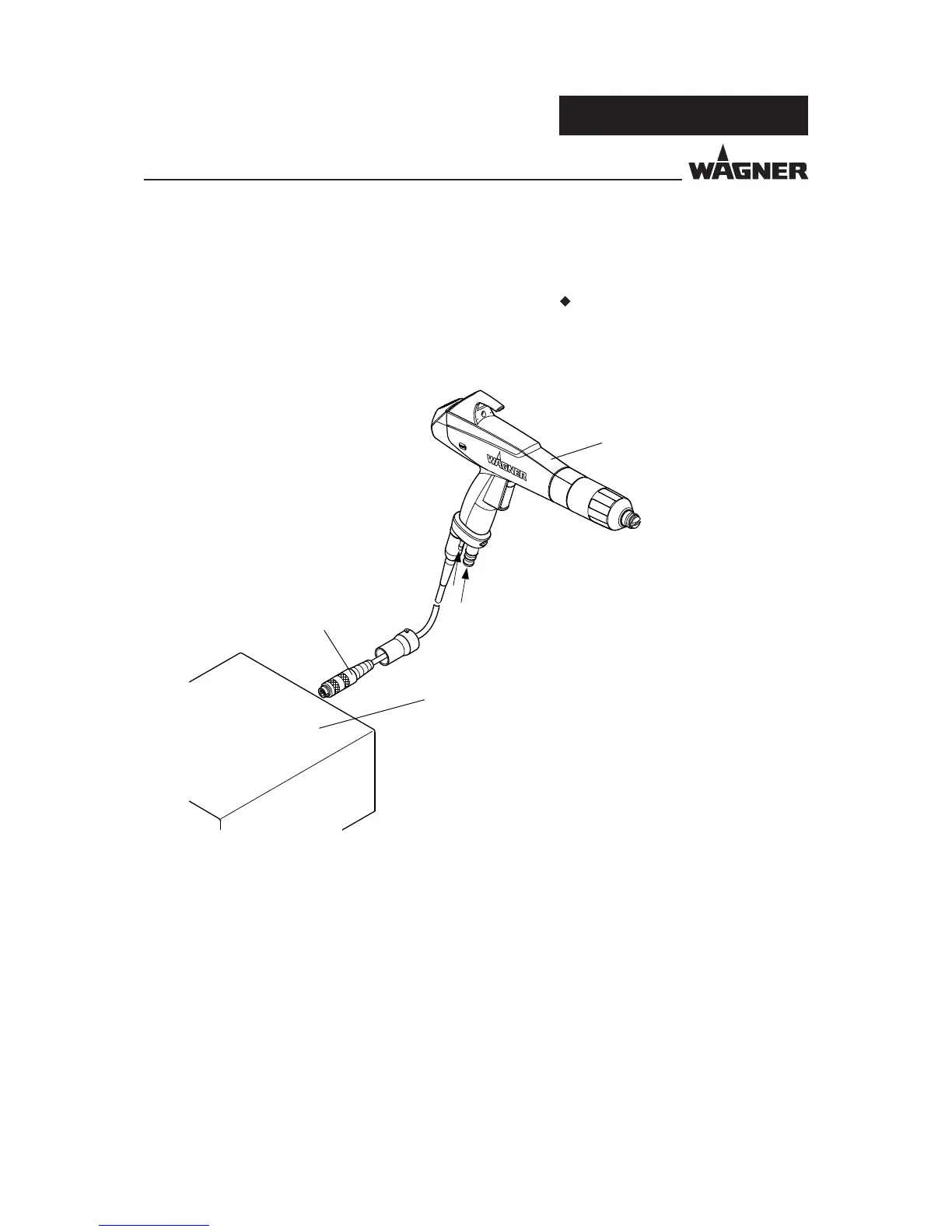

8.2.4 REPLACING THE SPRAY GUN
Before replacing the spray gun any powder residue must be thoroughly removed.
The wear parts in the spray gun, marked in the spare parts list with "
", must be regularly
checked and, if necessary replaced.
Procedure:
1. Switch o control unit.
2. Disconnect electrical cable 1 from control unit 2.
3. Disconnect the hoses for powder feed 3 and atomizing air 4 from the spray gun 5.
4. Connect the hoses for powder feed 3 and atomizing air 4 to the new spray gun 5.
5. Connect electrical cable 1 to control unit 2.
6. Switch on control unit.
7. The spray gun is ready for use again.
