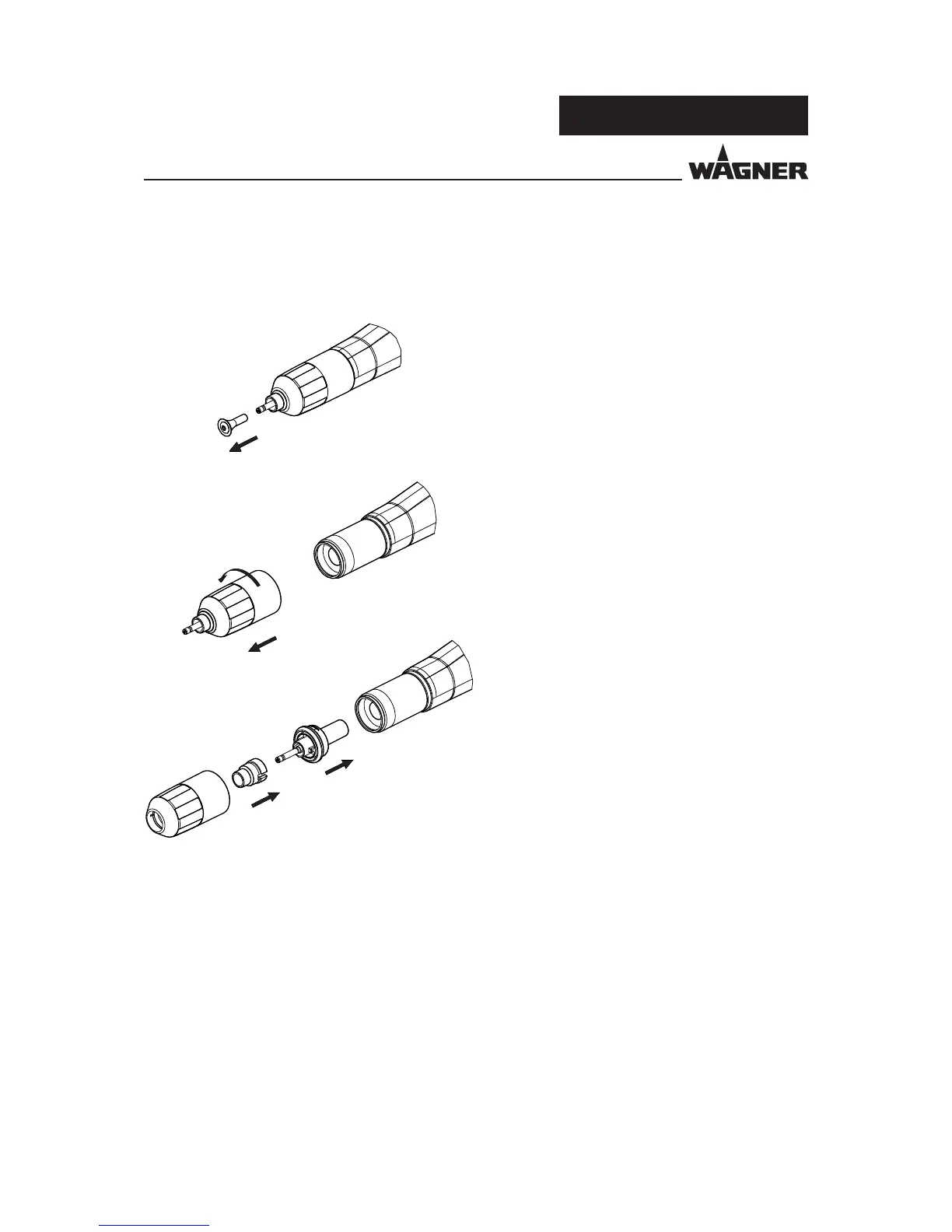

8.5 REMOVING THE ROUND SPRAY NOZZLE
Procedure:
1. Pull o de ector cone.
2. Unscrew cap nut from the gun housing.
3. Take cap nut with nozzle system o gun body.
The nozzle system remains inserted in the
cap nut.
Note:
If the nozzle system doesn't remain inserted in the
cap nut, the nozzle system and cap nut must be
replaced.
4. Press nozzle system out of cap nut by gently
pressing on de ector cone sleeve.
5. Remove powder residue from the parts
removed and from the spray gun.
Note:
Never place the spray gun or parts of the spray gun
in cleaning agent.
As a rule the protective wedge needs to be checked
for wear and replaced if necessary.
