WAGNER PEM-X1 - Replacing Protective Wedge

43
PEM-X1
Y
X
P_01676
3.
1.
2.
OPERATING MANUAL
VERSION 09/2012 ORDER NUMBER DOC 2326020

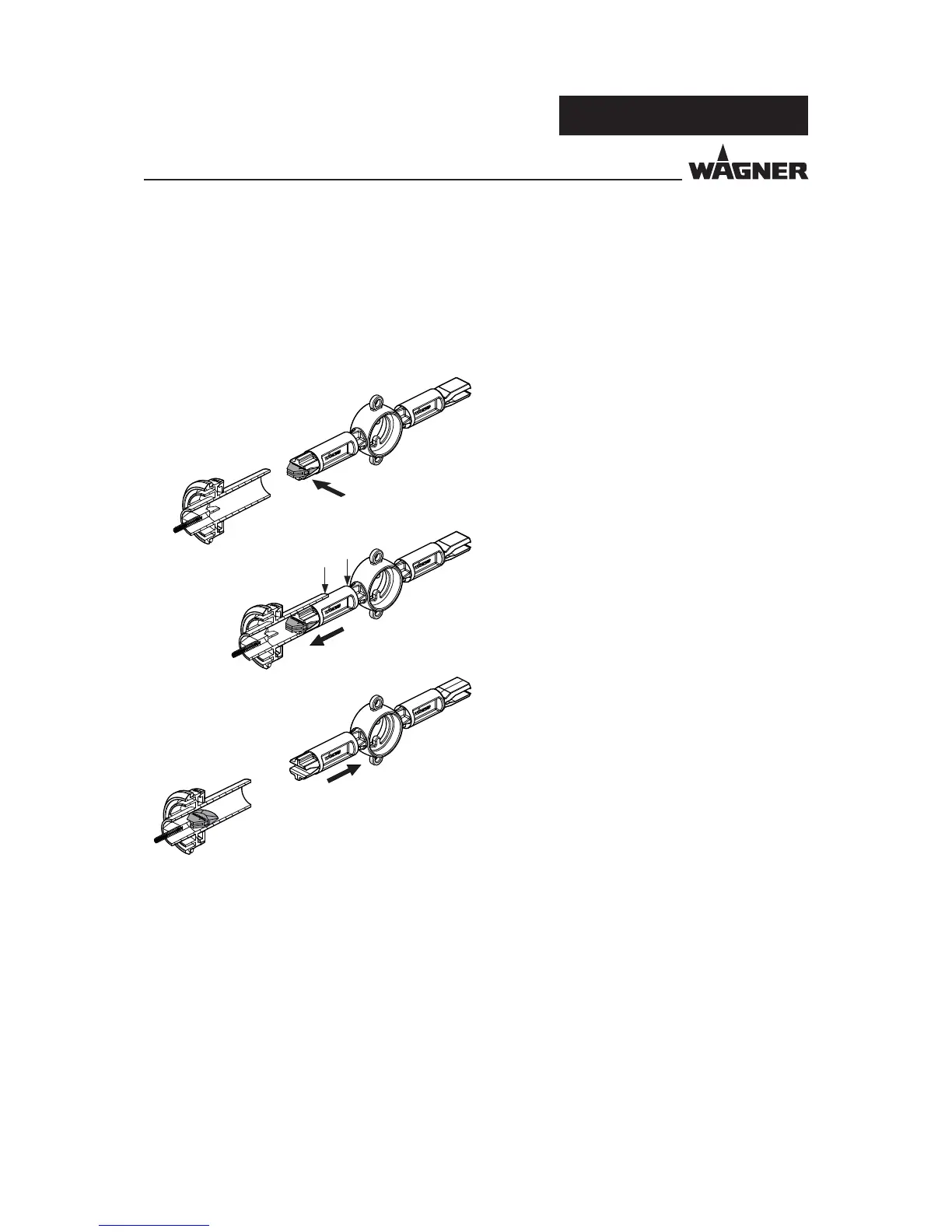

Procedure:
1. Guide protective wedge 2 into wedge tool 1.
2. Insert both parts into opening on electrode
holder until they stop.
If it is not possible to push the wedge tool in
as far as the mark X, rotate the wedge tool a
little until it can be pushed up to the mark.
The mark X must be  ush with the end Y of
the electrode holder.
3. The protective wedge is now correctly
assembled and the wedge tool can be
retracted out of the electrode holder.
4. The protective wedge remains inserted in the
electrode holder.
Prior to re- tting, check whether the contact
points on electrode holder 3 and in gun
housing 5 have been thoroughly cleaned so
that the electrode tip is electrically connected
to the high-voltage generator.
5. Fit  at or round spray nozzle with the
corresponding electrode holder.
Note:
The same wedge tool is used to insert the protective wedge.
