WAGO PFC200 2ETH RS XTR User Manual

WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 247
750-8202/040-000 PFC200 2ETH RS XTR
Manual
Version 1.2.0, valid from FW Version 03.01.07(13)
10. You can select a module in the new “Module selection” window that then
appears.

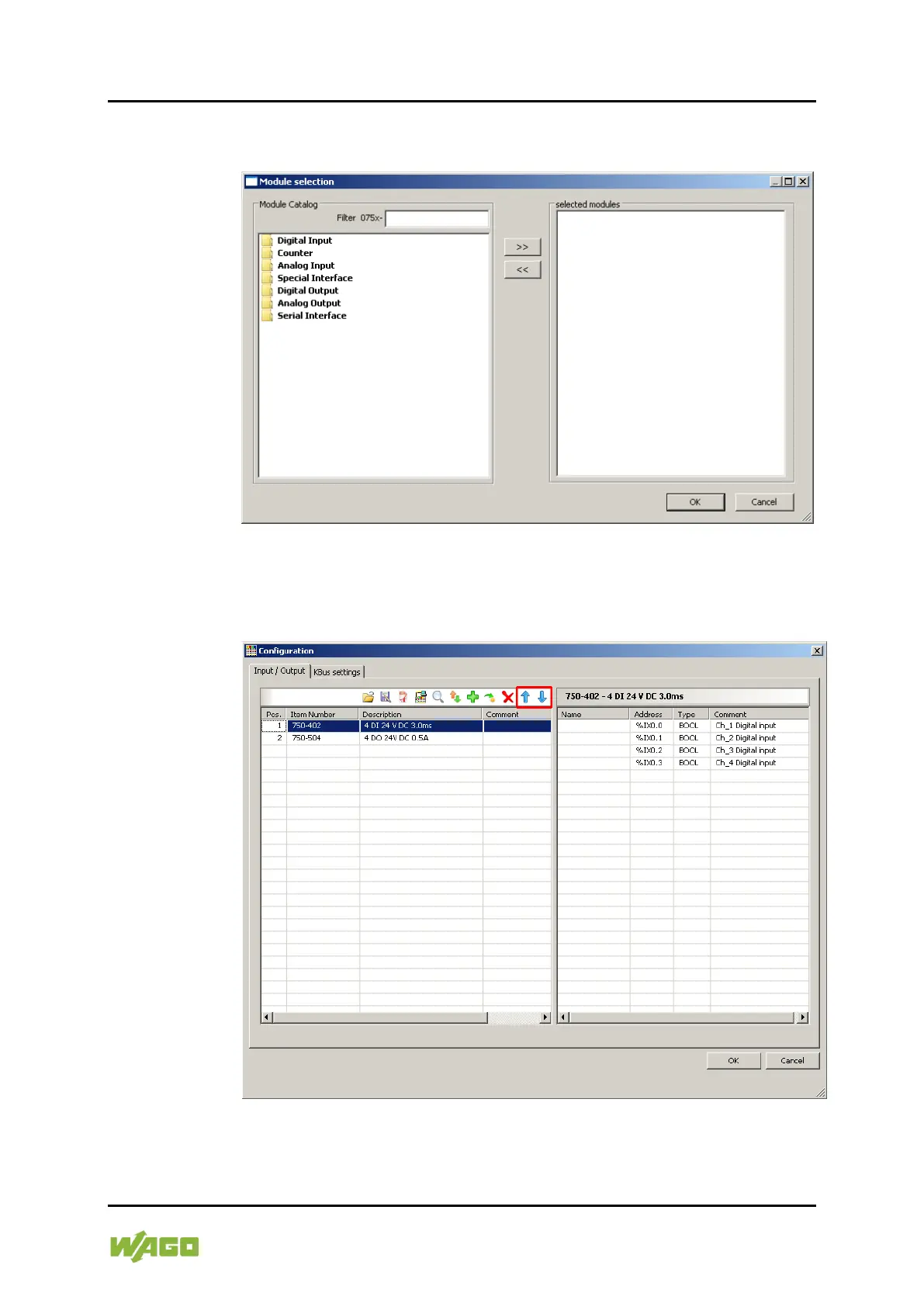

Figure 62: “Module Selection” Window
11. You can change the position of an I/O module by marking it and then using
the arrow buttons at the right edge of the window to move it up or down.
Figure 63: I/O Configurator with Defined I/O Modules
12. Use [Import configuration from file] to add a configuration imported
previously using WAGO-I/O-CHECK.

WAGO PFC200 2ETH RS XTR Specifications

General

Processor	ARM Cortex-A8
Clock Speed	600 MHz
RAM	256 MB
Ethernet Ports	2
Protection Class	IP20
Power Supply	24 V DC
Serial Ports	1 (RS-232/RS-485)
Operating Temperature	-40°C to +70°C
Programming Languages	IEC 61131-3
Certifications	UL
