WAGO I/O SYSTEM 750 XTR Device Description 33
750-8202/040-000 PFC200 2ETH RS XTR
Manual
Version 1.2.0, valid from FW Version 03.01.07(13)
3.3.2 Power Jumper Contacts/Field Supply
The controller 750-8202/040-000 is equipped with 2 self-cleaning power contacts
for transferring of the field-side power supply to down-circuit I/O modules. These
contacts are designed as spring contacts.

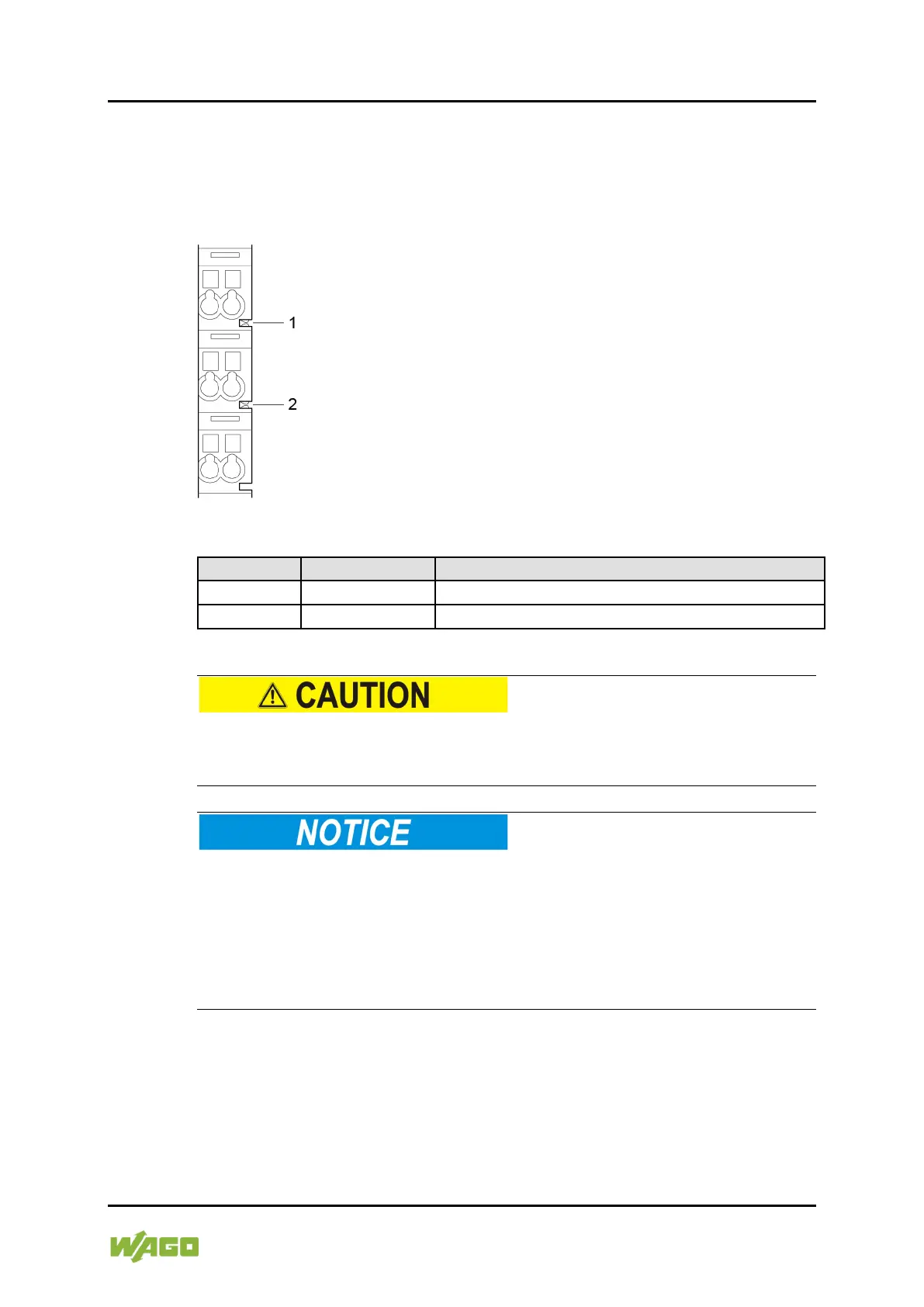

Figure 4: Power Jumper Contacts
Table 4: Legend for Figure “Power Jumper Contacts”
Potential feed-in (Uv) for field supply
Potential feed-in (0 V) for field supply
Risk of injury due to sharp-edged blade contacts!
The blade contacts are sharp-edged. Handle the I/O module carefully to prevent
injury. Do not touch the blade contacts.
Do not exceed maximum values via power contacts!
The maximum current that can flow through the power jumper contacts is 10 A.
The power jumper contacts can be damaged and the permissible operating
temperature can be exceeded by higher current values.
When configuring the system, do not exceed the permissible maximum current
value. If there is a higher power requirement, you must use an additional supply
module to provide the field voltage.
