WAGO I/O SYSTEM 750 XTR Run-time System CODESYS 2.3 265
750-8202/040-000 PFC200 2ETH RS XTR
Manual
Version 1.2.0, valid from FW Version 03.01.07(13)

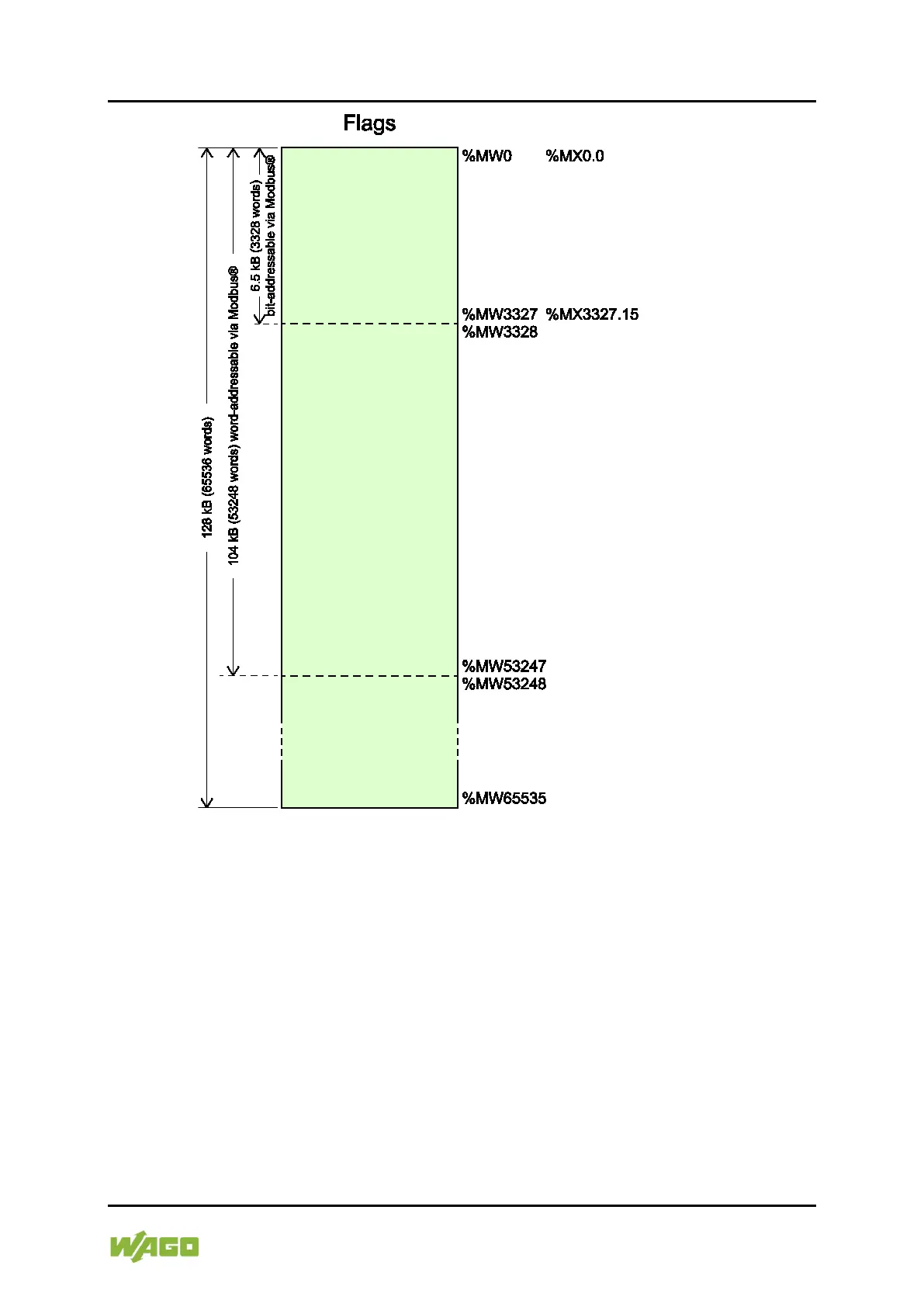

Figure 85: Flag Area
8.6.1 Process Images for I/O Modules Connected to the
Controller
After starting the fieldbus controller, it automatically detects all connected I/O
modules.
The analog input and output data is stored first word by word in the process
image. Subsequent to this, come the digital input and output data bits combined
to form words.
The size and structure of the process image for the I/O modules connected to the
system are described in the appendix.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the WAGO PFC200 2ETH RS XTR and is the answer not in the manual?

WAGO PFC200 2ETH RS XTR Specifications

General IconGeneral
ProcessorARM Cortex-A8
Clock Speed600 MHz
RAM256 MB
Ethernet Ports2
Protection ClassIP20
Power Supply24 V DC
Serial Ports1 (RS-232/RS-485)
Operating Temperature-40°C to +70°C
Programming LanguagesIEC 61131-3
