WAGO PFC200 2ETH RS XTR User Manual

WAGO I/O SYSTEM 750 XTR Device Description 41
750-8202/040-000 PFC200 2ETH RS XTR
Manual
Version 1.2.0, valid from FW Version 03.01.07(13)
3.4.2 Fieldbus/System Indicating Elements

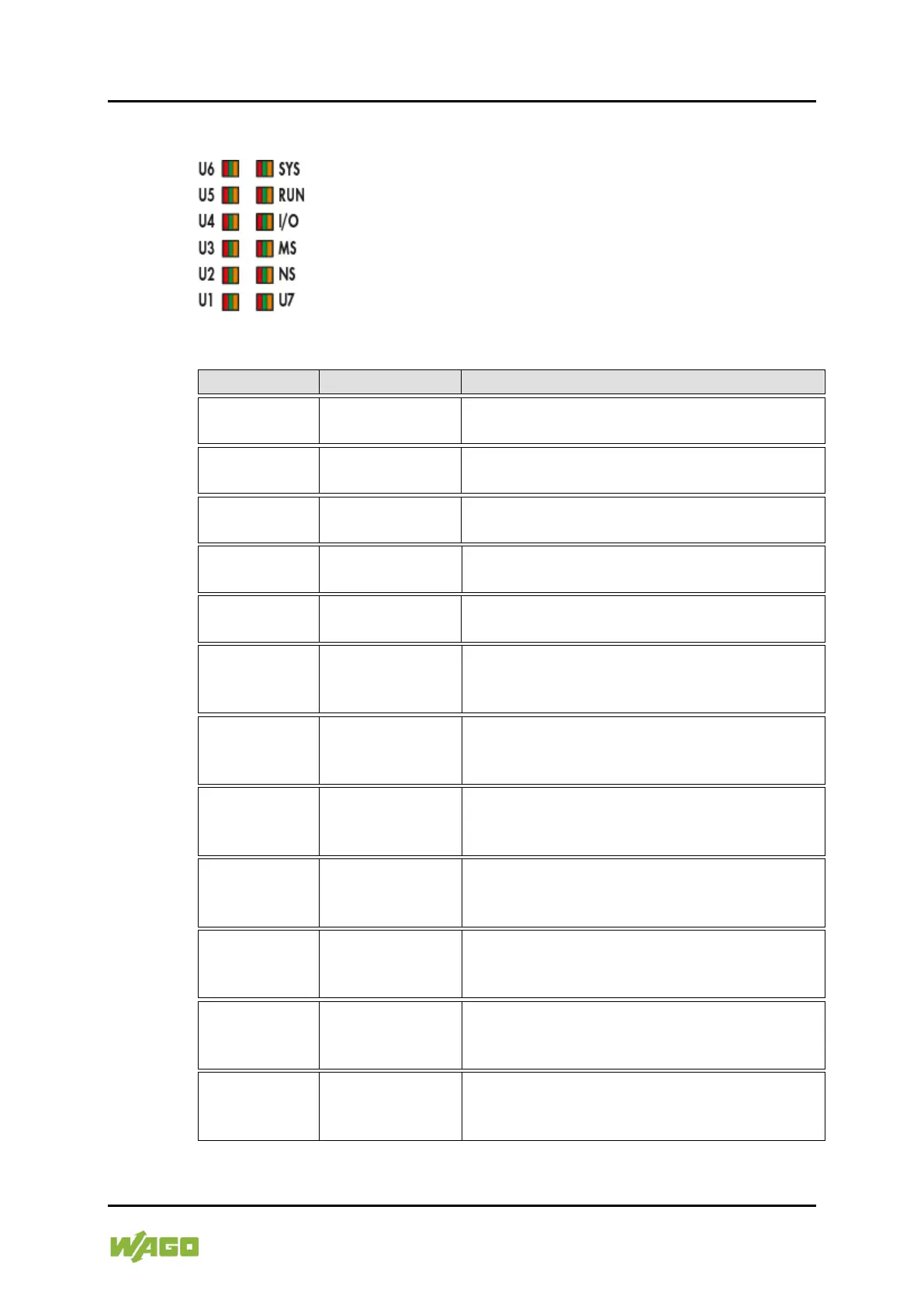

Figure 13: Indicating Elements for Fieldbus/System
Table 11: Legend for Figure “Fieldbus/System Indicating Elements”
Designation
Color
Description
SYS
Red/Green/
Orange/Off
System status
RUN
Red/Green/
Orange/Off
PLC program status
I/O
Red/Green/
Orange/Off
Local bus status
MS
Red/Green/
Orange/Off
Module status
NS
Red/Green/
Orange/Off
Without function
U7
Red/Green/
Orange/Off
User LED 7, programmable using function
blocks from the WAGO libraries to control the
LEDs
U6
Red/Green/
Orange/Off
User LED 6, programmable using function
blocks from the WAGO libraries to control the
LEDs
U5
Red/Green/
Orange/Off
User LED 5, programmable using function
blocks from the WAGO libraries to control the
LEDs
U4
Red/Green/
Orange/Off
User LED 4, programmable using function
blocks from the WAGO libraries to control the
LEDs
U3
Red/Green/
Orange/Off
User LED 3, programmable using function
blocks from the WAGO libraries to control the
LEDs
U2
Red/Green/
Orange/Off
User LED 2, programmable using function
blocks from the WAGO libraries to control the
LEDs
U1
Red/Green/
Orange/Off
User LED 1, programmable using function
blocks from the WAGO libraries to control the
LEDs

WAGO PFC200 2ETH RS XTR Specifications

General

Processor	ARM Cortex-A8
Clock Speed	600 MHz
RAM	256 MB
Ethernet Ports	2
Protection Class	IP20
Power Supply	24 V DC
Serial Ports	1 (RS-232/RS-485)
Operating Temperature	-40°C to +70°C
Programming Languages	IEC 61131-3
Certifications	UL
