Machine Set-up
WP1624
Firewood Processor
30
6. Remove the hitch pins and swing both support legs under
the live deck. Reinsert the hitch pins.
7. Remove the snap lock pins and adjust leg height so the
deck is properly supported. Try to get the deck as level as
possible. Reinsert the pin.
00423

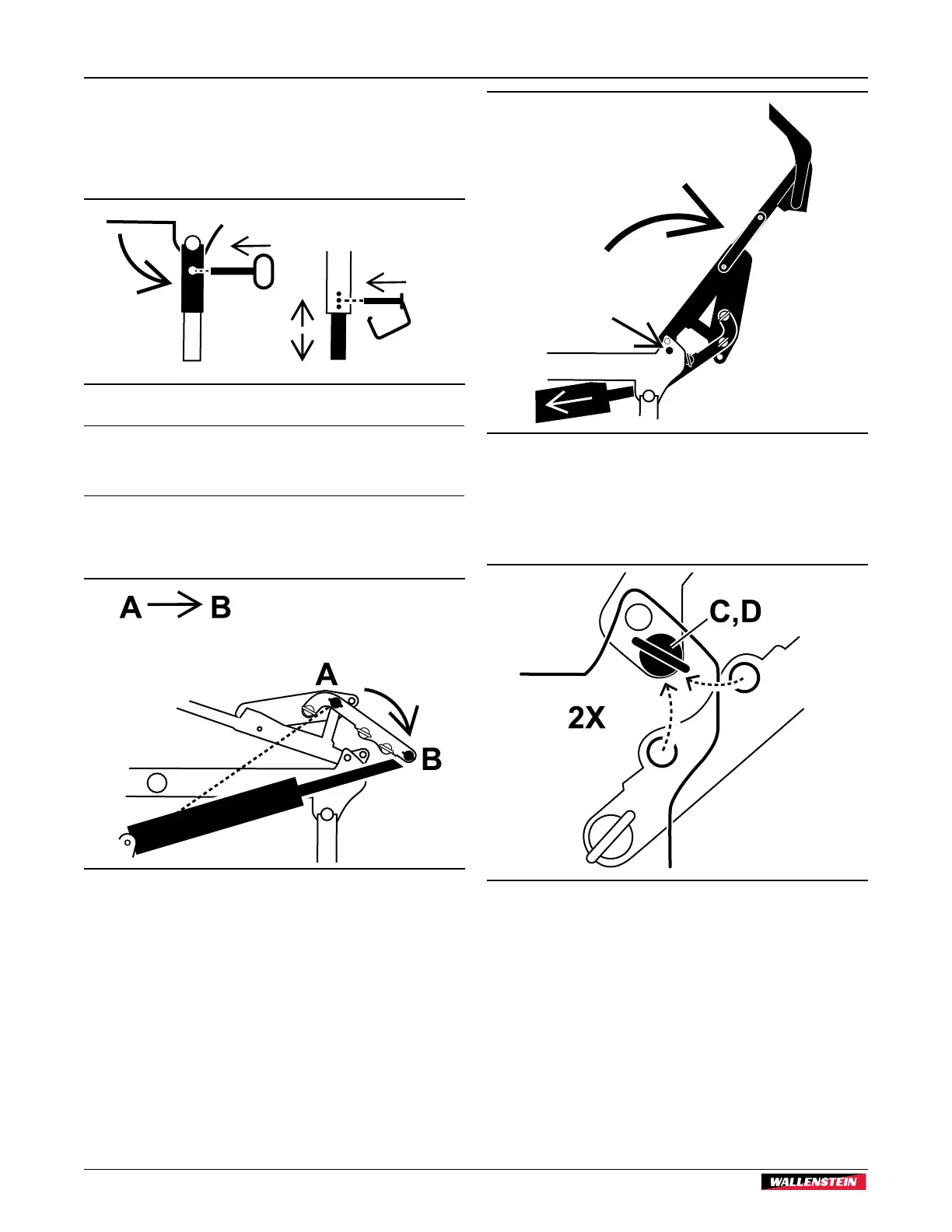

Fig. 24 – Set up Support Legs under the Live Deck
IMPORTANT! The support legs must be in place with hitch
pins installed during operation at all times to support the
deck.
8. Unpin the end of the log lifter cylinder and move it from
position A on the bracket to position B. Reinsert the lynch
pin.
00424
Fig. 25 – Move Cylinder Rod
9. Retract the log lifter cylinder so that the log lifter assembly
rolls over past vertical.
10. Roll the lifter assembly over until the holes in the base
of the lifter arms line up with the holes in the live deck
support.
00425
Fig. 26 – Line up Holes in the Live Deck
11. Remove the two pins (C and D) stored on the bracket
and insert them into the holes in the live deck. These
pins support the log lifter so that the cylinder can be
disconnected.
00426
Fig. 27 – Install Pins C and D
