Waves eMotion LV1 Classic User Guide | Chapter 2: Channel

Window Window

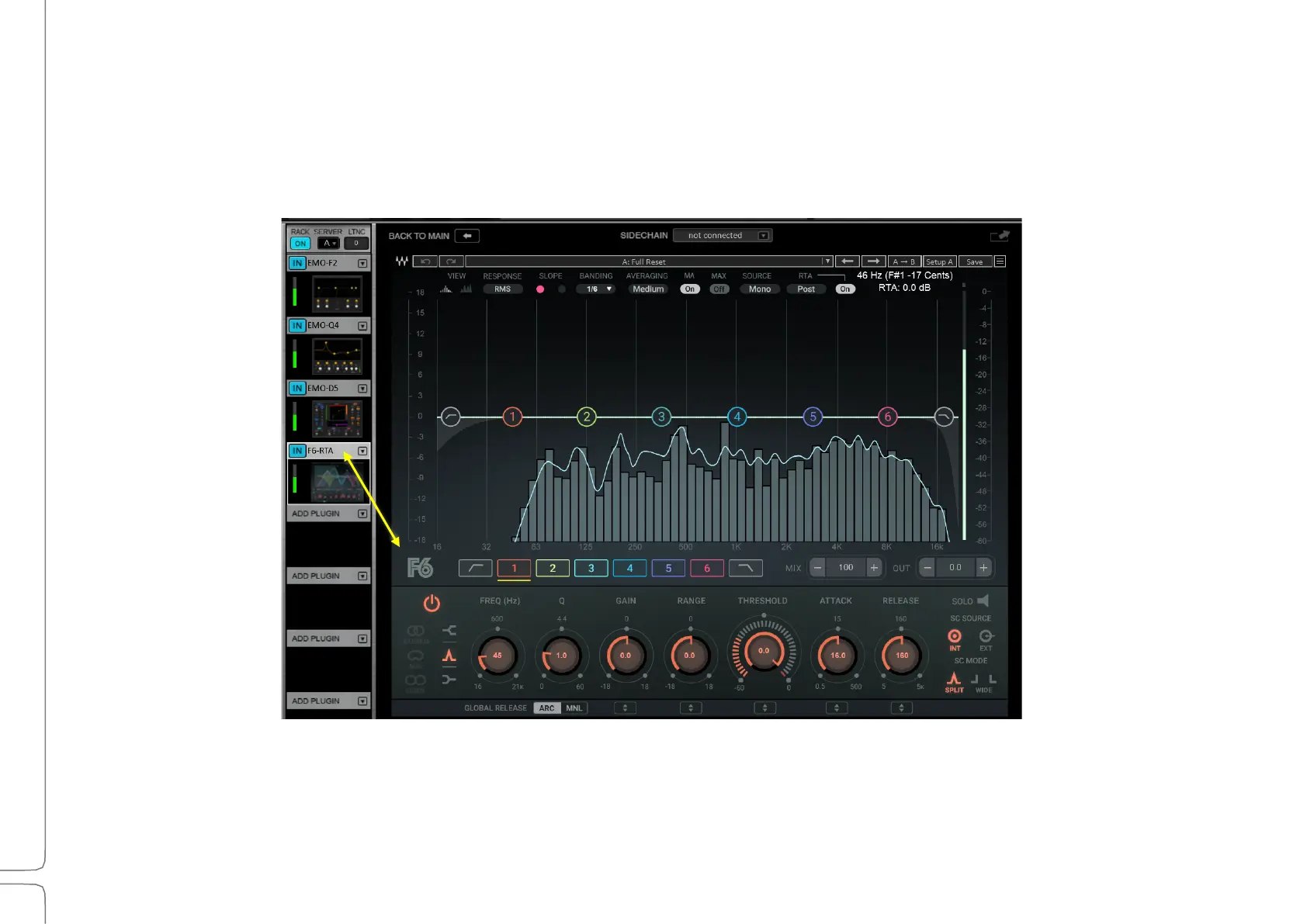

Plugin User Interface

This view displays a plugin’s standard user interface in a floating window and shows all plugin controls. Certain plugin

interface graphics have been modified to fit the Plugin user interface.

To open the plugin user interface, click on its plugin icon in the rack.
