Weidmüller 610 - Technical Data (Continued); Dimension Diagrams

592576780000/00/02-2018
Technical Data

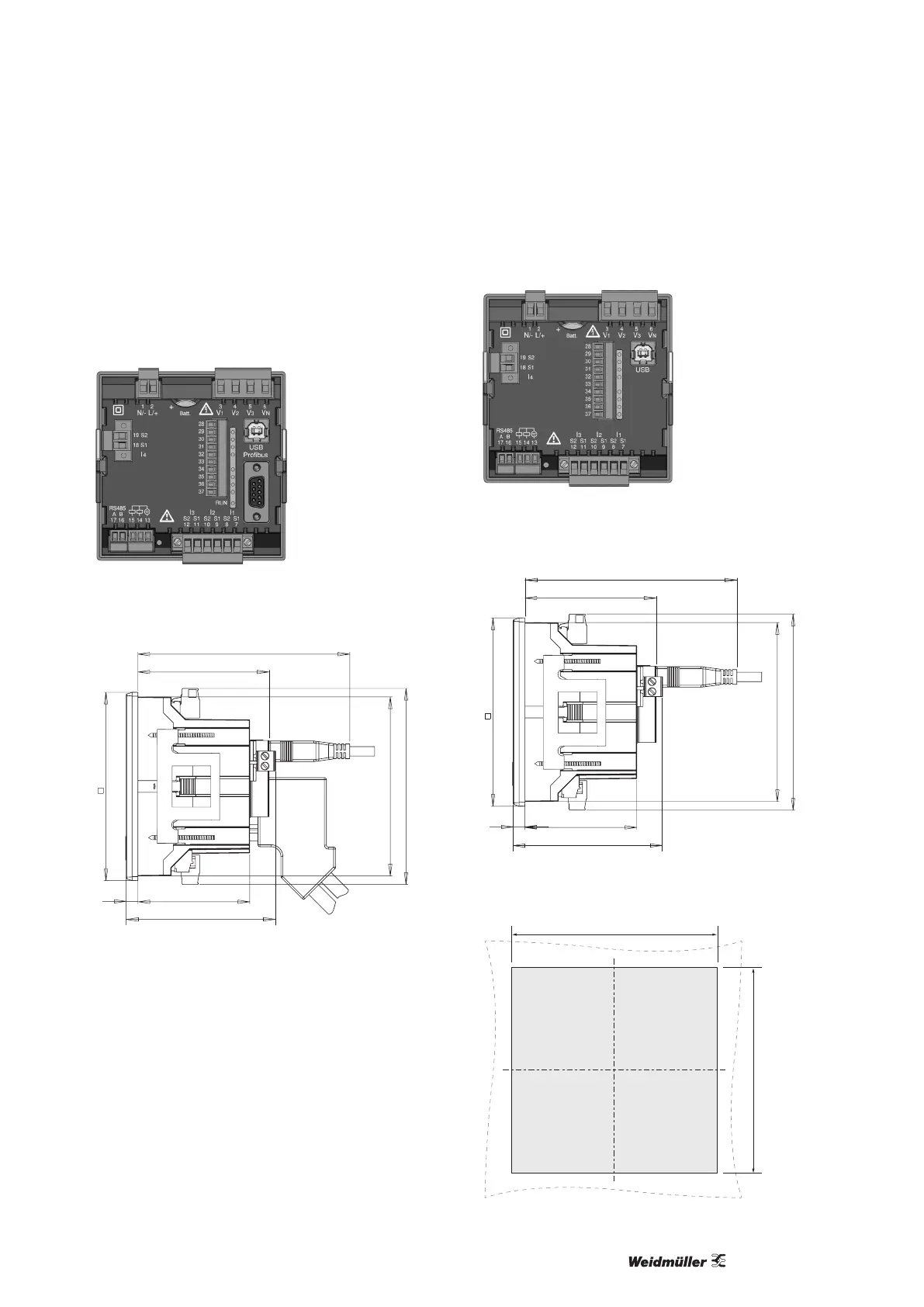

Dimension diagrams
All dimensions in mm.
Rear view of Energy Meter 610-PB
Side view of Energy Meter 610-PB
with USB and Probus connectors inserted
57
6
96
104
ca. 108
91,5
65
78
(Tiefe ohne Stecker)
Rear view of Energy Meter 610
Side view of Energy Meter 610
with USB connector inserted
57
6
96
104
91,5
ca. 108
65
78
(Tiefe ohne Stecker)
Cutout dimensions
92
+0,8
92
+0,8
