Basic functions quick guide
Basic functions quick guide
Adjusting the current transformer
Switch to the programming mode:
• Press button 1 and 2 simultaneously for around 1 second to
switch to the programming mode. The symbols for the program-
ming mode PRG and the current transformer mode CT appear
on the display.
• Press button 1 to conrm the selection.
• The rst digit of the input eld for the primary current is ashing.
Adjusting the primary current
• Press button 2 to change the ashing digit.
• Press button 1 to select the next digit to be changed. The se-
lected digit to be changed is ashing. If the entire number is
ashing, press button 2 to move the decimal point.
Adjusting the secondary current
• Only 1A or 5A can be set as secondary current.
• Press button 1 to select the secondary current.
• Press button 2 to change the ashing digit.
•
Exit programming mode
• Press button 1 and 2 simultaneously for around 1 second to
switch to the display mode.

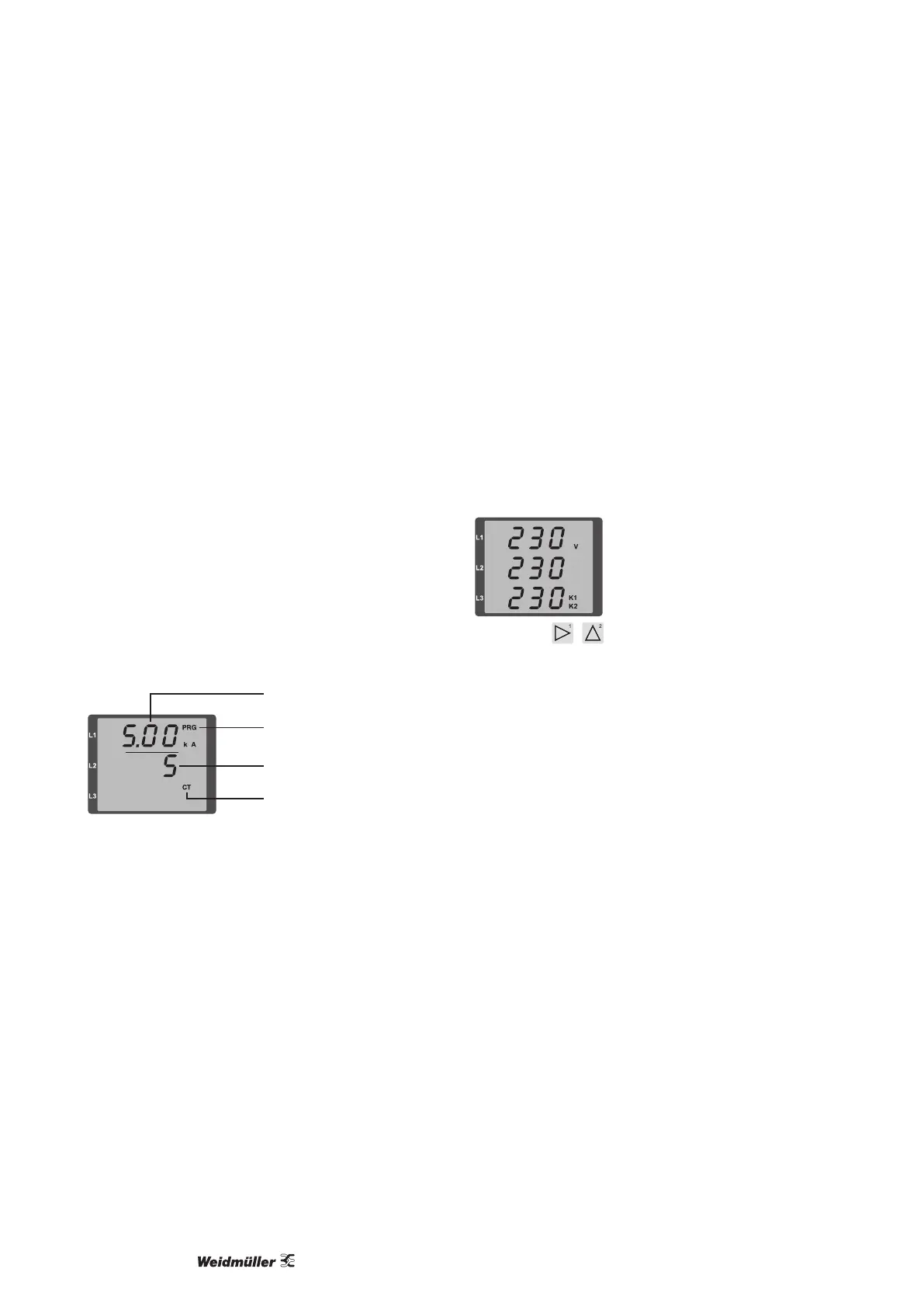

Current transformer symbol
(in the programming mode
only)
Adjusting current transformer,
primary current
Display
Programming mode
Adjusting current trans-
former, secondary current
View measured values
Switch to the display mode:
• If you are still in the programming mode (PRG and CT icons
displayed on the screen), press button 1 and 2 simultaneously
for around 1 second to switch to the display mode.
• A measured value display (e.g. voltage) appears
Button controls
• Press button 2 to change the measured value display for cur-
rent, voltage, power, etc.
• Press button 1 to change the mean values, max. values etc. as-
sociated with the measured value.
