Weidmüller 610 - Connection Example

632576780000/00/02-2018

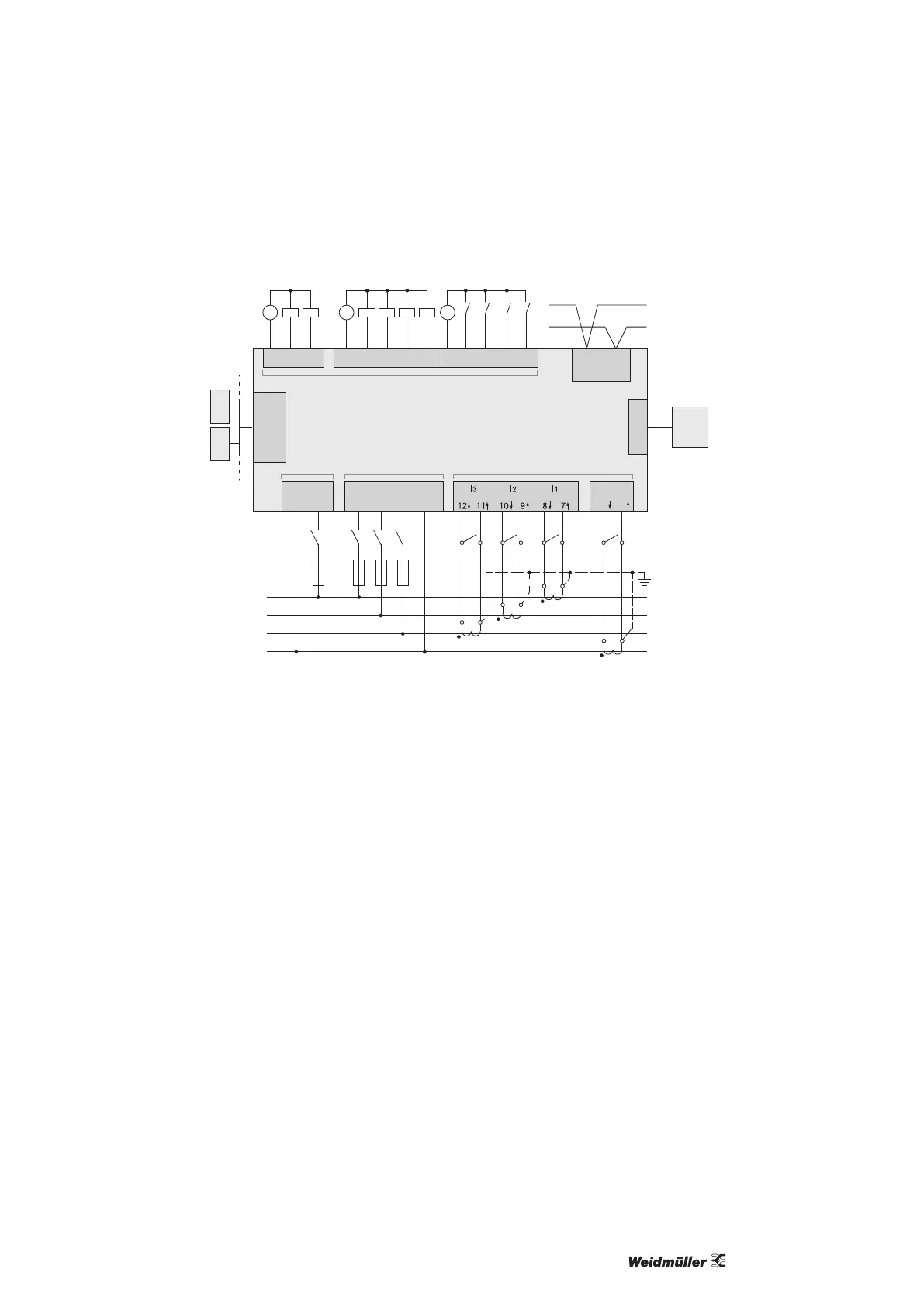

Connection example
Connection example
Digital outputs
Energy Meter 610/610-PB
Measuring voltage Measuring currrentAuxiliary voltage
RS485
16 17
B
A
B A
33 34 35
K3 K4
K5
K6
36 37
=
-
+
28 29 30 31 32
=
Digital inputs
13 14 15
24V
DC
K1 K2
=
-
+
+
-
DSub-9
Profibus
USB
PC
SPSSPS
(Energy Meter 610-PB)
V1
V2
V3
VN
3 4 5 6
1 2
N/- L/+
S2
S1
S2
S2
S1
S1
L1
L2
L3
Consumer
230V/400V 50Hz
N
S2 S1
I4
19 18
S2 S1 S2 S1 S2 S1 S2 S1
1) UL/IEC approved overcurrent protection system (6 A Char. B)
2) UL/IEC approved overcurrent protection system (10 A Class CC / Char. C)
3) Jumpers (external)
