3 Quick Start
This section mainly introduces the operations to quickly use Double-tool CNC
System for machining.
The process for quick start is as follows:
1. Load a tool path
2. Set the workpiece origin
3. Set valve control process
4. Simulate machining
5. Set the loading point for robots
6. Execute automatic machining
If there is no special instruction, the above operations are executed in Operator
interface.
3.1 Load a Tool Path
This operation is used to load a tool path for machining.
Before loading a tool path, prepare a tool path file.

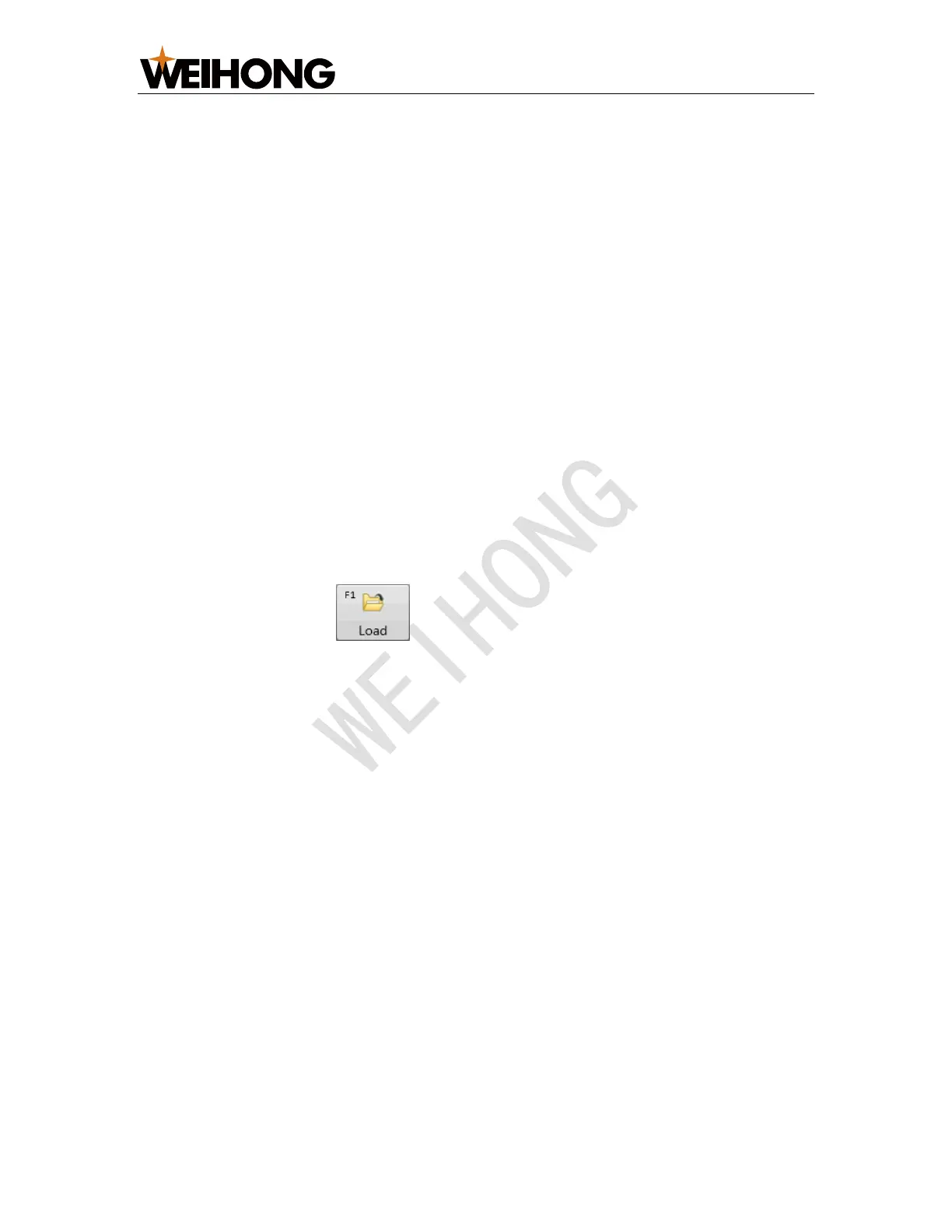

To load a tool path, click and select the target tool path file.
The loaded tool path shows in the function window.
3.2 Set the Workpiece Origin
This operation is used to set the origin of the workpiece coordinate system by
clearing workpiece coordinates of each axis, so as to define the coordinate origin in
the tool path file before machining.
To set the workpiece origin, do the following:
1. Optional: If the target station is not the default one, click Station in the
function control area to switch to the target station.
The system supports station G54 and station G55. The default station is G54.
2. Set X-axis workpiece origin.
3. Set Y-axis workpiece origin.
4. Set Z-axis workpiece origin.
To Next Page
