2. Select the target axis.
3. Double click the target parameter, and enter the value.
According to the machine tool structure, you can do the following in Drive Param
dialog box:
• To import drive parameters that have been set before, click Import.
• To export drive parameters, click Export.
• To show common/all drive parameters, select Show Common / Show All.
• To initialize drive parameters, click Factory Reset.
2.3 Clear Drive Alarms
This operation is used to clear common drive alarms so as to avoid adjusting the
drive manually and improve adjustment efficiency.
To clear the drive alarm, click Machine Tool → Clear Servo Alarm.
2.4 Set Commissioning Parameters
This operation is used to set parameters for commissioning in bus control system.
To set commissioning parameters, do the following:

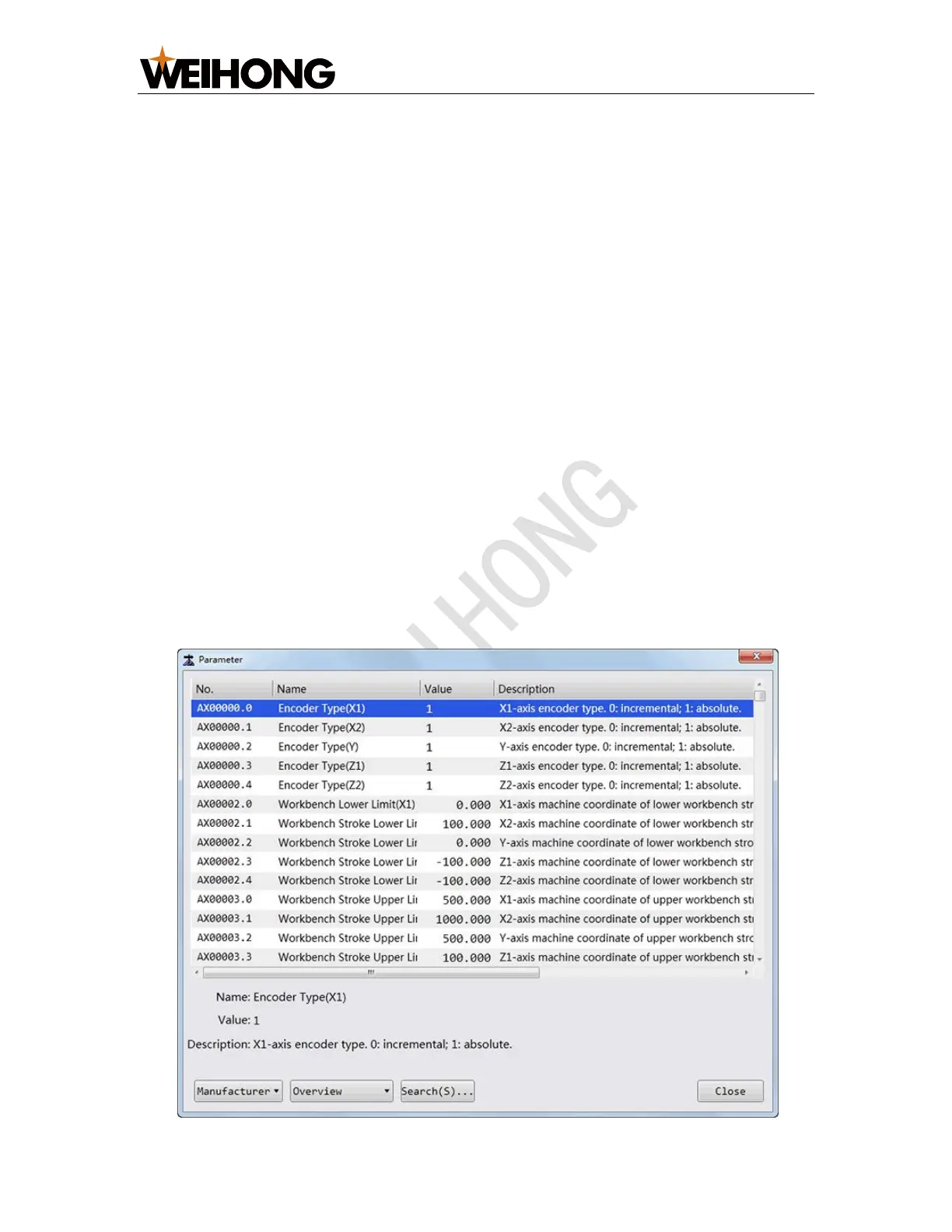

1. Click System → Global Param. Parameter dialog box pops up:
