WEIHONG NC65C User Manual

上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
2 / 36
• LNE (interface of live wire, neutral wire and earth wire): used to connect to
220V power supply.
• USB: used to transmit data with a USB flash disk.
• LAN: transmission rate is 100Mbps.
• Display screen: used to connect to display screen.
• Lambda terminal board: used to connect to Lambda terminal board.

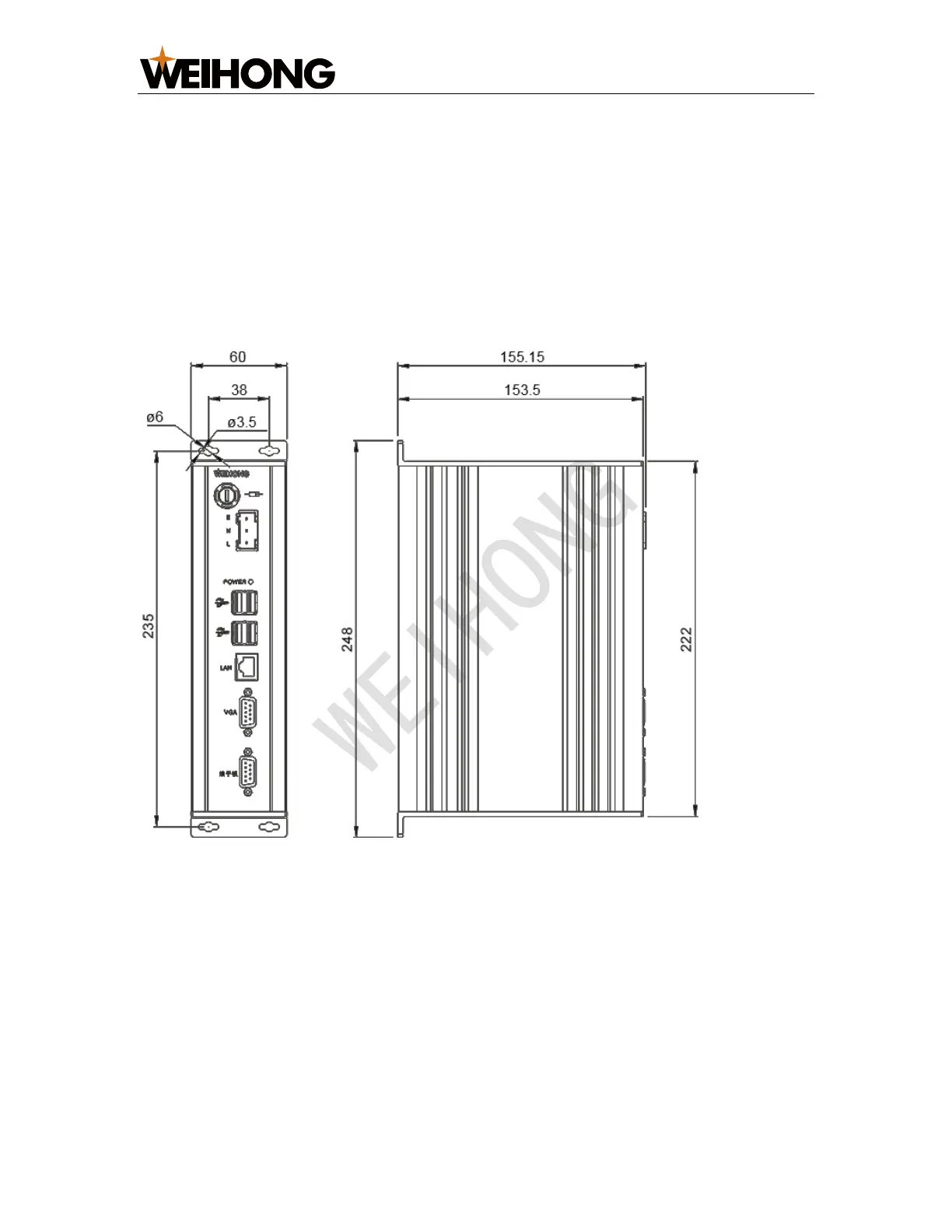

1.1.2 Mounting Dimension
Mounting dimension of NC65C is as follows:
1.1.3 Performance
Performance of NC65C is as follows:
1. Supporting upgrading FPGA program online via the upper control software.
2. Supporting backing up both firmware and program, amending FLASH data, and
verifying and protecting DNA.
3. Supporting Phoenix communication.
4. Supporting PCIE communication.

WEIHONG NC65C Specifications

General

Brand	WEIHONG
Model	NC65C
Category	Control Systems
Language	English
