WEILER E1650 REMIXING TRANSFER VEHICLE
A-1
Dimensions
Specifications
A
APPENDIX A: SPECIFICATIONS

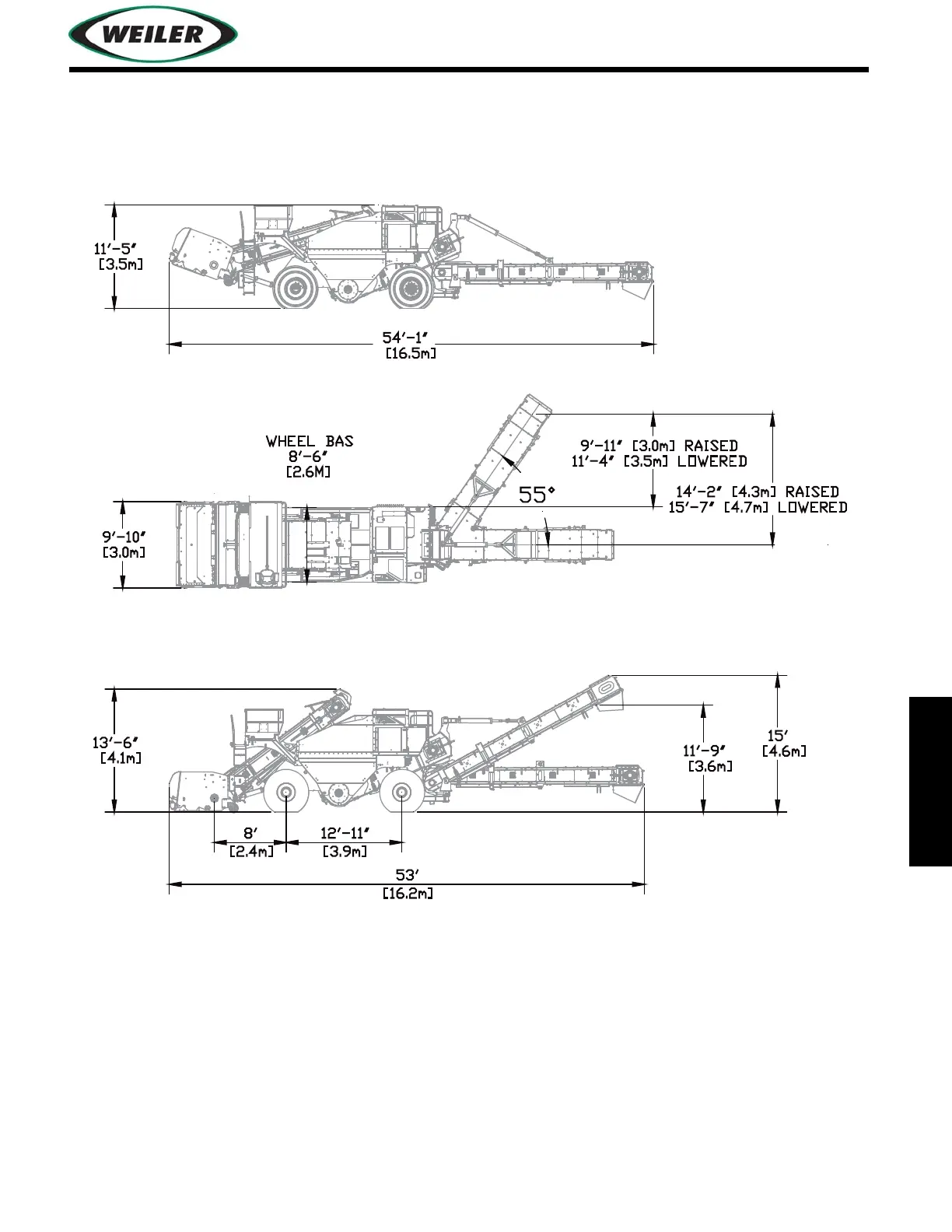

DIMENSIONS
53'
[16.2m]
12'-11"
[3.9m]
8'
[2.4m]
13'-6"
[4.1m]
54'-1"
[16.5m]
11'-5"
[3.5m]
11'-9"
[3.6m]
15'
[4.6m]
55°
9'-10"
[3.0m]
WHEEL BAS
8'-6"
[2.6M]
14'-2" [4.3m] RAISED
15'-7" [4.7m] LOWERED
9'-11" [3.0m] RAISED
11'-4" [3.5m] LOWERED
