Weiler E1650 - Hydraulic Schematic

Schematics
C
WEILER E1650 REMIXING TRANSFER VEHICLE
C-10
Schematics

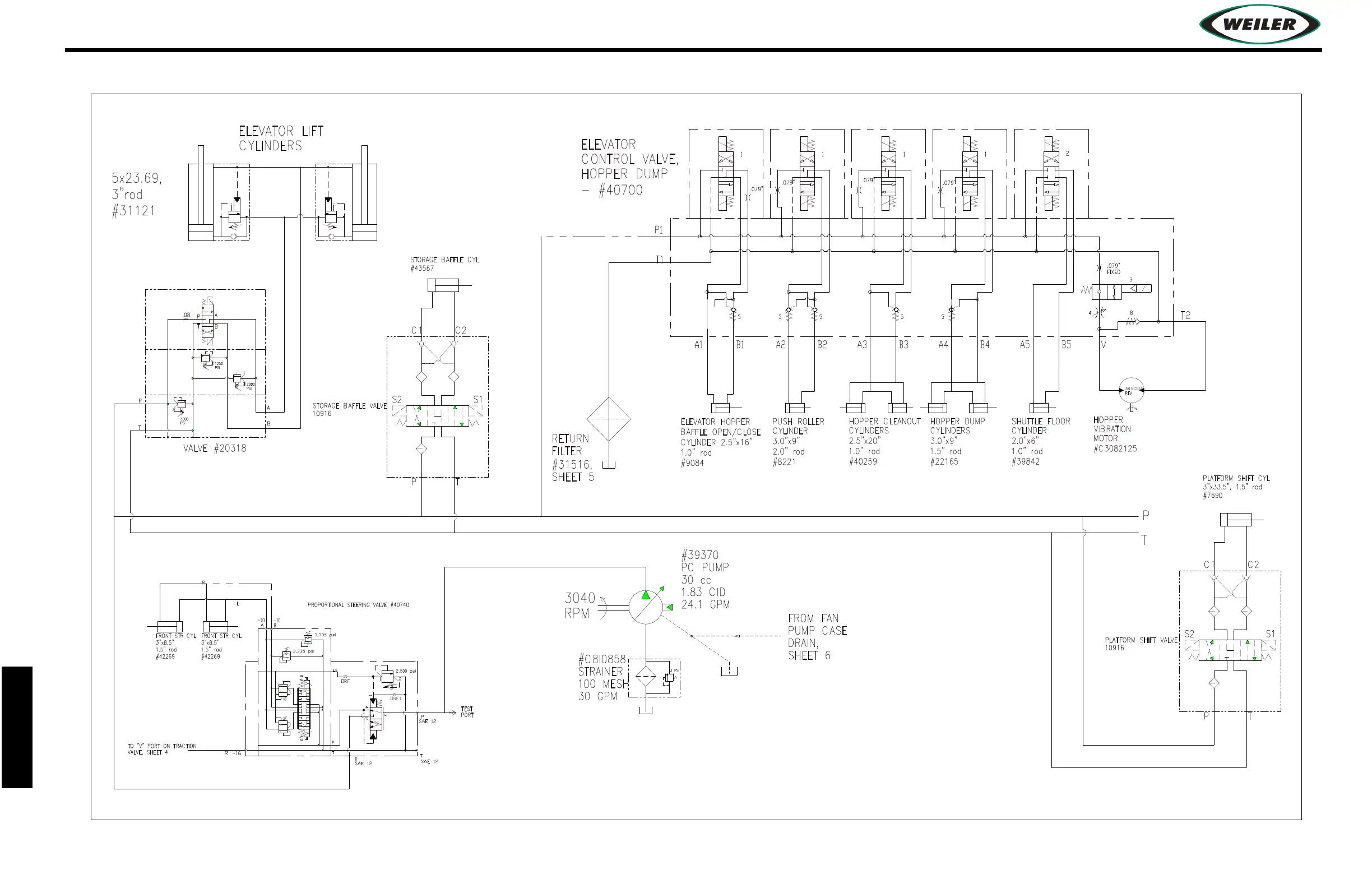

HYDRAULIC SCHEMATIC
5
B1
ELEVATOR HOPPER
BAFFLE OPEN/CLOSE
CYLINDER 2.5"x16"
1.0" rod
#9084
TO "V" PORT ON TRACTION
VALVE, SHEET 4
FRONT STR CYL
3"x8.5"
1.5" rod
#42269
R -16
a
P
T
D
SAE 12
T
SAE 12
3,335 psi
FRONT STR CYL
3"x8.5"
1.5" rod
#42269
b
R
L
-10
A
-10
B
3,335 psi
4
1
2
ORF
LS
ORF1
3
SAE 12
P
2,500 psi
1
2
PROPORTIONAL STEERING VALVE #40740
#C8I0858
STRAINER
100 MESH
30 GPM
TEST
PORT
3040
RPM
3 PSI
#39370
PC PUMP
30 cc
1.83 CID
24.1 GPM
5x23.69,
3"rod
#31121
T
P
ELEVATOR
CONTROL VALVE,
HOPPER DUMP
- #40700
ELEVATOR LIFT
CYLINDERS
VALVE #20318
3000
PSI
1250
PSI
B
A
2000
PSI
.08
T
P
B
A
RETURN
FILTER
#31516,
SHEET 5
A1
T1
P1
T
FROM FAN
PUMP CASE
DRAIN,
SHEET 6
SHUTTLE FLOOR
CYLINDER
2.0"x6"
1.0" rod
#39842
HOPPER CLEANOUT
CYLINDERS
2.5"x20"
1.0" rod
#40259
PUSH ROLLER
CYLINDER
3.0"x9"
2.0" rod
#8221
A2 B2 A3
HOPPER DUMP
CYLINDERS
3.0"x9"
1.5" rod
#22165
B3 A4 B4 A5
5 5
.079"
1
.079"
1
.079"
5 5
1
.079"
1
HOPPER
VIBRATION
MOTOR
#C3082125
P
V B5
38.5CID/
REV
4
8
.079"
FIXED
3
2
T2
TP
STORAGE BAFFLE VALVE
10916
C2C1
S2 S1
STORAGE BAFFLE CYL
#43567
PLATFORM SHIFT VALVE
10916
TP
S2 S1
C2C1
PLATFORM SHIFT CYL
3"x33.5", 1.5" rod
#7690
