WEILER E1650 REMIXING TRANSFER VEHICLE
2-16
Machine Controls
2
Machine Controls
Conveyor Service Control Station

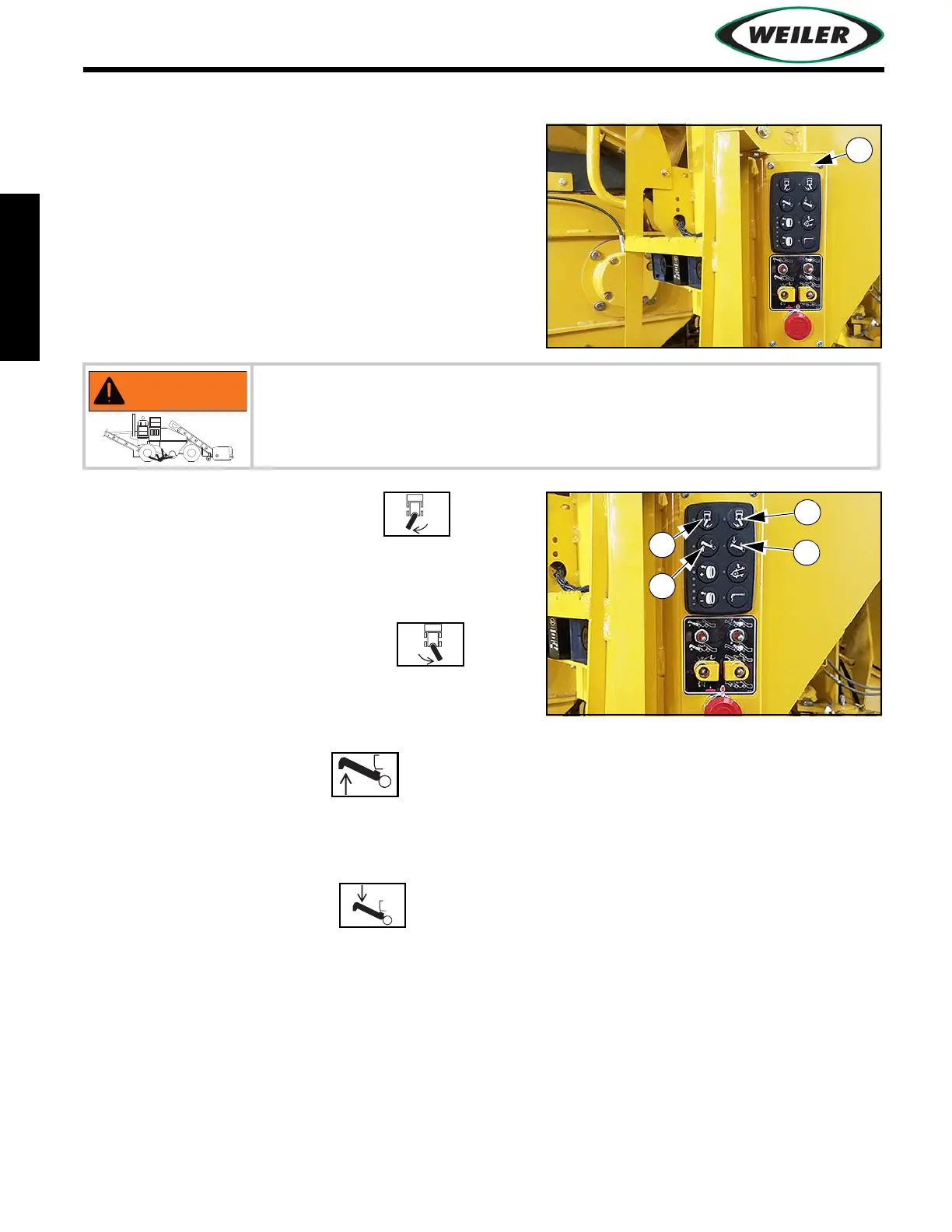

The conveyor service control station (A) is located on
right rear fender near conveyor and is lockable to deter
vandalism.
(1) Conveyor Swing Left Button
Press and hold to swing conveyor left.
(2) Conveyor Swing Right Button
Press and hold to swing conveyor right.
(3) Conveyor Raise Button
Press and hold to raise conveyor.
(4) Conveyor Lower Button
Press and hold to lower conveyor.
WARNING
Runover possible. Machine can crush.
Ensure machine ground drive is stopped and Park Brake is engaged before
using conveyor station controls.
A
2
3
4
1
