20 EN MEDUVENT Standard
WM 67851 01/2021
3 Description
3 Description
3.1 Overview

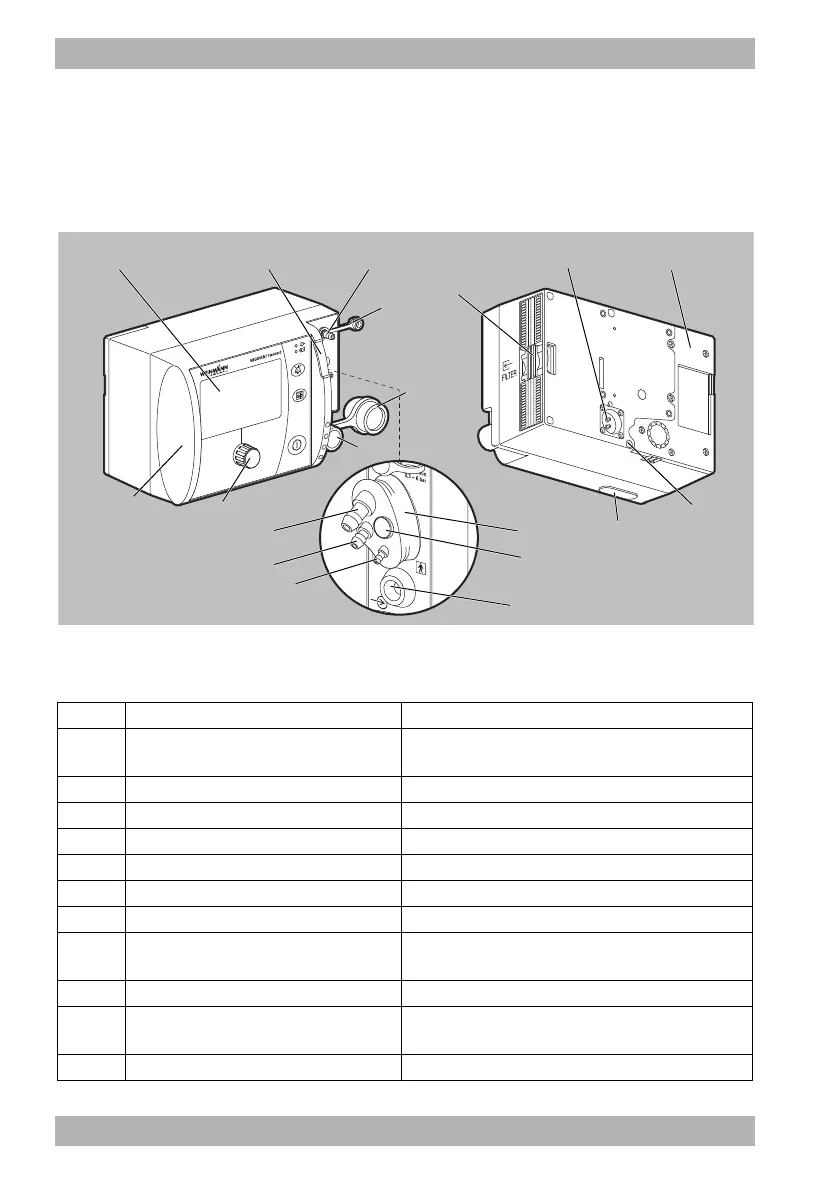

3-1 Device overview
1 2
3
6
8
9
5
10
12
13
14
15
16
17
7
18
4
19
11
No. Designation Description
1 Display
Displays settings and current values (see
“3.3 Symbols in the display”, page 25).
2 Alarm light Displays high-priority alarms visually.
3 Oxygen inlet Used to connect the oxygen supply.
4 Protective cap for oxygen inlet Protects the oxygen inlet when it is not in use.
5 Filter compartment Holds the hygiene filter.
6 Power supply connection Connects the device to the power supply.
7 Battery compartment cover Covers the battery compartment.
8 Security seal
Indicates whether the device has been opened
without authorization.
9 SD card slot with splash guard For inserting an SD card.
10 Measuring circuit connection
Connects the device to the measuring circuit of the
breathing circuit.
11 Protective cap for connection terminal Covers the bore in the measuring circuit connection.
