9 Servicing / Cleaning
Training manual Convotherm 4 121

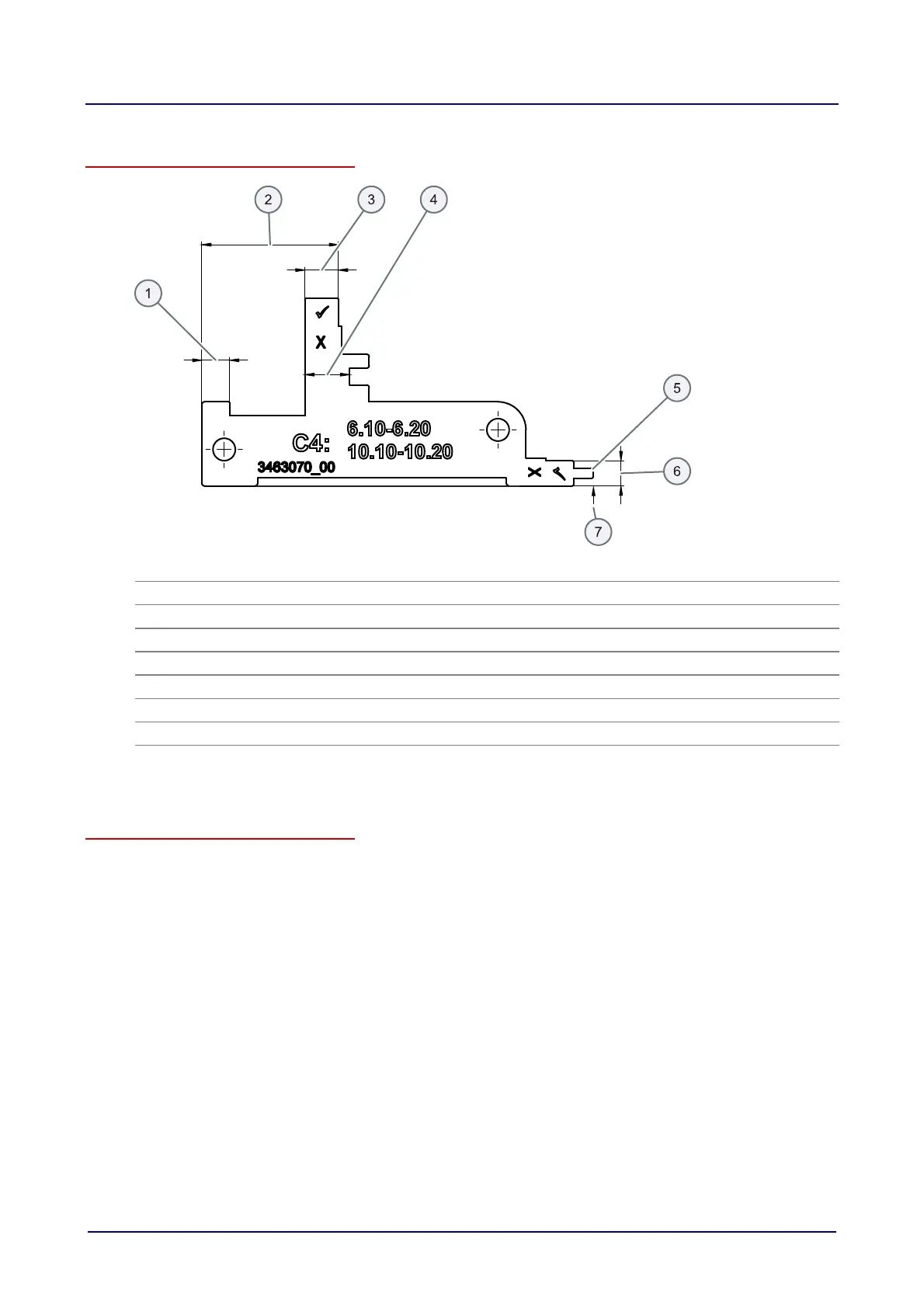

Adjustment gauge for adjusting table-top units
Item Function
1
Catch height
2
Vertical catch offset
3
Gap between door and front section
4
Distance for door contact switch adjustment
5
Safety thermostat reset
6
Door gap on hinge side
7
Horizontal catch offset
8 Door flush with top of appliance
(Not shown: tool laid flat on top cover of appliance)
Requirements
Check that the following requirements have been met:
 The appliance has cooled down.
 The appliance has been disconnected from the power supply and protective measures taken to
ensure the power cannot be switched on again.
