9 Servicing / Cleaning
Training manual Convotherm 4 132

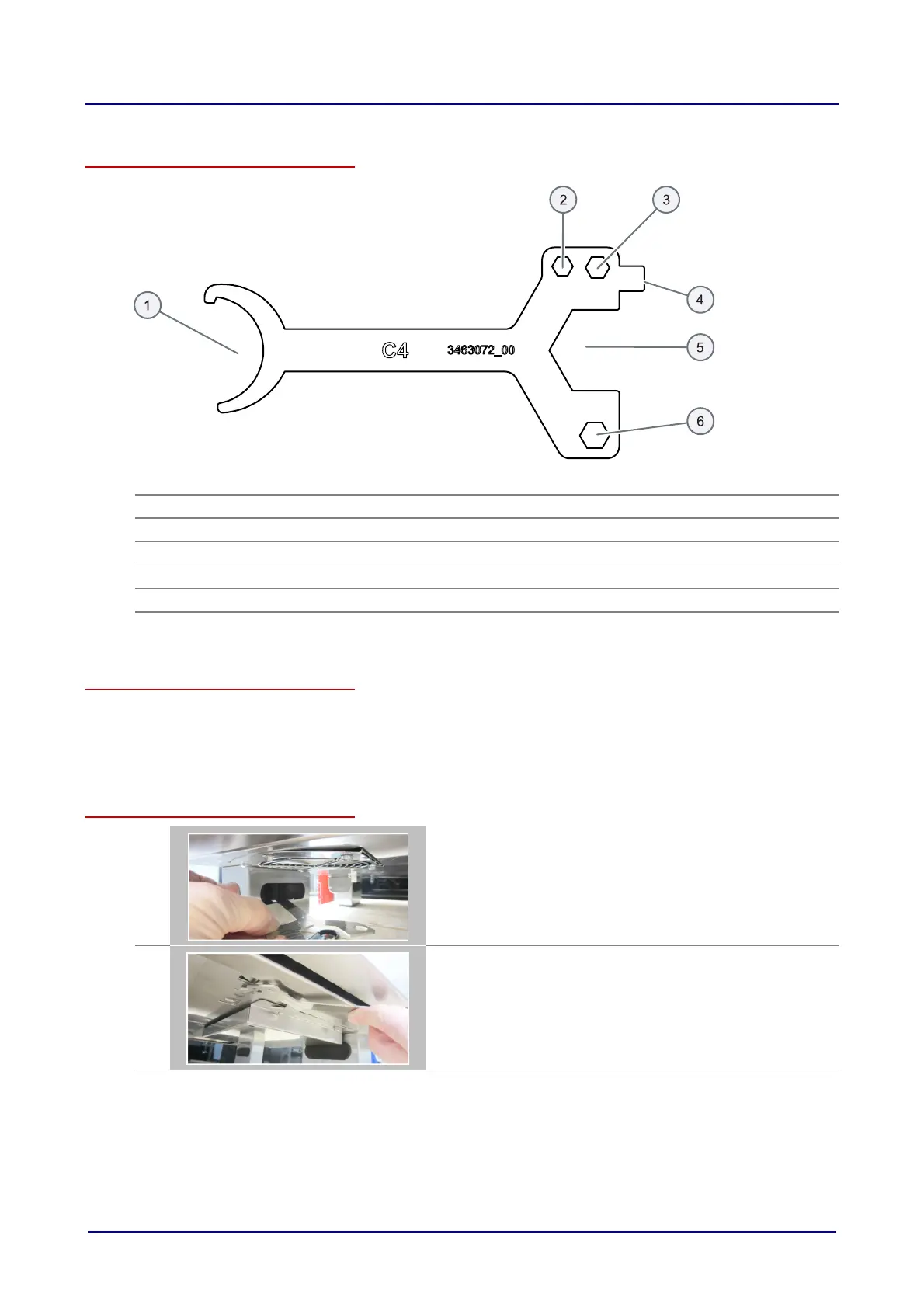

Spanner
Item Function
1
Foot height adjustment for table-top units
2
7 mm (service panel)
3
8 mm (left-hand cover, service panel, collector box cover)
4
Opening/closing the suction panel
5
Foot height adjustment for floor-standing units
6
10 mm (pump cover)
Requirements
Check that the following requirements have been met:
 The appliance has cooled down.
 The appliance has been disconnected from the power supply and protective measures taken to
ensure the power cannot be switched on again.
Examples of use for the spanner
1.
Usage: Foot height adjustment for table-top units (1)
2.
Usage: Undoing/tightening bolts (2, 3, 6)
