Door flush with top of appliance for floor-standing units
1. Follow the procedure for checking that the door is flush with the top of the appliance, as described for the
adjustment gauge for table-top units.
Tightening and undoing the temperature sensor
1.
Disconnect the appliance from the power supply and
take protective measures to ensure the power cannot be
switched on again.
2.
Remove the cover from the appliance base.
3.

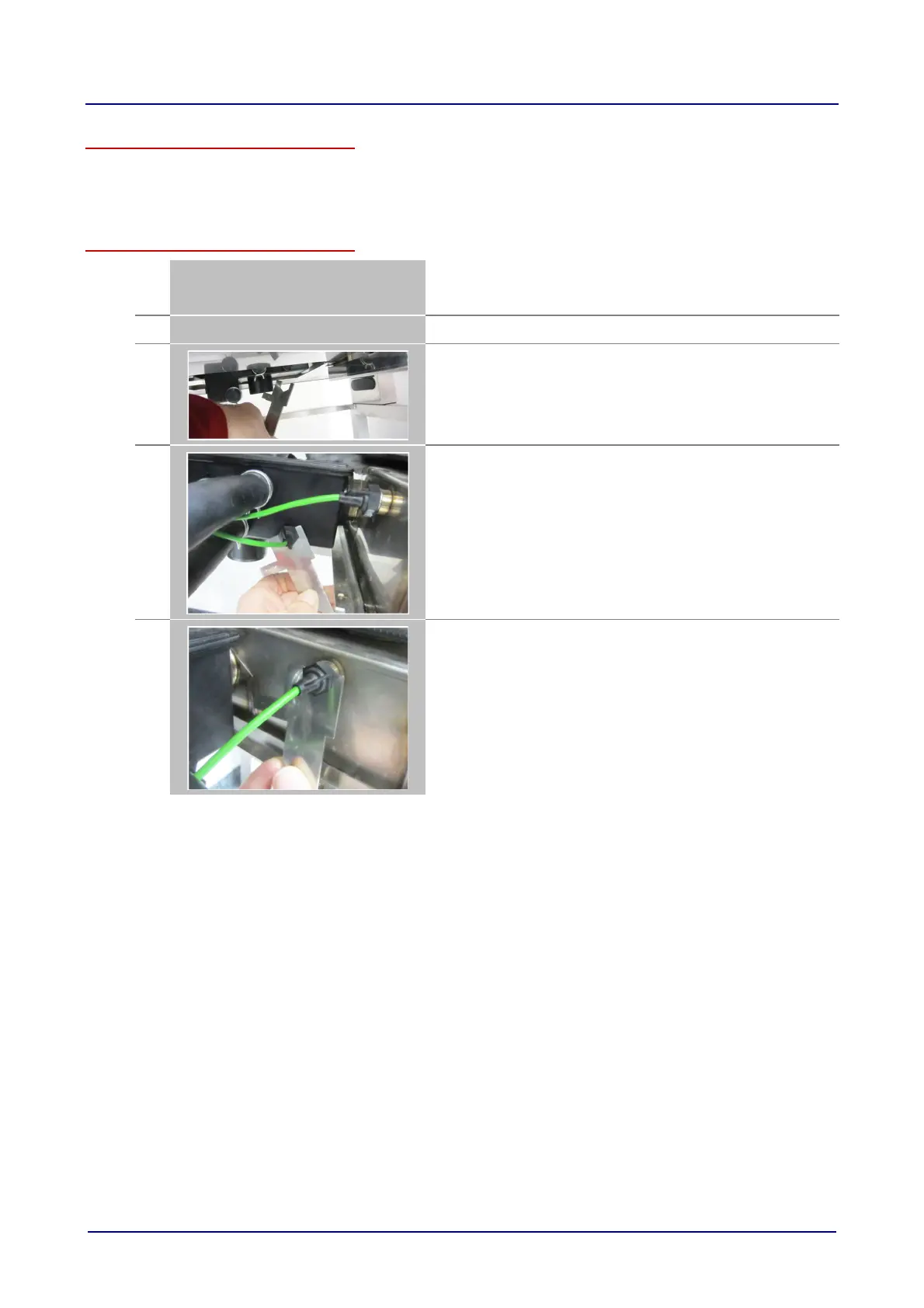

Use the adjustment gauge for floor-standing units as shown in
the illustration. This lets you undo/tighten the temperature sen-
sor, which is difficult to get at.
4.
Use the adjustment gauge for floor-standing units as shown in
the illustration. This lets you undo/tighten the temperature sen-
sor for the drain box.
This picture has been taken in an appliancethat has been cut
open, to give a better view.
5.
Use the adjustment gauge for floor-standing units as shown in
the illustration. This lets you undo/tighten the temperature sen-
sor for the collector box.
This picture has been taken in an appliancethat has been cut
open, to give a better view.
