4 Operating principles
Training manual Convotherm 4 51

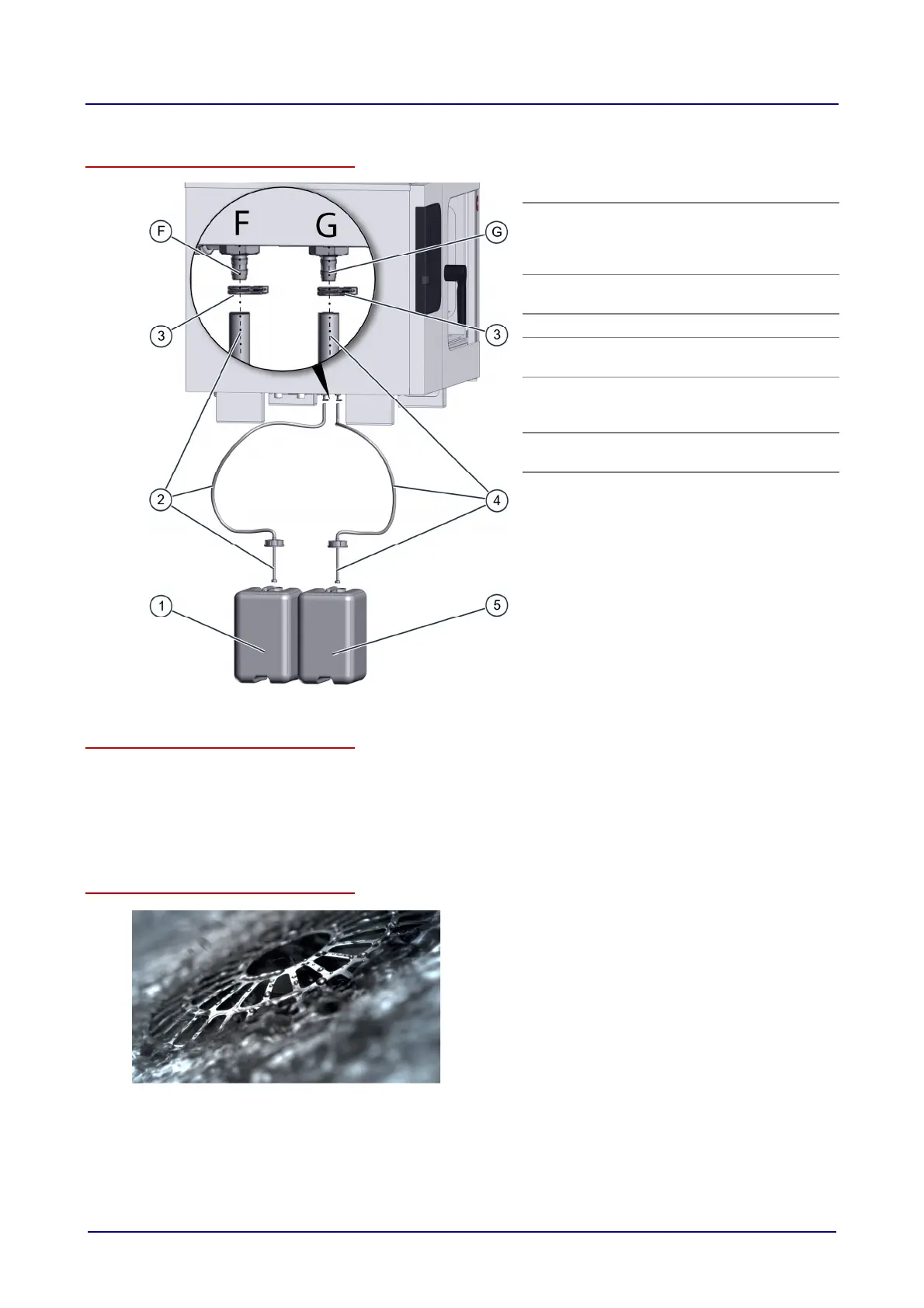

Layout of the fully automatic oven cleaning using connected cannisters
Item Name Color coding
1 Canister containing
ConvoCare rinse aid
(ready-to-use solution in
defined mixing ratio)
green (label)
2 Delivery tube for rinse-aid
suction nozzle
green (tube)
3
D10 wire clip -
4 Extractor tube for cleaning
agent suction nozzle
red (tube)
5 Canister containing
ConvoClean new or
ConvoClean forte
red (label)
F Appliance connector for
rinse aid supply
green (letter-
ing)
G Appliance connector for
cleaning agent supply
red (lettering)
Installation location for the cleaning-agent and rinse aid canisters
Install the canisters as follows:
 The canisters should be located for easy access beside the appliance on a flat surface.
 The canisters must not sit above the level of the surface on which the appliance stands.
 The level of the surface on which the canister sits must not lie more than 1 meter below the tube
connections on the appliance.
Cooking chamber mesh in appliances fitted with single-measure dispensing
