133
eikon e1s
Service and repair guide
4.
Open the appliance door to replace the green 2mm spacers with red 4mm spacers and close the door.
5.
Slacken the pivot screw using a M7 hex socket wrench.
6.
Release the adjusting screws and move the backplate until microswitch SW2 just activates. Then secure all screws.
7.
Remove the spacers, then open and close the appliance door 5-10 times.
Important checks

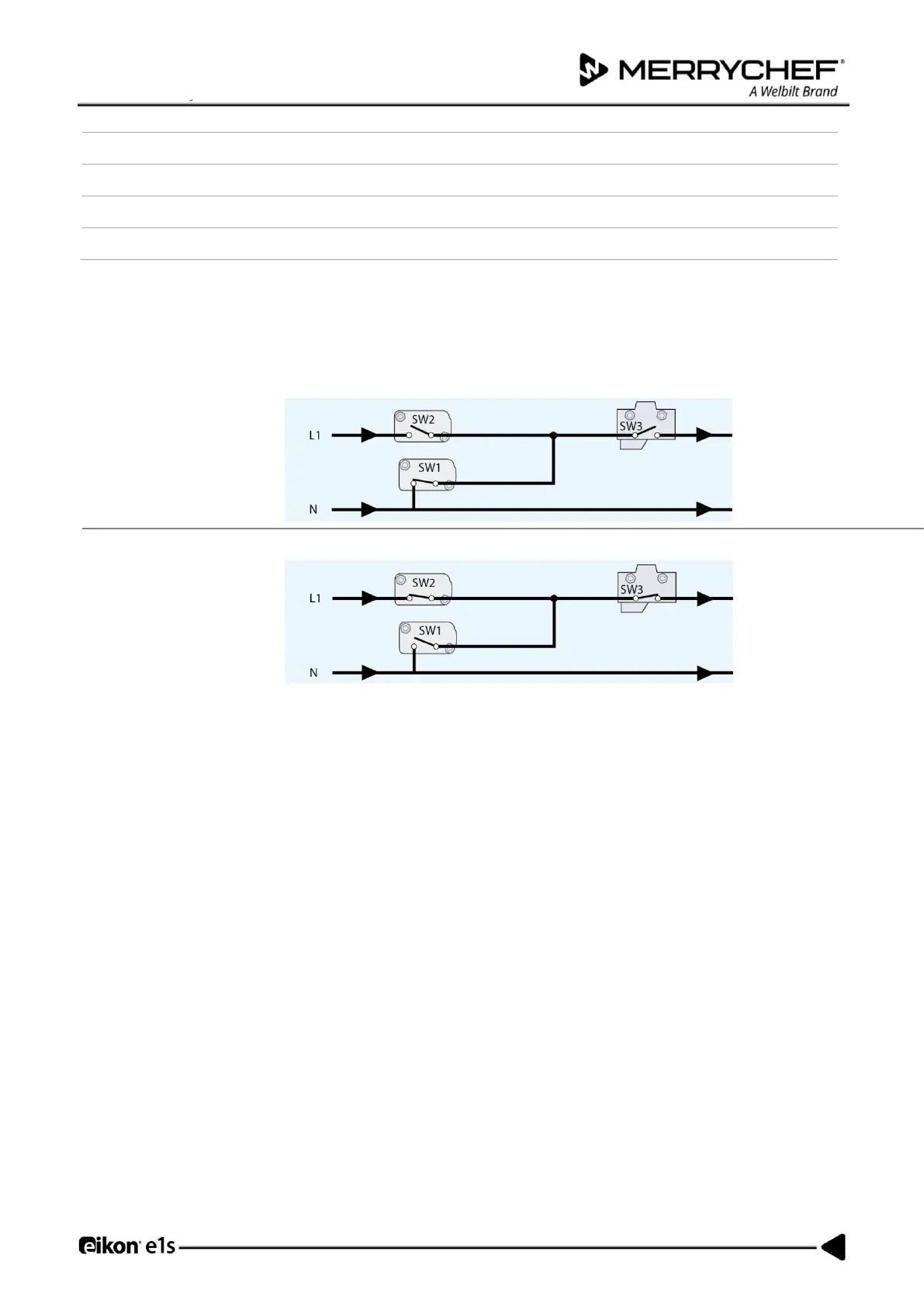

Check if the switches operate in the following sequence, as microswitch SW3 must switch the load current.
Closing the door:
SW1 opens first
SW2 closes second
SW3 closes third
oven door open
Opening the door:
SW3 opens first
SW2 opens second
SW1 closes third
oven door closed
