3G. Circuit boards and diagrams

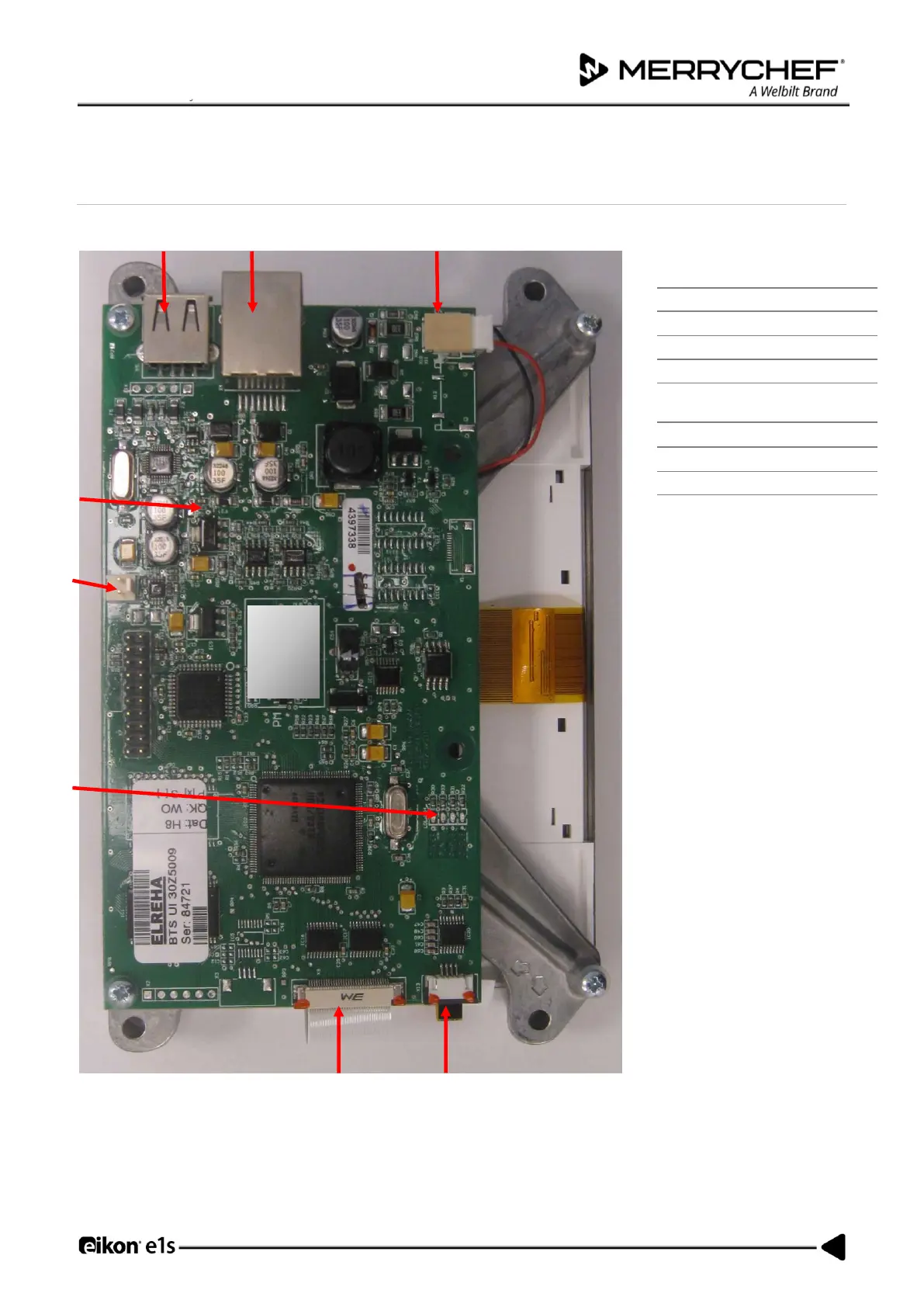

QTS circuit board assembly
Item
Name
1
LD5
2
Power, Run, P-Bus, C-Bus
3
X6 – speaker
4
X5 – USB socket
5
X4 – Communications to
SRB
6
X11 – Screen backlight
7
X13 – Touch pad
8
X9 – Display screen PCB
PM
Module
①
③
②
⑧ ⑦
④ ⑤ ⑥
